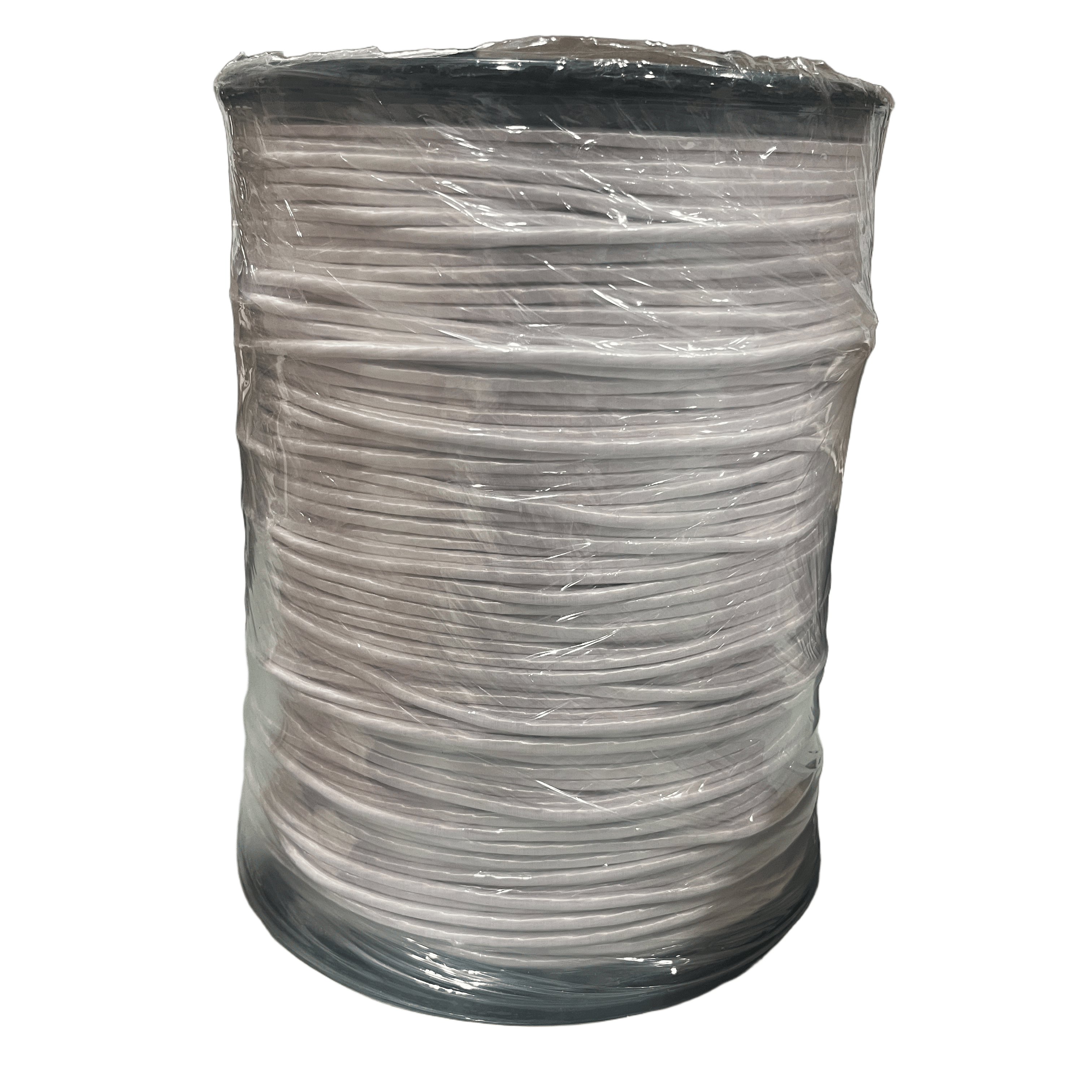

Multiple copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer

Multiple copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer
Multiple copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer
Multiple copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer
Informasi Dasar
Tempat asal: Cina
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 20kg
Harga: Bisa dinegosiasikan
Kemasan rincian: Kumparan dengan karton
Waktu pengiriman: 15 hari kerja
Syarat-syarat pembayaran: T/T/Paypal
Menyediakan kemampuan: Penuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0,1 mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
helai: 900 Tegangan Kerusakan: Minimal 1100
Bahan penutup: Nilon Kata Kunci: Beberapa Kabel Litz tembaga 0.1mm*900 Nilon Melayani Kawat Litz Untuk Transformator
Menyoroti:

copper Litz wire for transformer

,

0.1mm nylon serving Litz wire

,

multiple strand Litz wire

Deskripsi Produk

Multiple Copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer
High-performance multiple copper Litz wire featuring 0.1mm*900 strands with nylon serving, specifically engineered for transformer applications requiring superior high-frequency performance and reliability.
Applications
Transformer windings
Automotive ignition coils
Medical device coils (MRI power supplies)
Aerospace actuators and solenoids
High-reliability custom magnetics
Switch mode power supplies (SMPS)
Inductive charging systems
Technical Specifications
Item No. Diameter of Single Wire (mm) Conductor Diameter (mm) OD (mm) Resistance (Ω/m) Breakdown Voltage (V) Pitch
Tech Requirement 0.107-0.125 0.10±0.003 Max. 4.54 ≤0.002646 ≥1100 65±10
Sample 1 0.110-0.113 0.098-0.10 4.05-4.51 0.002393 2800 √
Multiple copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
