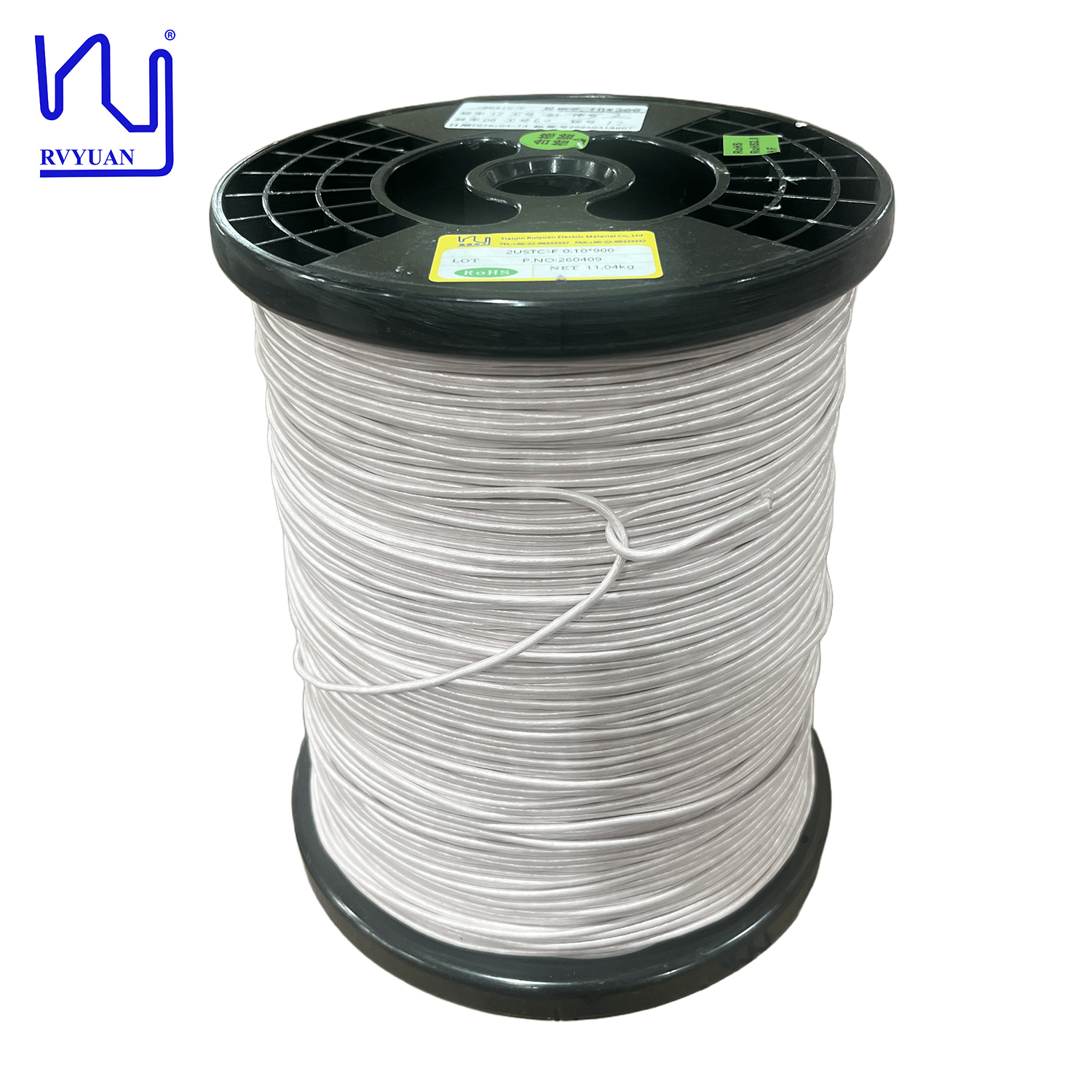

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
Informasi Dasar
Tempat asal: Cina
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 50kg
Harga: Bisa dinegosiasikan
Kemasan rincian: Kumparan dengan karton
Waktu pengiriman: 15 hari kerja
Syarat-syarat pembayaran: T/T/Paypal
Menyediakan kemampuan: Penuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0,1 mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
helai: 300 Tegangan Kerusakan: Minimal 1100
Bahan penutup: Nilon Kata Kunci: 0.1mm Kawat Frekuensi Tinggi Kawat Magnet Berenamel Kawat Litz Tembaga Tertutup Sutra
Menyoroti:

0.1mm enameled magnet wire

,

high frequency Litz wire

,

silk covered copper wire

Deskripsi Produk

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
This silk covered litz wire features a maximum overall diameter of 2.65 mm and a minimum withstand voltage of 1100 V. We support small-batch customization with a minimum order quantity of 20 kg, making it ideal for prototype development or specialized production runs.
Key Features
  • High frequency performance for specialized applications
  • Silk covered construction for enhanced durability
  • Minimum withstand voltage: 1100V
  • Maximum overall diameter: 2.65mm
  • Small-batch customization available
  • Minimum order quantity: 20kg
Technical Specifications
Parameter Technical Requirement Sample 1 Sample 2
Outer diameter of single wire (mm) 0.107-0.125 0.110 0.113
Conductor diameter (mm) 0.10±0.003 0.098 0.100
Overall diameter (mm) Max. 2.65 2.28 2.38
Resistance Ω/m (20℃) ≤0.007937 0.007391 0.007400
Breakdown voltage (V) ≥1100 2500 2800
Pitch 47±3 √ √
Pinhole test (faults/6m) 69 faults/6m 18 14
Solderability Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue √ √
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
