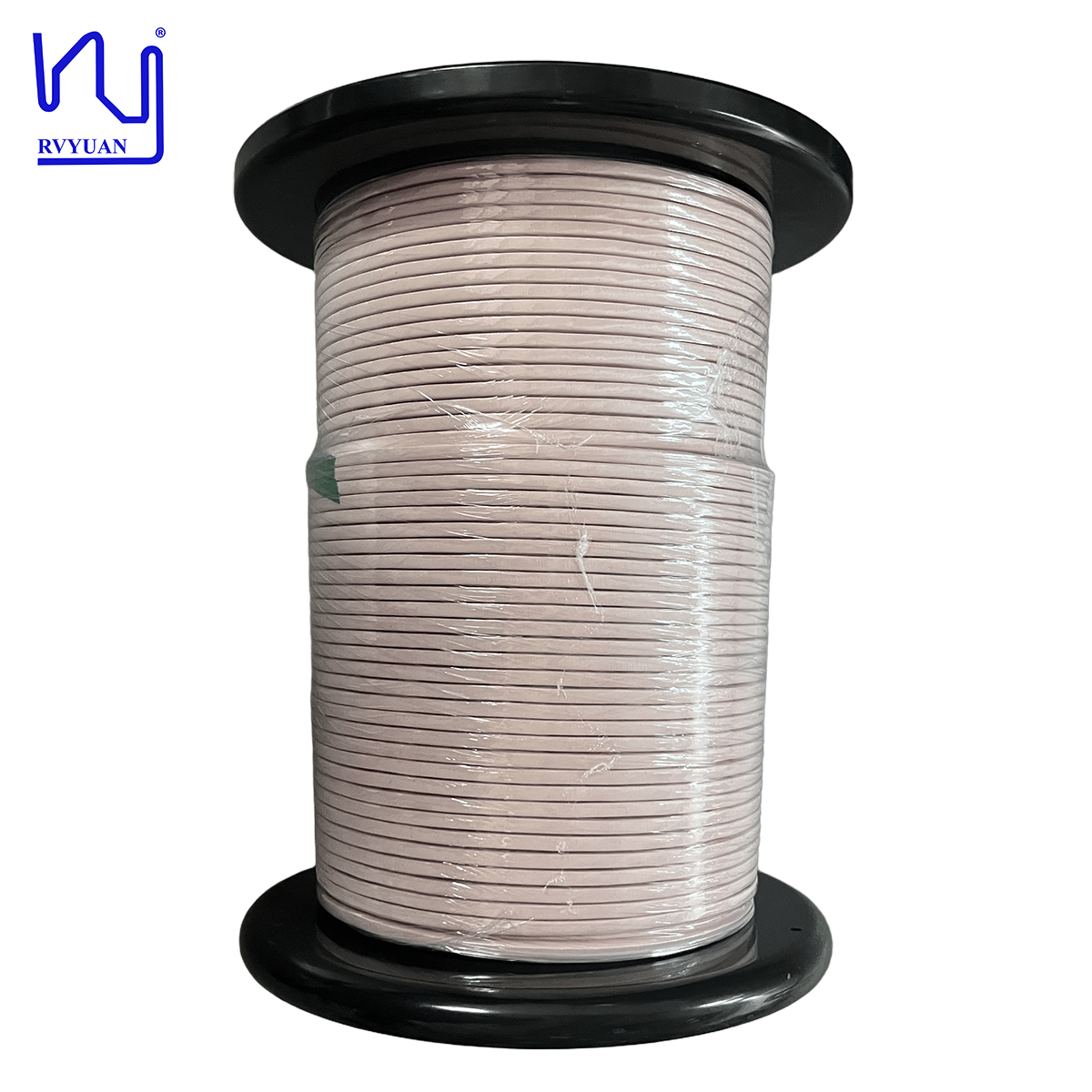

0.05mmx4875 Rectanglar copper Silk Covered Litz Wire For Transformer

Informasi Dasar

Tempat asal:	Cina
Nama merek:	RVYUAN
Sertifikasi:	ISO9001/ISO14001 /UL/SGS
Nomor model:	USTC

Kuantitas min Order:	20kg
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kumparan dengan karton
Waktu pengiriman:	15 hari kerja
Syarat-syarat pembayaran:	T/T/Paypal
Menyediakan kemampuan:	Penuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Diameter:	0,05mm	Suhu:	155
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO	Konduktor:	Tembaga
helai:	4875	Tegangan Kerusakan:	Minimal 500
Bahan penutup:	Nilon	Kata Kunci:	0,05mmx4875 Kawat Litz Tertutup Sutra Tembaga Persegi Panjang Untuk Transformator
Menyoroti:	rectangular copper litz wire , silk covered litz wire , transformer litz wire

Deskripsi Produk

0.05mm x 4875 Rectangular Copper Silk Covered Litz Wire For Transformer

Product Overview

This flat nylon serving litz wire is specifically designed for use in transformer windings. It is ideal for high-frequency transformers used in power electronics, such as those found in electric vehicle chargers, renewable energy systems, and switching power supplies. By reducing AC losses and enhancing thermal performance, this wire contributes to higher efficiency, reliability, and compactness in advanced transformer designs.

Technical Specifications

Type Conductor diameter*Strand number	2USTC-H 0.054875(4.54.4)
Single wire (strand) conductor diameter (mm)	0.050±0.003
Overall diameter (mm)	0.055-0.069
Thermal Class (°C)	180

Strands Construction

Strands number	First time	39
	Second time	39×5
	Third time	39×5×5
	Fourth time	39×5×5×5

Pitch Specifications

Pitch (mm)	First time	16±8
	Second time	25±10
	Third time	35±10
	Fourth time	65±10
Bunching direction	S/S/S/S

Insulation Layer

Material type	Nylon
Material specs (mm×mm or D)	/
Times of Wrapping	1
Overlap (%) or thickness (mm), mini	0.045
Wrapping direction	Z

Characteristics

Width (mm)	4.5±0.2
Thickness (mm)	4.4±0.2
Max resistance (Ω/Km at 20°C)	2.227
Breakdown voltage Mini (V)	500

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
