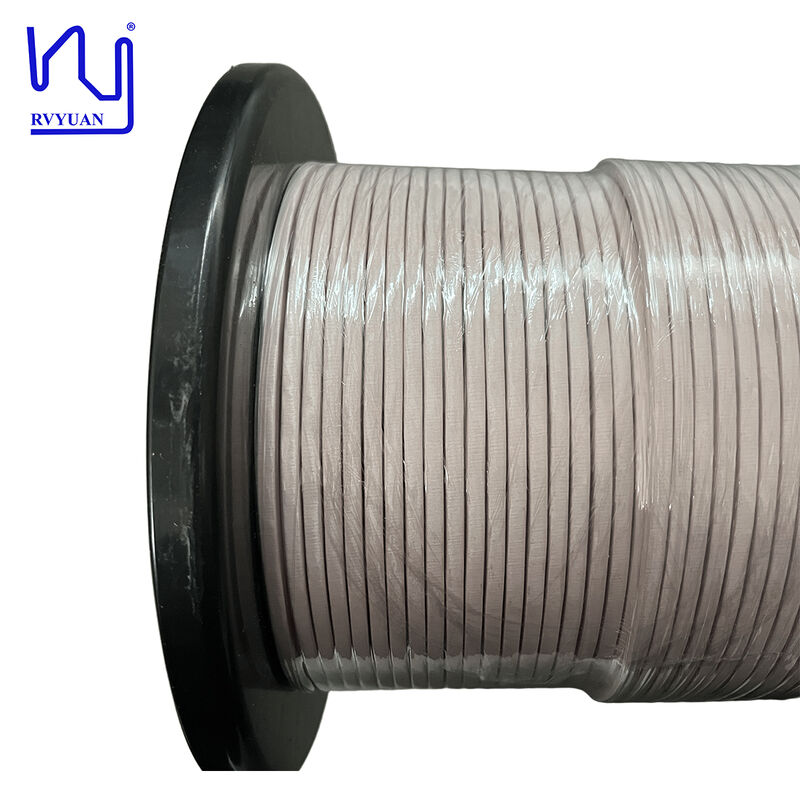

Flat litz wire 4.5mmx4.4mm 0.05mmx4875 nylon serving copper litz wire For Transformer

Informasi Dasar

Tempat asal:	Cina
Nama merek:	RVYUAN
Sertifikasi:	ISO9001/ISO14001 /UL/SGS
Nomor model:	USTC

Kuantitas min Order:	20kg
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kumparan dengan karton
Waktu pengiriman:	15 hari kerja
Syarat-syarat pembayaran:	T/T/Paypal
Menyediakan kemampuan:	Penuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Diameter:	0,05mm	Suhu:	155
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO	Konduktor:	Tembaga
helai:	4875	Tegangan Kerusakan:	Minimal 500
Bahan penutup:	Nilon	Kata Kunci:	Kawat litz datar 4.5mmx4.4mm 0.05mmx4875 nilon melayani kawat tembaga litz Untuk Transformer
Menyoroti:	flat litz wire for transformer , 4.5mmx4.4mm nylon serving litz wire , copper litz wire with nylon serving

Deskripsi Produk

Flat Litz Wire 4.5mm×4.4mm 0.05mm×4875 Nylon Serving Copper Litz Wire for Transformer

This is a custom-designed flat nylon serving litz wire, engineered for high-performance applications where space and efficiency are critical. As a large-scale product, it features a finished outer diameter with a width of 4.5 mm and a thickness of 4.4 mm, offering a substantial cross-sectional area while maintaining a flat profile.

Technical Specifications

Type Conductor diameter*Strand number	2USTC-H 0.054875(4.54.4)
Single wire (strand)	Conductor diameter (mm): 0.050±0.003
Overall diameter (mm)	0.055-0.069
Thermal Class (°C)	180

Strands Construction

Strands Number	First Time	39
	Second Time	39×5
	Third Time	39×5×5
	Fourth Time	39×5×5×5

Pitch Specifications

Pitch (mm)	First Time	16±8
	Second Time	25±10
	Third Time	35±10
	Fourth Time	65±10
Bunching Direction	S/S/S/S

Insulation Layer

Material Type	Nylon
Material Specs (mm×mm or D)	/
Times of Wrapping	1
Overlap (%) or Thickness (mm), Mini	0.045
Wrapping Direction	Z

Characteristics

Width (mm)	4.5±0.2
Thickness (mm)	4.4±0.2
Max Resistance (Ω/Km at 20°C)	2.227
Breakdown Voltage Mini (V)	500

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
