Rumah > Produk> Kawat Ustc Litz> 2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire

2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire

2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire
2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire
2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire
Informasi Dasar
Tempat asal: Cina
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 20kg
Harga: Bisa dinegosiasikan
Kemasan rincian: Kumparan dengan karton
Waktu pengiriman: 15 hari kerja
Syarat-syarat pembayaran: T/T/Paypal
Menyediakan kemampuan: Penuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0,2 mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
helai: 1300 Tegangan Kerusakan: Minimal 1600
Bahan penutup: Nilon Kata Kunci: 2UDTC-F 0.2mmx1300 Nilon Melayani Kawat Litz Kawat Untai Tembaga
Menyoroti:

Nylon serving Litz wire

,

Copper stranded Litz wire

,

0.2mm Litz wire with warranty

Deskripsi Produk

2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire

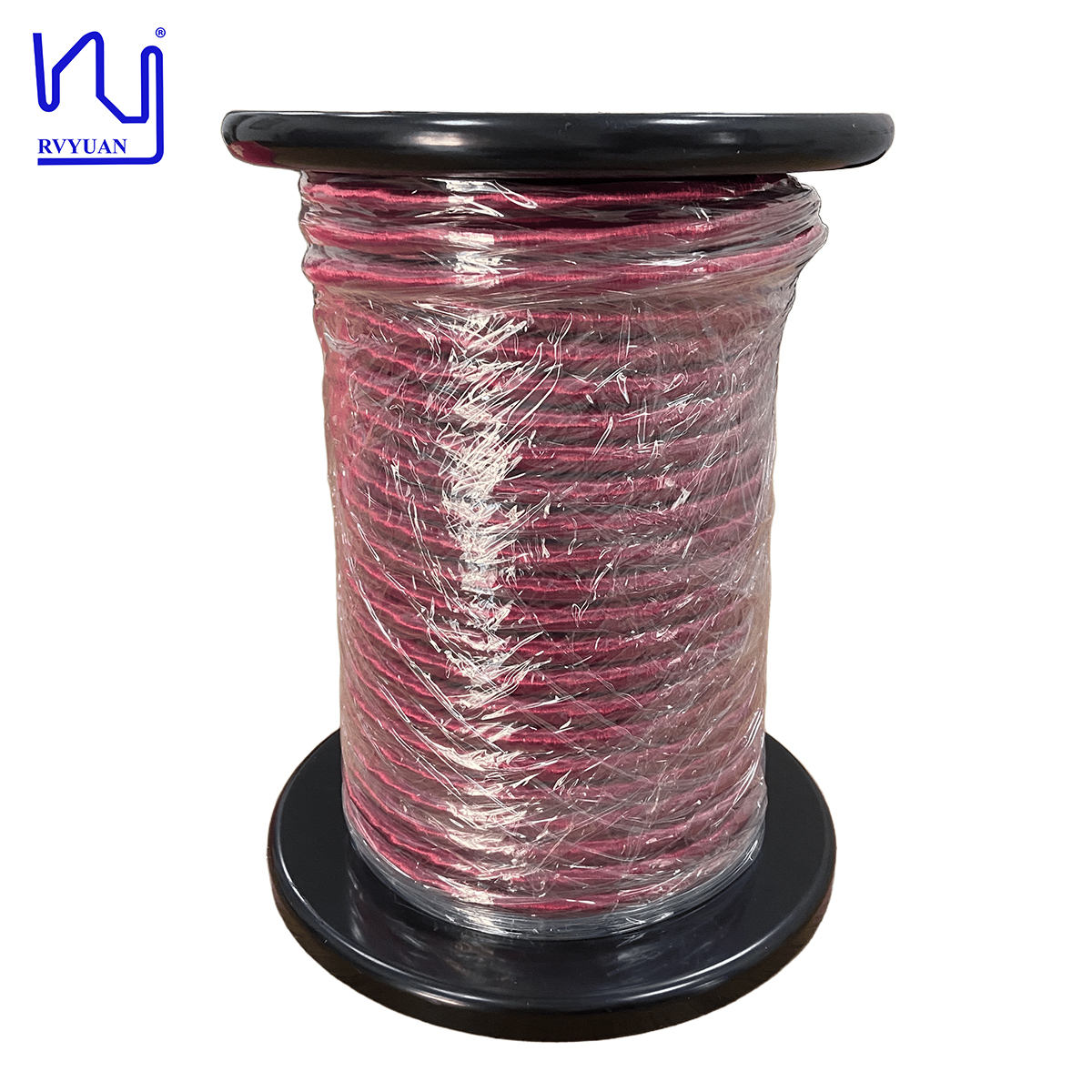

This premium pink litz wire is manufactured by twisting 1300 strands of 0.2 mm enameled copper wire, wrapped with durable dacron yarn. The distinctive pink polyester yarn was custom-produced to meet specific client requirements. For custom colored yarn wrapping needs, please contact us and we will work to accommodate your specifications.
Technical Specifications
Item No. Diameter of Single Wire (mm) Conductor Diameter (mm) Overall Dimension (mm) Resistance (Ω/m) Breakdown Voltage (V) Pitch
Tech Requirement 0.216-0.231 0.2±0.003 Max. 11.09 ≤0.000444 ≥1600 78±10
Sample 1 0.220-0.223 0.198-0.20 9.78-10.25 0.0000421 2800 √
2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.

Label:

self bonding kawat untai tipis,

kawat untai tipis berenamel,

kawat untai tipis 40 awg
