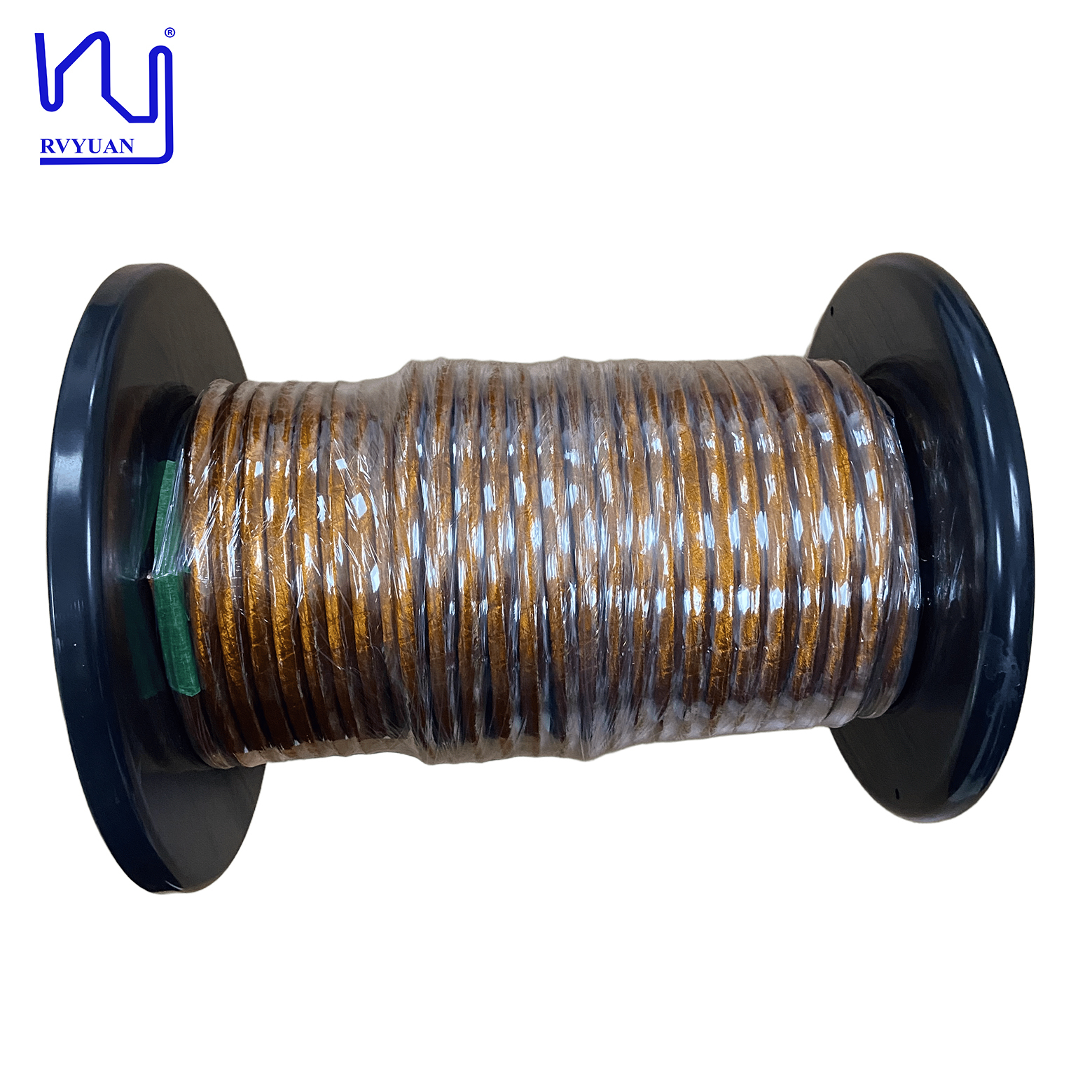

Square litz wire 7.4mm PI taped 0.071x6500 Litz Wire For Transformer

Informasi Dasar

Tempat asal:	Cina
Nama merek:	RVYUAN
Sertifikasi:	ISO9001/ISO14001 /UL/SGS
Nomor model:	USTC

Kuantitas min Order:	20kg
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kumparan dengan karton
Waktu pengiriman:	15 hari kerja
Syarat-syarat pembayaran:	T/T/Paypal
Menyediakan kemampuan:	Penuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Diameter:	0,071mm	Suhu:	155
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO	Konduktor:	Tembaga
helai:	6500	Tegangan Kerusakan:	Minimal 9500
Bahan penutup:	Tape	Kata Kunci:	Kawat litz persegi 7.4mm PI ditempel Kawat Litz 0,071x6500 Untuk Transformator
Menyoroti:	Square litz wire for transformer , 7.4mm PI taped litz wire , 0.071x6500 litz wire

Deskripsi Produk

Square Litz Wire 7.4mm PI Taped 0.071x6500 Litz Wire For Transformer

Square litz wire 7.4mm PI taped 0.071x6500 Litz Wire For Transformer. The finished litz wire is wrapped with a robust layer of Kapton polyimide tape insulation, providing exceptional thermal stability, chemical resistance, and dielectric strength.

Withstands minimum test voltages of 6,000 volts, making it ideally suited for high-voltage applications
Overall cross-section measures 7.4 mm × 7.4 mm, classifying it as a larger-profile litz wire
Capable of handling substantial power levels while maintaining a compact form factor for space-constrained assemblies

Technical Specifications

Item No.	Single wire diameter mm	Conductor diameter mm	Width mm	Thickness mm	Resistance Ω/m	Breakdown voltage V	Pitch
Tech requirement	0.075-0.084	0.071±0.003	7.4±0.3	7.4±0.	≤0.000814	≥9500	130±200
Sample 1	0.076-0.078	0.068-0.069	9.38-7.54	9.38-7.54	0.000705	11400	√

Label:

Square litz wire 7.4mm PI taped 0.071x6500 Litz Wire For Transformer

Square litz wire for transformer

7.4mm PI taped litz wire

0.071x6500 litz wire
