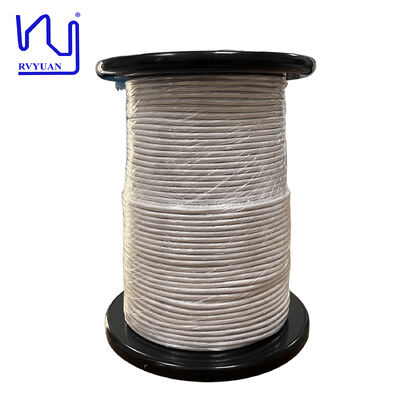

0.2mmx300 High Frequency Litz Wire Copper Stranded Wire

Informasi Dasar

Harga terbaik Hubungi sekarang

Informasi Detail

Diameter:	0,2 mm	Suhu:	155
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO	Konduktor:	Tembaga
helai:	300	Tegangan tembus:	Minimal 1400
Bahan Penutup:	Nilon	Kata Kunci:	0.2mmx300 Kawat Litz Frekuensi Tinggi Kawat Terdampar Tembaga
Menyoroti:	0.2mm high frequency Litz wire , 300 strand copper Litz wire , high frequency stranded copper wire

Deskripsi Produk

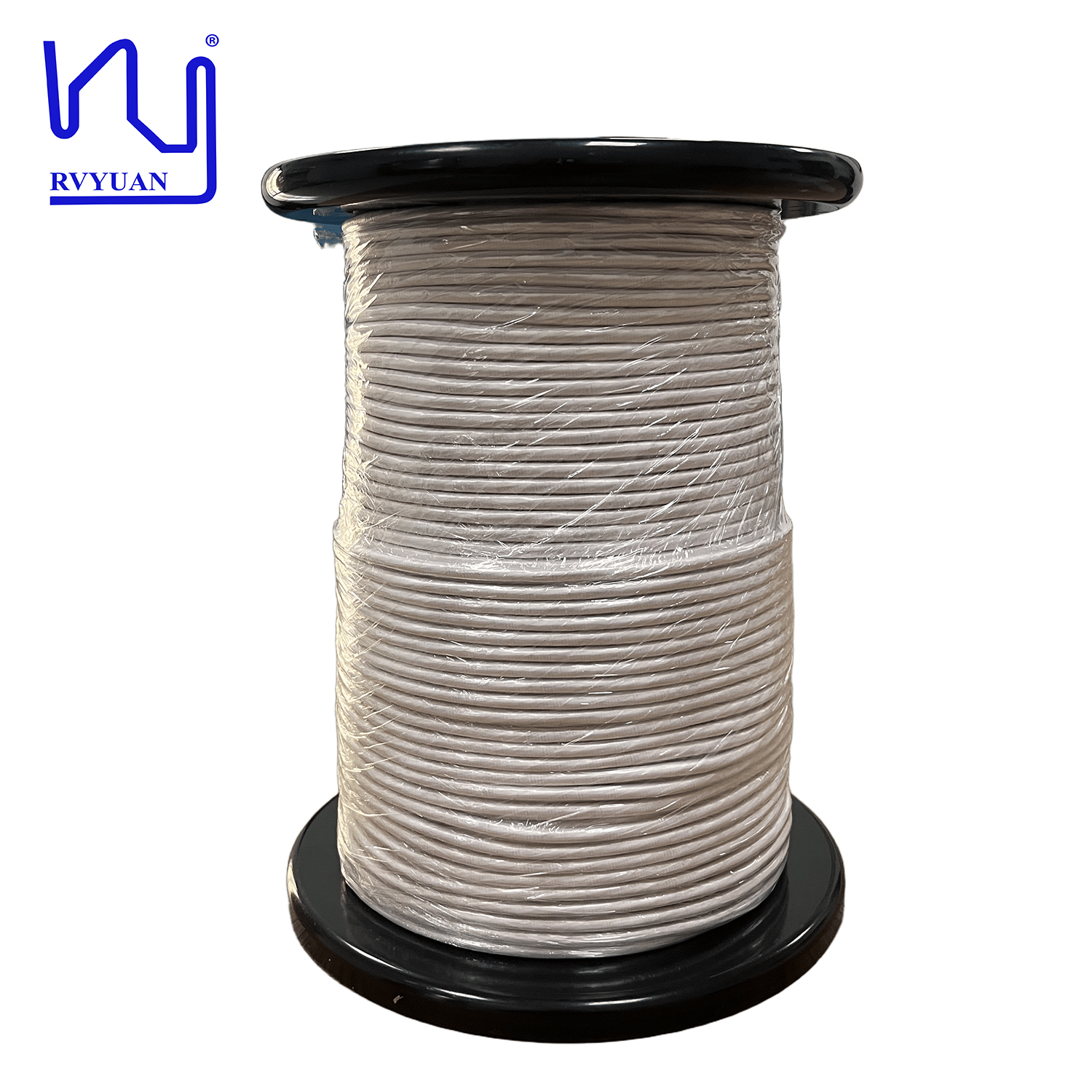

0.2mmx300 High Frequency Litz Wire Copper Stranded Wire

Product Overview

0.2mmx300 High Frequency Litz Wire Copper Stranded Wire is engineered for high-frequency applications requiring optimal performance and reliability.

Main Application Areas

High-frequency inductors and transformers
Switching Power Supply (SMPS): Especially suitable for high-frequency flyback, forward, and LLC resonant transformers
Wireless charging coils: Used in smartphones, wearable devices, etc., with operating frequencies ranging from hundreds of kilohertz to megahertz
RF inductors: Used for resonance and filtering in RF circuits

Test Report & Specifications

Item No.	Outer diameter of single wire (mm)	Conductor diameter (mm)	Overall dimension (mm)	Resistance (Ω/m)	Breakdown voltage (V)	Pitch
Tech requirement	0.216-0.231	0.2±0.003	Max. 5.21	≤0.001924	≥1600	130±20
Sample 1	0.05	0.198-0.20	4.53-4.85	0.001821	400	√

Technical Specifications

Label:

0.2mm high frequency Litz wire
