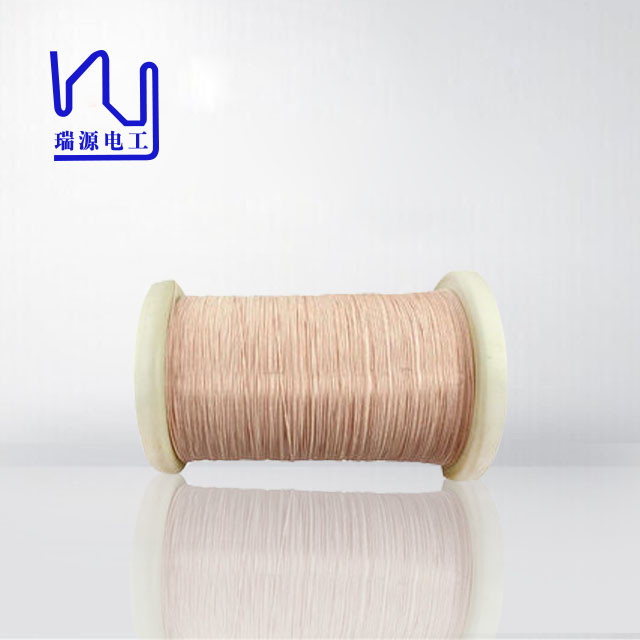

2USTC/UDTC-F 0.071mmx615 Nylon Serving Litz Wire Copper Twisting Wire For Wireless Charger

Informasi Dasar

Tempat asal:	Cina
Nama merek:	RVYUAN
Sertifikasi:	ISO9001/ISO14001 /UL/SGS
Nomor model:	USTC

Kuantitas min Order:	10kg
Harga:	negotiable
Kemasan rincian:	Spul dengan karton
Waktu pengiriman:	2-15 hari kerja
Syarat-syarat pembayaran:	T/T/Paypal
Menyediakan kemampuan:	Penuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Diameter:	0.071mm	Suhu:	155
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO	Konduktor:	Tembaga
helai:	615	Tegangan tembus:	Minimal 950
Bahan Penutup:	Nilon	Kata Kunci:	2USTC-F/H Nilon Melayani Kawat Litz Kawat Tunggal Kawat Tembaga Terdampar 0,071mm
Menyoroti:	Nylon serving Litz wire , Copper twisting wire for wireless charger , 0.071mm USTC Litz wire

Deskripsi Produk

2USTC/UDTC-F 0.071mmx615 Nylon Serving Litz Wire Copper Twisting Wire

This nylon serving litz wire copper twisting wire is specifically designed for wireless charger applications. The combination of litz wire construction with nylon serving provides both electrical advantages and superior physical protection, making it ideal for high-performance, high-frequency applications where reliability is critical.

We support small batch customization with a minimum order quantity of 10kg.

Technical Specifications

Item No.	Outer Diameter of Single Wire (mm)	Conductor Diameter (mm)	Overall Dimension (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.077-0.084	0.071±0.003	Max. 2.83	≤0.008114	≥950	40±10
Sample 1	0.079	0.068	2.24	0.007434	2600	√
Sample 2	0.081	0.070	2.37	0.007385	2500	√
