Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger

Informasi Dasar

Tempat asal:	Cina
Nama merek:	RVYUAN
Sertifikasi:	ISO9001/ISO14001 /UL/SGS
Nomor model:	USTC

Kuantitas min Order:	10kg
Harga:	negotiable
Kemasan rincian:	Spul dengan karton
Waktu pengiriman:	2-15 hari kerja
Syarat-syarat pembayaran:	T/T/Paypal
Menyediakan kemampuan:	Penuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Diameter:	0.071mm	Suhu:	155
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO	Konduktor:	Tembaga
helai:	1075	Tegangan tembus:	Minimal 950
Bahan Penutup:	Nilon	Nama Produk:	Kawat Litz Terdampar Tembaga 0,071mmx1075 Kawat Litz Tertutup Sutra Untuk Pengisi Daya Nirkabel
Kata Kunci:	Kawat Litz Terdampar Tembaga 0,071mmx1075 Kawat Litz Tertutup Sutra Untuk Pengisi Daya Nirkabel
Menyoroti:	Copper stranded Litz wire for wireless charger , Silk covered Litz wire 0.071mmx1075 , Litz wire with silk insulation

Deskripsi Produk

Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger

High-quality copper stranded litz wire specifically designed for wireless charger applications, featuring silk covering for optimal performance and durability.

Product Specifications

Single wire diameter: 0.071mm

Number of strands: 1075

Thermal rating: Class 155

Maximum overall dimension: 3.79mm

Minimum Order Quantity: 10KG

Conversion: 1KG = 25M

Construction Details

The single wire is enameled, and after twisting, it's wrapped with nylon yarn on the outside. We also offer polyester yarn alternatives. For high-end audio cable applications, natural silk covering is available.

Technical Specifications

Item No.	Outer diameter of single wire (mm)	Conductor diameter (mm)	Overall dimension (mm)	Resistance (Ω/m)	Breakdown voltage (V)	Pitch
Tech requirement	0.077-0.084	0.071±0.003	Max. 3.79	≤0.004642	≥950	40±10
Sample 1	0.079	0.068	3.18	0.004325	2800	✓
Sample 2	0.081	0.070	3.32	0.044317	2700	✓

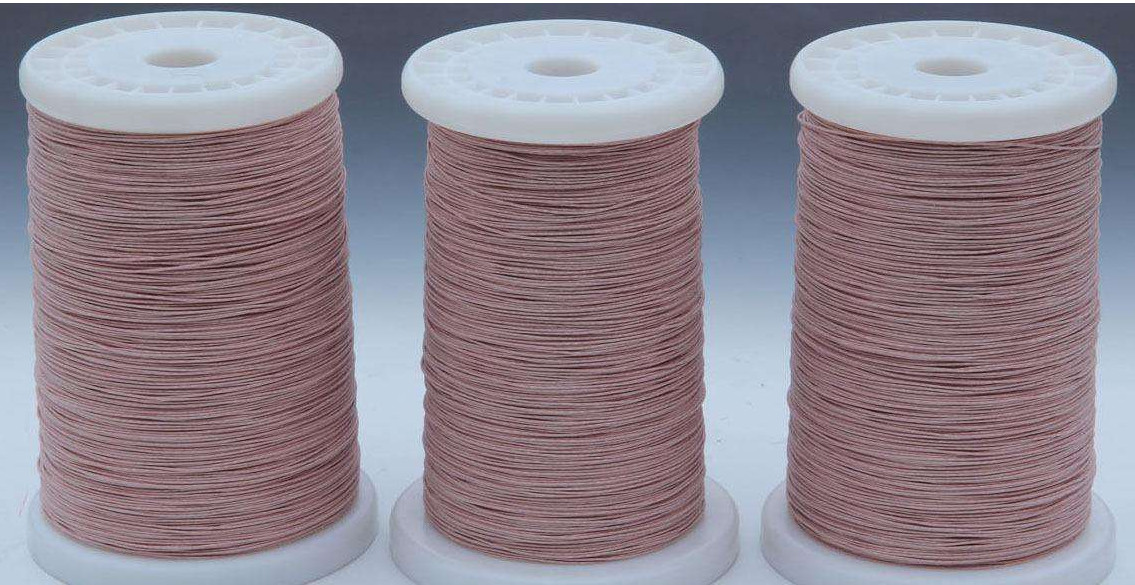

Product Image

Label:

Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger

Copper stranded Litz wire for wireless charger

Silk covered Litz wire 0.071mmx1075

Litz wire with silk insulation
