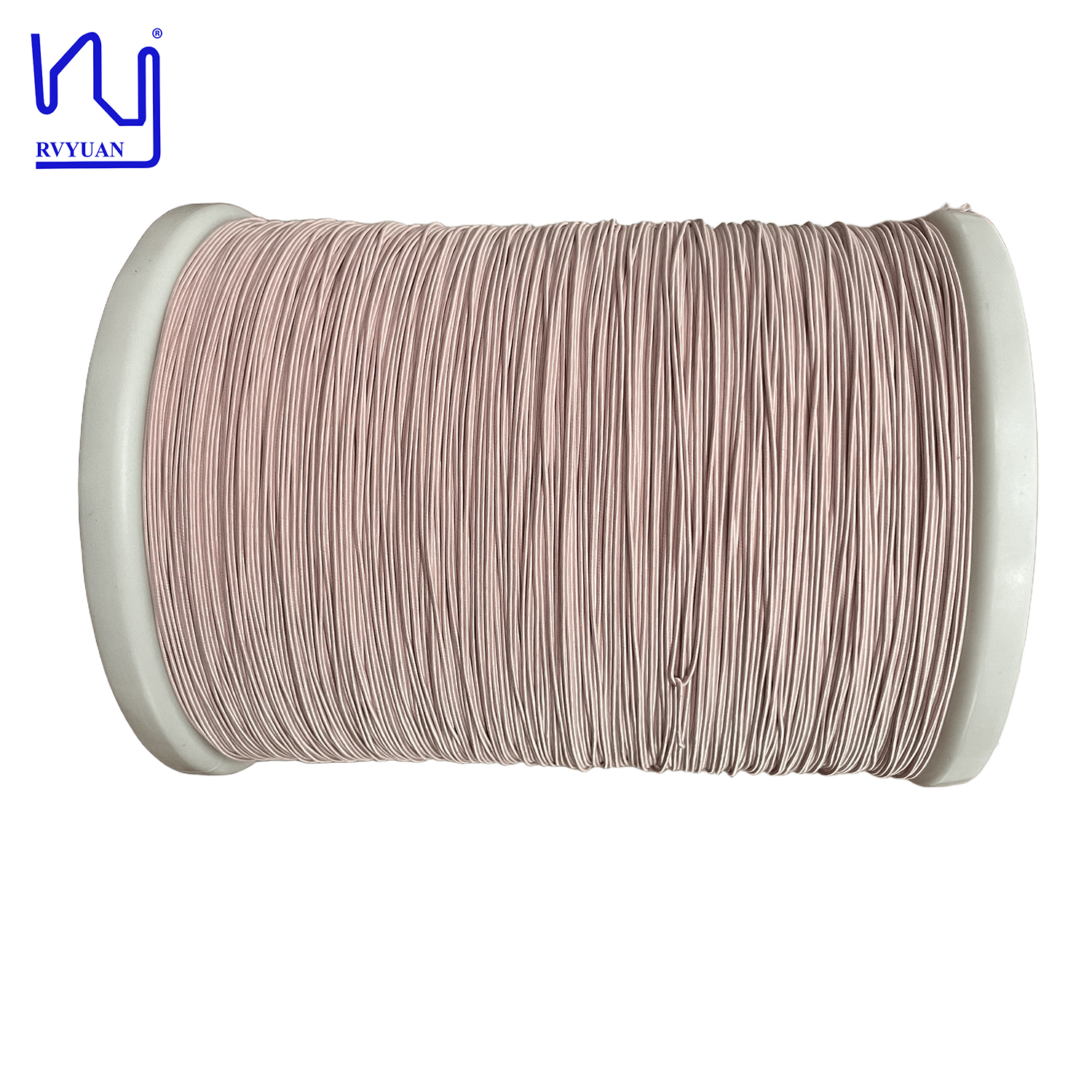

High Frequency Wire 0.05mm 0.06mm 0.08mm Silk Covered Litz Wire

Informasi Dasar

Tempat asal:	Cina
Nama merek:	RVYUAN
Sertifikasi:	ISO9001/ISO14001 /UL/SGS
Nomor model:	USTC

Kuantitas min Order:	10kg
Harga:	negotiable
Kemasan rincian:	Spul dengan karton
Waktu pengiriman:	2-15 hari kerja
Syarat-syarat pembayaran:	T/T/Paypal
Menyediakan kemampuan:	Penuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Diameter:	0,05mm	Suhu:	155
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO	Konduktor:	Tembaga
helai:	225	Tegangan tembus:	Minimal 950
Bahan Penutup:	Nilon	Nama Produk:	Kawat Frekuensi Tinggi 0,05mm 0,06mm 0,08mm Kawat Litz Tertutup Sutra
Kata kunci:	Kawat Frekuensi Tinggi 0,05mm 0,06mm 0,08mm Kawat Litz Tertutup Sutra
Menyoroti:	silk covered litz wire 0.05mm , high frequency litz wire 0.08mm , ultra thin litz wire with warranty

Deskripsi Produk

High Frequency Wire 0.05mm 0.06mm 0.08mm Silk Covered Litz Wire

We understand the diverse needs of our clients, which is why we support small-batch customization with a minimum order quantity of just 10kg. This flexibility allows businesses to experiment with different configurations and materials, ensuring they receive a product that meets their exact specifications. Whether for high-end audio cables or other specialized uses, silk covered litz wire stands out as a premium choice for those looking to enhance their electrical performance.

Technical Specifications

Item No.	Wire Diameter (mm)	Conductor Diameter (mm)	Overall Dimension (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.055-0.069	0.05±0.003	Max. 1.42	≤0.04551	≥950	27±3
Sample 1	0.058	0.048	0.98	0.03858	2400	√
Sample 2	0.060	0.050	1.06	0.03819	2500	√
