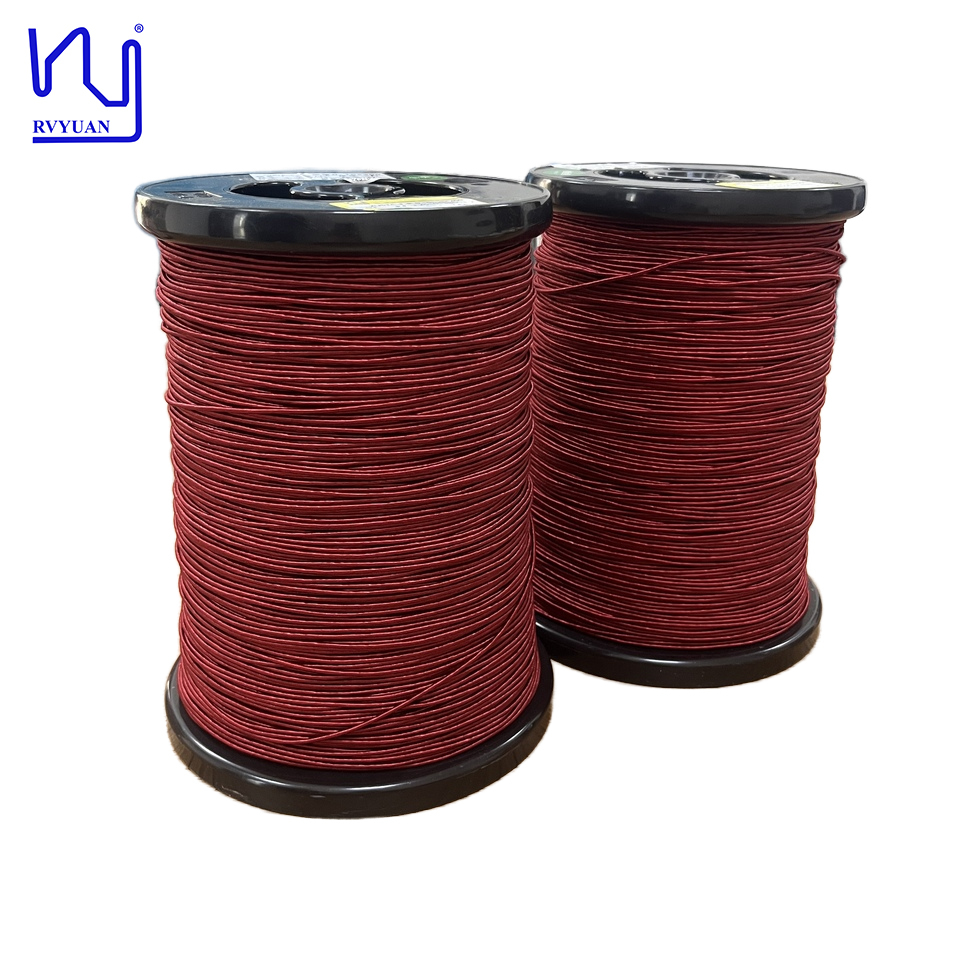

USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire 1100V Rated Voltage

USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire 1100V Rated Voltage
USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire 1100V Rated Voltage
USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire 1100V Rated Voltage
Informasi Dasar
Tempat asal: Tiongkok
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Spool dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: T/ t/ paypal
Menyediakan kemampuan: Memenuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0.08mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
Untaian: 270 Tegangan kerusakan: Min.1100
Bahan penutup: nilon Nama Produk: USTC Kelas 155 0,08mm * 270 Kawat Litz Tembaga Tertutup Sutra Terisolasi Tegangan Terukur 1100V
Kata kunci: USTC Kelas 155 0,08mm * 270 Kawat Litz Tembaga Tertutup Sutra Terisolasi Tegangan Terukur 1100V
Menyoroti:

USTC Class 155 Litz wire

,

0.08mm insulated silk copper wire

,

1100V rated voltage Litz wire

Deskripsi Produk

USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire 1100V Rated Voltage

USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire with 1100V Rated Voltage. Custom color services are also available, typically using white polyester or nylon yarn.

The nylon layer plays a crucial role in providing mechanical protection, enhancing the wire's abrasion and tear resistance. This outer layer not only improves the wire's durability and extends its service life but also stabilizes the overall diameter of the wire, preventing damage during winding.

Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Pitch
Tech requirement 0.087-0.095 0.08±0.003 Max.2.04 ≤0.01398 ≥1100 29±5
Sample 1 0.89-0.091 0.078-0.08 1.7-1.82 0.01282 2700 √
USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire 1100V Rated Voltage 0
