Rumah > Produk> Kawat Ustc Litz> 2USTC-F 0.08mmx270 Red Color Nylon Served Silk Covered Litz Wire

2USTC-F 0.08mmx270 Red Color Nylon Served Silk Covered Litz Wire

2USTC-F 0.08mmx270 Red Color Nylon Served Silk Covered Litz Wire
2USTC-F 0.08mmx270 Red Color Nylon Served Silk Covered Litz Wire
2USTC-F 0.08mmx270 Red Color Nylon Served Silk Covered Litz Wire
Informasi Dasar
Tempat asal: Tiongkok
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Spool dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: T/ t/ paypal
Menyediakan kemampuan: Memenuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0.08mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
Untaian: 270 Tegangan kerusakan: Min.1100
Bahan penutup: nilon Nama Produk: 2USTC-F 0.08mmx270 Warna Merah Nilon Melayani Kawat Litz Tertutup Sutra
Kata kunci: 2USTC-F 0.08mmx270 Warna Merah Nilon Melayani Kawat Litz Tertutup Sutra
Menyoroti:

red nylon served litz wire

,

0.08mm silk covered wire

,

ustc-f litz wire

Deskripsi Produk

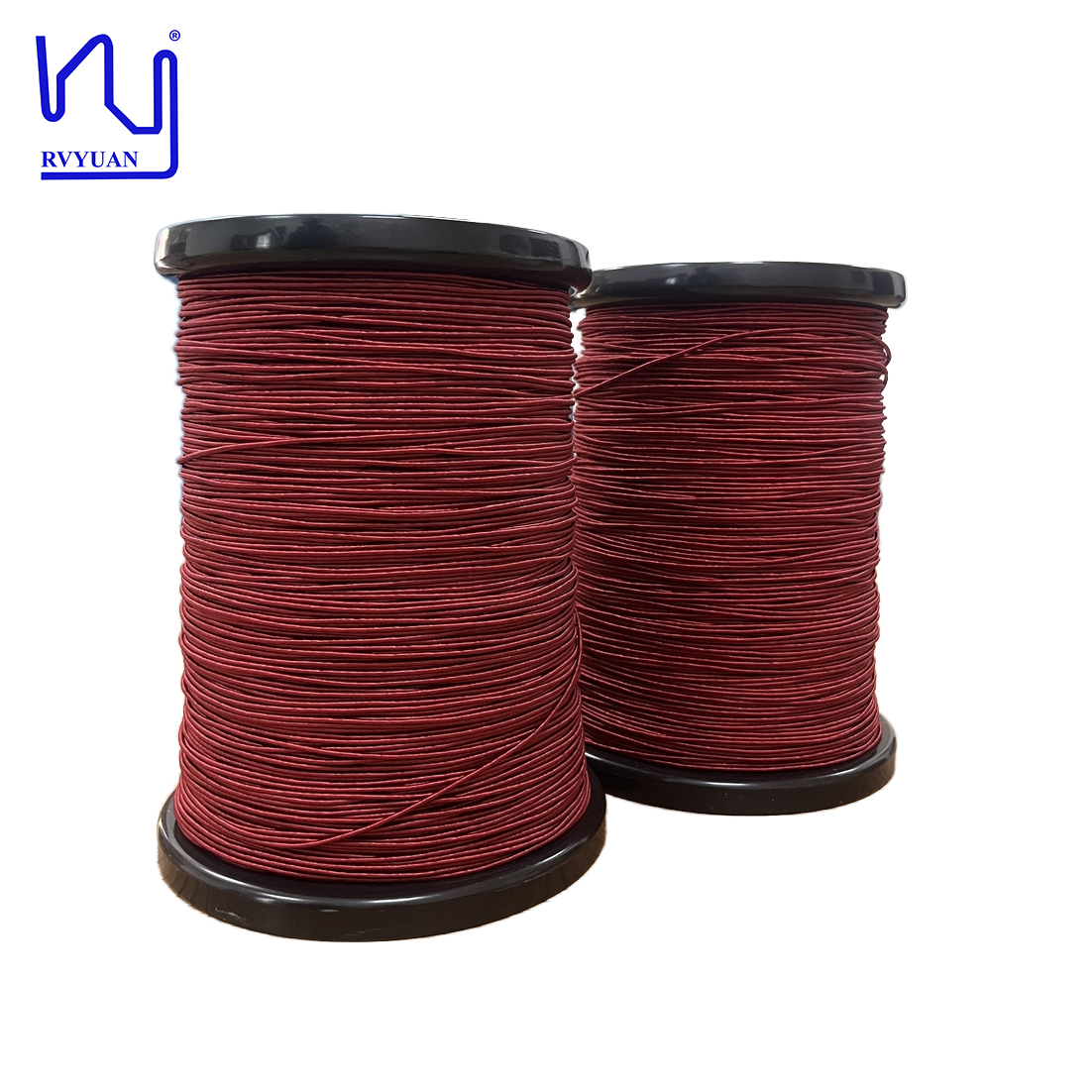

2USTC-F 0.08mmx270 Red Color Nylon Served Silk Covered Litz Wire
Silk covered Litz wire is a custom-designed Litz wire with a single strand diameter of 0.08 mm. The wire is composed of 270 strands of enameled insulated wire twisted together, with an outer layer of bright red polyester yarn. Custom color services are also available, typically using white polyester or nylon yarn.
Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω /m Breakdown voltage V Pitch
Tech requirement 0.087-0.095 0.08±0.003 Max.2.04 ≤0.01398 ≥1100 29±5
Sample 1 0.89-0.091 0.078-0.08 1.7-1.82 0.01282 2700 √
2USTC-F 0.08mmx270 Red Color Nylon Served Silk Covered Litz Wire 0
