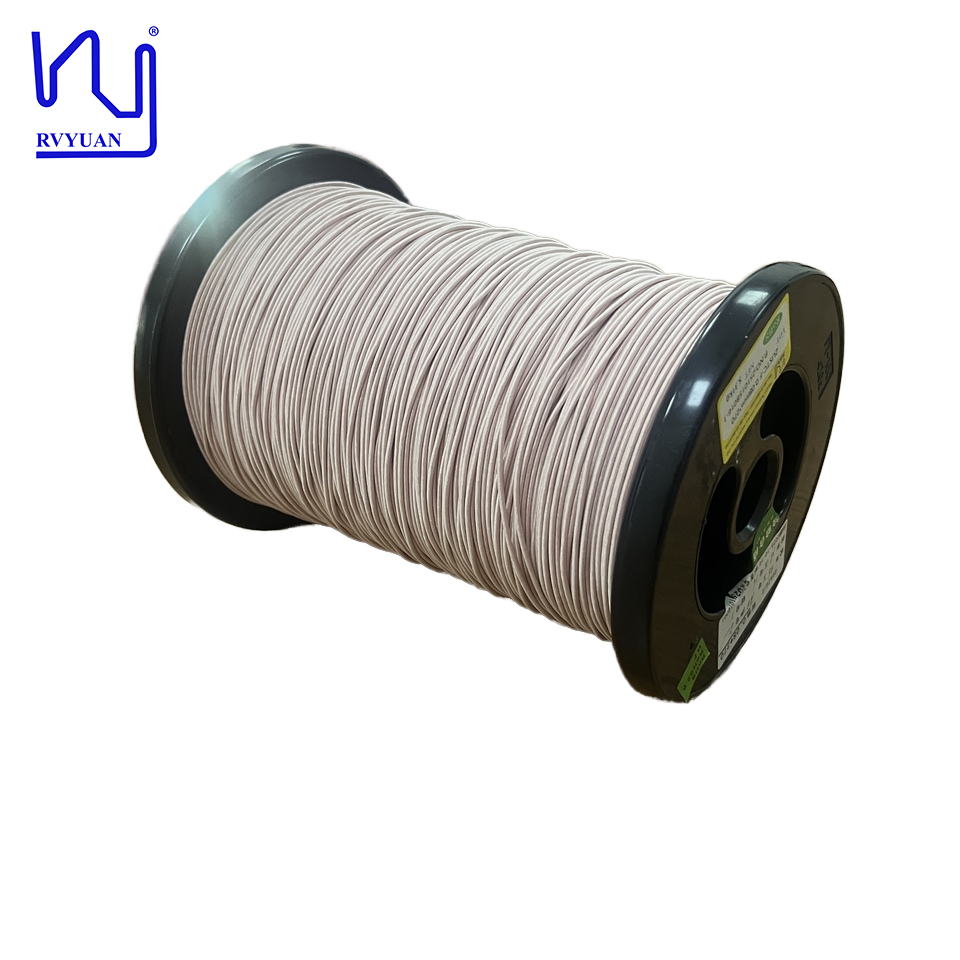

USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire

USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire
USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire
USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire
Informasi Dasar
Tempat asal: Tiongkok
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Spool dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: T/ t/ paypal
Menyediakan kemampuan: Memenuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0.08mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
Untaian: 210 Tegangan kerusakan: Min.1100
Bahan penutup: nilon Nama Produk: USTC 155 0.08mm * 210 Kawat Untai Tembaga Enamel Poliester Padat Kawat Litz Tertutup Sutra Telanjang
Kata kunci: USTC 155 0.08mm * 210 Kawat Untai Tembaga Enamel Poliester Padat Kawat Litz Tertutup Sutra Telanjang
Menyoroti:

0.08mm polyester enameled copper wire

,

210 solid stranded litz wire

,

bare silk covered polyester wire

Deskripsi Produk

USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire
This silk-covered Litz wire is made of 210 strands of enameled copper wire twisted together to form a strong yet flexible wire cable. This unique design significantly reduces the skin effect and proximity effect common in high-frequency applications. Therefore, the wire improves efficiency and minimizes power loss, making it ideal for high-frequency transformers, wireless chargers, and RF inductors.
Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Pitch No.Of strands
Tech requirement 0.087-0.103 0.08±0.003 Max.1.81 ≤0.01780 ≥1100 29±5 210
Sample 1 0.09-0.093 0.078-0.08 1.53-1.66 0.01635 3000 √ √
USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire 0
