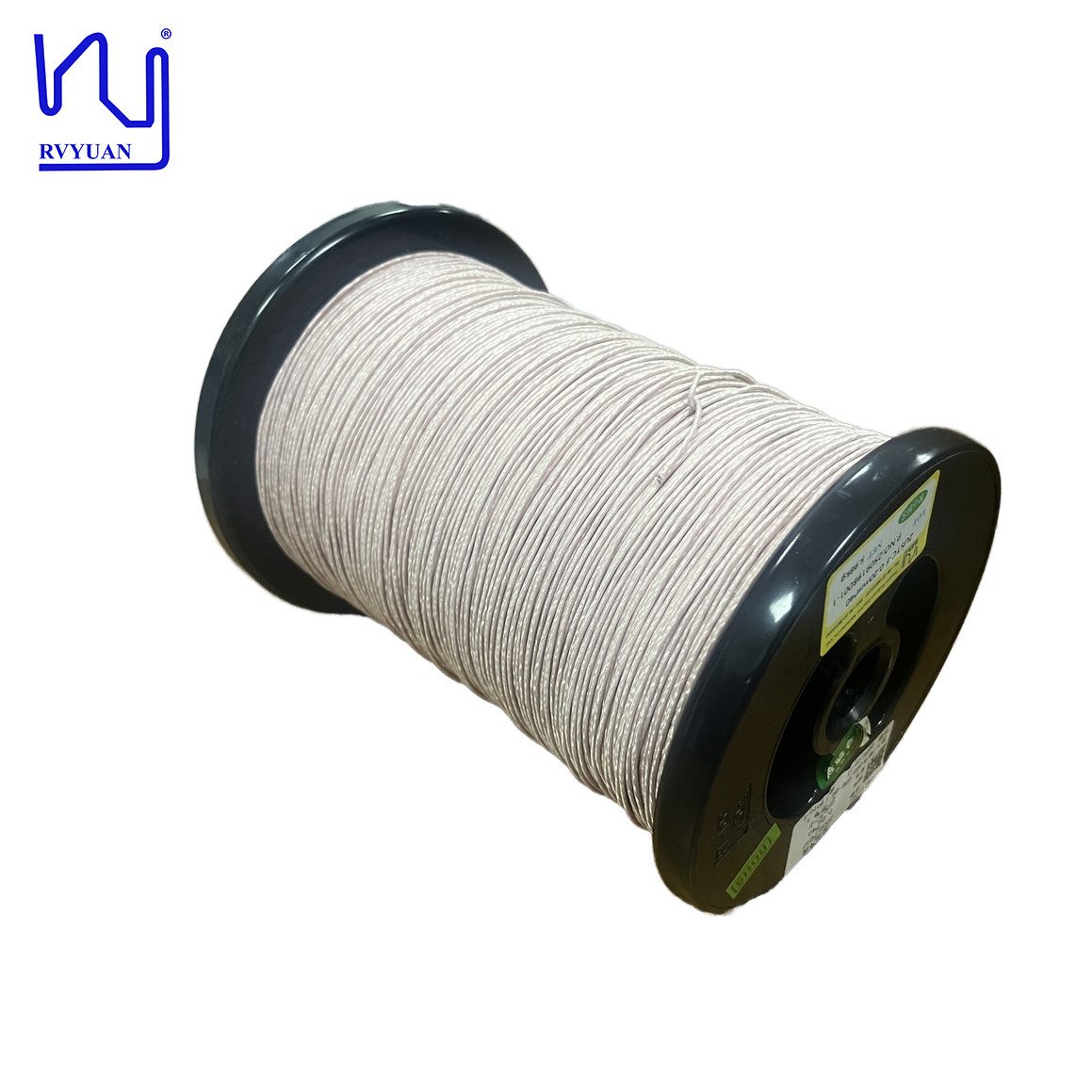

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type

Informasi Dasar

Tempat asal:	CINA
Nama merek:	RVYUAN
Sertifikasi:	ISO9001/ISO14001 /UL/SGS
Nomor model:	USTC

Kuantitas min Order:	10kg
Harga:	negotiable
Kemasan rincian:	Spool dengan karton
Waktu pengiriman:	2-15 hari kerja
Syarat-syarat pembayaran:	T/ t/ paypal
Menyediakan kemampuan:	Memenuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Diameter:	0.2mm	Suhu:	155
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO	Konduktor:	Tembaga
Untaian:	40	Tegangan kerusakan:	Minimal 1600
Bahan penutup:	nilon	Nama Produk:	44/0.2mm Kelas 155/180 Kawat Litz Tertutup Sutra Padat Tipe Bulat
Kata kunci:	44/0.2mm Kelas 155/180 Kawat Litz Tertutup Sutra Padat Tipe Bulat
Menyoroti:	solid silk covered litz wire , 0.2mm litz wire round type , class 155/180 litz wire

Deskripsi Produk

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type is made of enameled wire and Dacron, which can increase the insulation strength, decrease the layer capacitance, and increase the Q value. Twisted USTC wires have features equivalent to the ones of Twisted enameled wires.

Applications

Wireless inductance
High power illumination system
Electroacoustic equipment
Ultrasonic equipment
High frequency induction and transformer
Data cable
Ear phone cable

Product Specifications

Item	Technical requests	Test value 1	Test value 2
Single Diameter (mm)	0.216-0.231	0.219	0.223
Conductor diameter (mm)	0.2± 0.003	0.198	0.2
O.D. (mm)	Max.1.8	1.57	1.70
Resistance Ω/m (20℃)	Max. 0.01443	0.01357	0.01335
Breakdown Voltage V	1600	3800	3600
Pitch mm	33 ±7	√	√
No. of strands	40	√	√

Please send inquiries directly to request more information or quote!
