Rumah > Produk> Kawat Ustc Litz> USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V

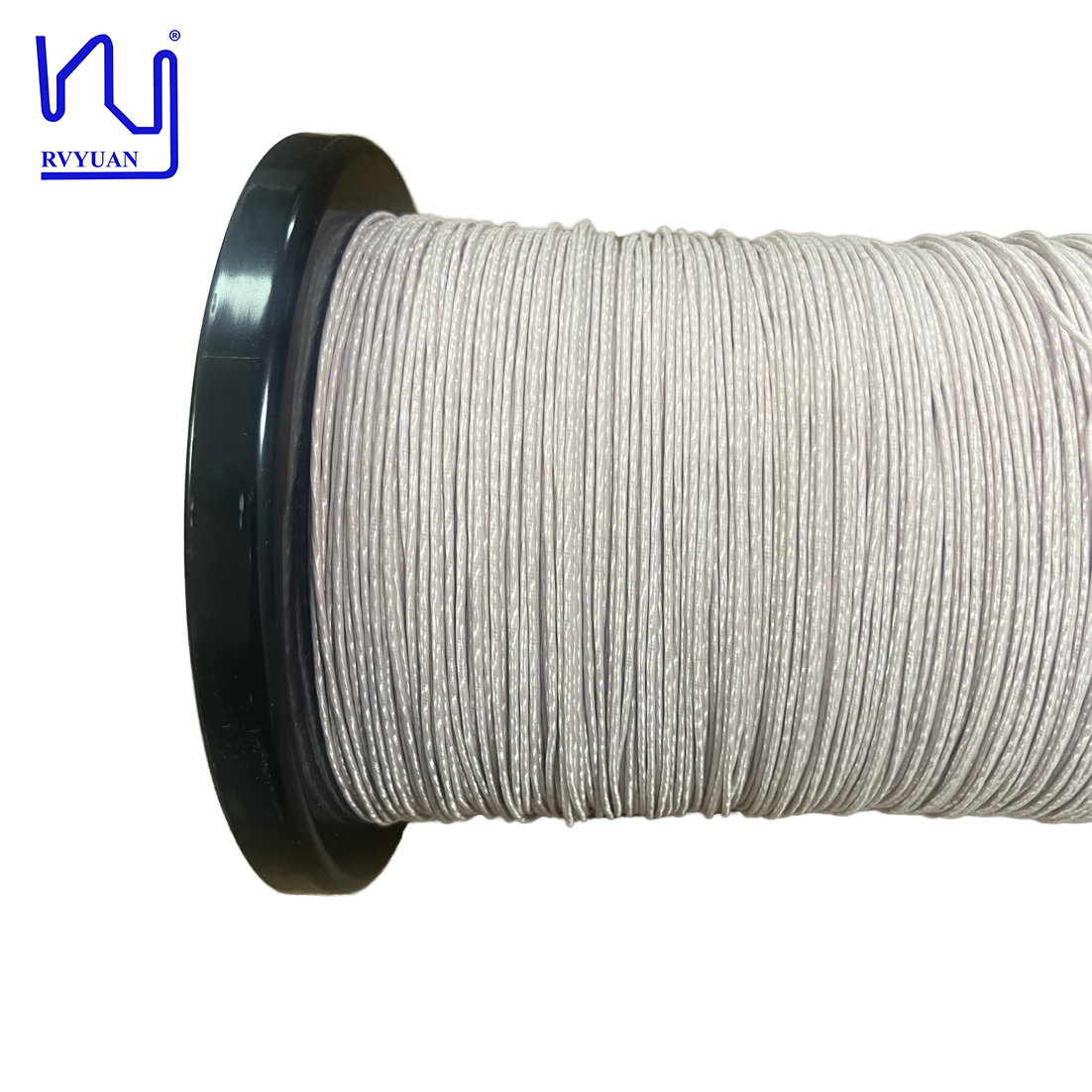

USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V

USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V
USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V
USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V
Informasi Dasar
Tempat asal: CINA
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Spool dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: T/ t/ paypal
Menyediakan kemampuan: Memenuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0.2mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
Untaian: 40 Tegangan kerusakan: Minimal 1600
Bahan penutup: nilon Nama Produk: USTC Kelas 155 0.2mm*40 Kawat Litz Tembaga Tertutup Sutra Terisolasi 3500V
Kata kunci: USTC Kelas 155 0.2mm*40 Kawat Litz Tembaga Tertutup Sutra Terisolasi 3500V
Menyoroti:

0.2mm insulated silk litz wire

,

40 strand silk covered copper wire

,

3500V high voltage litz wire

Deskripsi Produk

USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V
This type of silk covered Litz wire has a wide range of applications, including transformer windings, voice coil wiring, and electric vehicle charging stations. We understand that every project is unique, so we offer customization services. You can specify your exact requirements for conductor specifications, number of strands, stranding method, resistance, and outer diameter. Our professional team is dedicated to helping you design silk-covered Litz wire that perfectly matches your system needs.
Product Specifications
Item Technical requests Test value 1 Test value 2
Single Diameter (mm) 0.216-0.231 0.219 0.223
Conductor diameter (mm) 0.2± 0.003 0.198 0.2
O.D. (mm) Max.1.8 1.57 1.70
Resistance Ω/m (20℃) Max. 0.01443 0.01357 0.01335
Breakdown Voltage V 1600 3800 3600
Pitch mm 33 ±7 √ √
No. of strands 40 √ √
USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V 0
Please send inquiries directly to request more information or quote!
