2USTC 0.2mm Nylon Covered Litz Wire 150 Strands Copper Wire

Informasi Dasar
Tempat asal: CINA
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Spool dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: T/ t/ paypal
Menyediakan kemampuan: Memenuhi permintaan Anda
Informasi Detail
Diameter: 0.2mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
Untaian: 40 Tegangan kerusakan: Minimal 1600
Bahan penutup: nilon Nama Produk: 2USTC 0.2mm Kawat Litz Tertutup Nilon 150 Helai Kawat Tembaga
Kata kunci: 2USTC 0.2mm Kawat Litz Tertutup Nilon 150 Helai Kawat Tembaga
Menyoroti:

0.2mm nylon litz wire

,

150 strands copper litz wire

,

ustc nylon covered wire


Deskripsi Produk

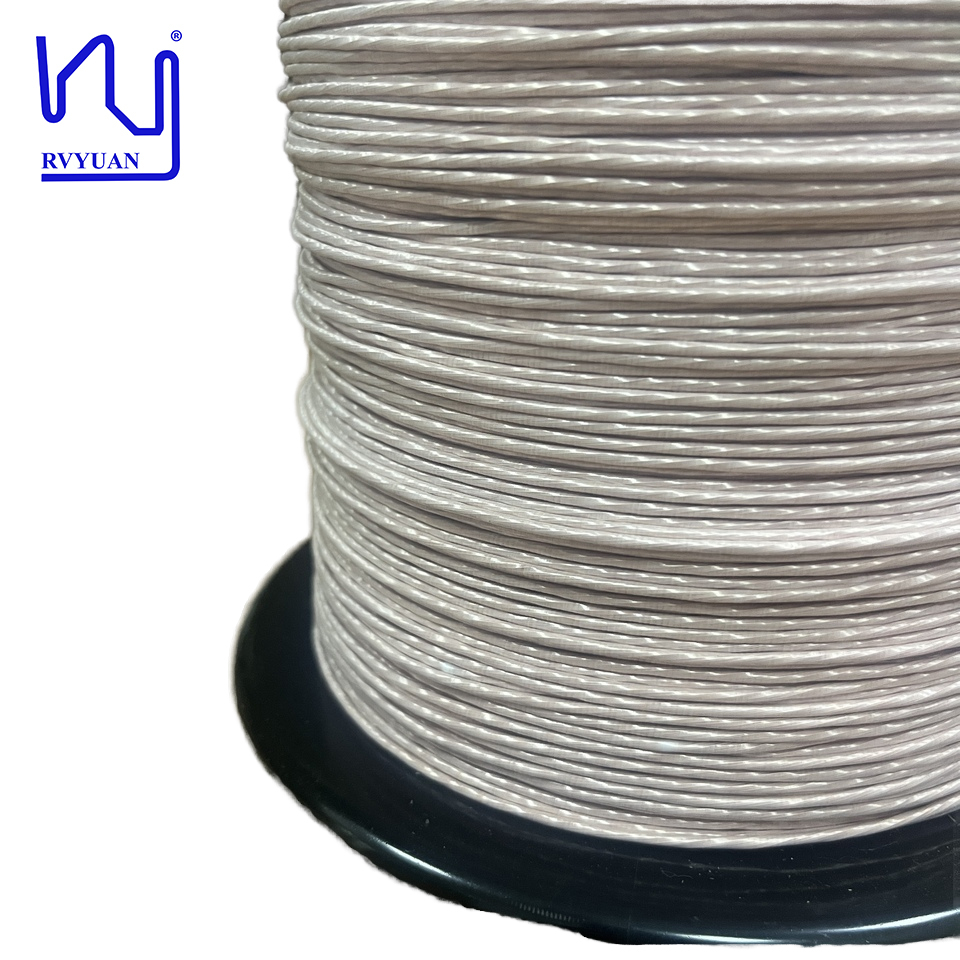

2USTC 0.2mm Nylon Covered Litz Wire 150 Strands Copper Wire

This superior nylon served litz wire features 0.2mm single enameled wire coated with a durable polyurethane, ensuring excellent solderability. You can use it with confidence; soldering will be seamless, making it a reliable choice for a wide range of projects. The litz wire is composed of 40 strands, combining exceptional flexibility and performance.

The outer layer is wrapped in high-quality nylon, which not only enhances durability but also gives it a stylish look. If you prefer other materials, we also offer polyester and silk wrapping options, allowing you to choose the most suitable material according to your needs.

Product Specifications
Item Technical requests Test value 1 Test value 2
Single Diameter (mm) 0.216-0.231 0.219 0.223
Conductor diameter (mm) 0.2± 0.003 0.198 0.2
O.D. (mm) Max.1.8 1.57 1.70
Resistance Ω/m (20℃) Max. 0.01443 0.01357 0.01335
Breakdown Voltage V 1600 3800 3600
Pitch mm 33 ±7
No. of strands 40
2USTC 0.2mm Nylon Covered Litz Wire 150 Strands Copper Wire 0
Please send inquiries directly to request more information or quote!
