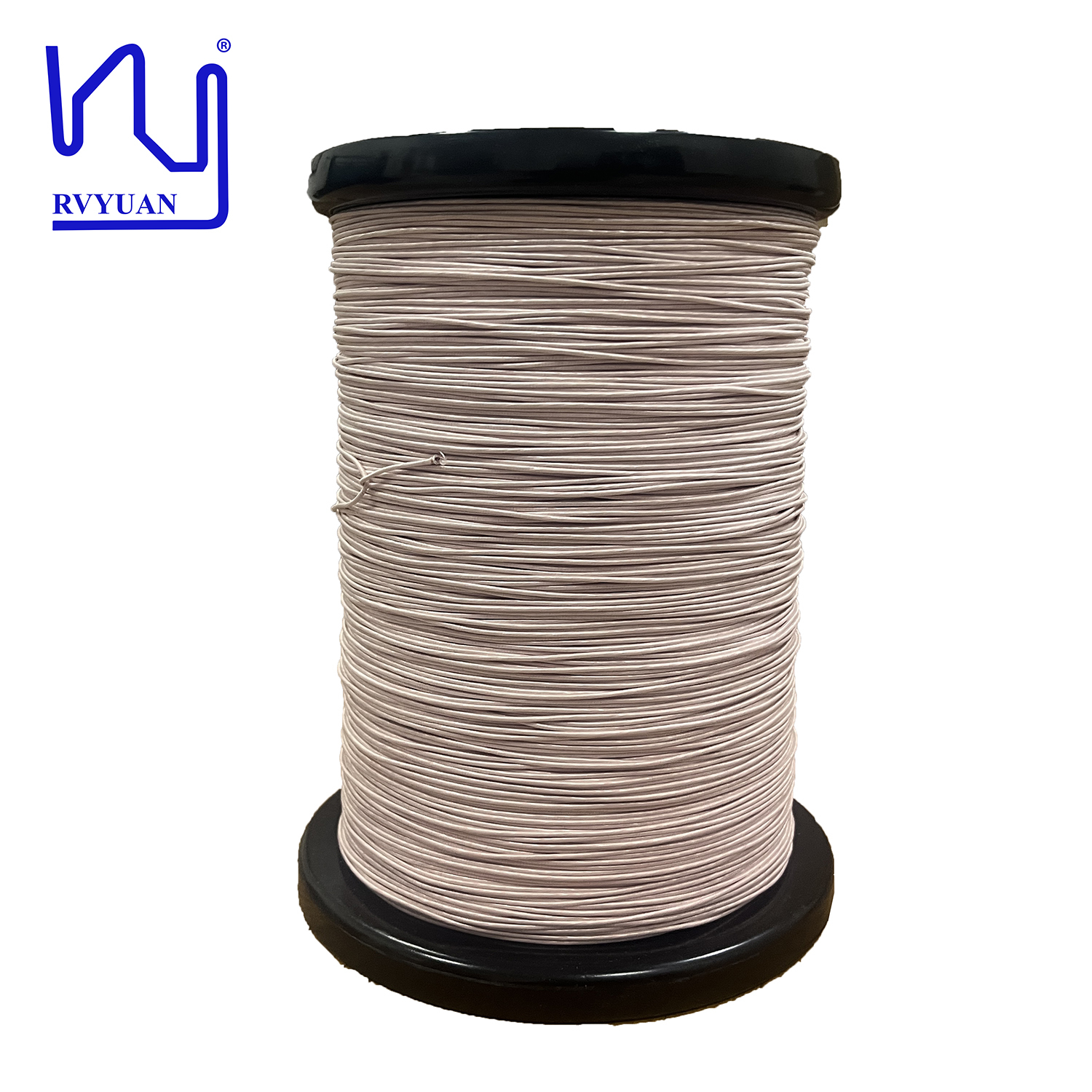

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
Informasi Dasar
Tempat asal: CINA
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Spool dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: T/ t/ paypal
Menyediakan kemampuan: Memenuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0.1mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
Untaian: 100 Tegangan kerusakan: Min.1100
Bahan penutup: nilon Nama Produk: 100/0.1Mm USTC Kawat Frekuensi Tinggi Suhu Tinggi Kawat Litz Tembaga Tertutup Sutra Berenamel
Kata kunci: 100/0.1Mm USTC Kawat Frekuensi Tinggi Suhu Tinggi Kawat Litz Tembaga Tertutup Sutra Berenamel
Menyoroti:

high temperature enameled litz wire

,

silk covered copper litz wire

,

high frequency ustc litz wire

Deskripsi Produk

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
Nylon served Litz wire offers advantages like enhanced mechanical protection and durability, improved insulation, and increased efficiency in high-frequency applications. The nylon serving provides a tough outer layer that protects against abrasion and mechanical stress, while the Litz construction of individual, insulated strands minimizes AC resistance. This combination makes the wire suitable for demanding environments and applications like motors, transformers, and high-frequency circuits.
Mechanical and Physical Advantages
  • The nylon serving provides strong mechanical protection against abrasion, bending, and stretching, increasing the wire's lifespan, especially in complex or demanding environments.
  • Mechanical strength: The nylon overcoat improves the wire's ability to withstand mechanical stress, making it suitable for high-speed winding applications.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire 0
Please send inquiries directly to request more information or quote!
