0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
Informasi Dasar
Tempat asal: CINA
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Spool dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: T/ t/ paypal
Menyediakan kemampuan: Memenuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0.1mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
Untaian: 100 Tegangan kerusakan: Min.1100
Bahan penutup: nilon Nama Produk: 0.03mm 0.05mm 0.08mm 0.1mm 0.2mm Kawat Frekuensi Tinggi Kawat Magnet Berenamel Kawat Litz Tembaga Te
Kata kunci: 0.03mm 0.05mm 0.08mm 0.1mm 0.2mm Kawat Frekuensi Tinggi Kawat Magnet Berenamel Kawat Litz Tembaga Te
Menyoroti:

enameled magnet wire silk covered

,

high frequency litz wire

,

copper litz wire with warranty

Deskripsi Produk

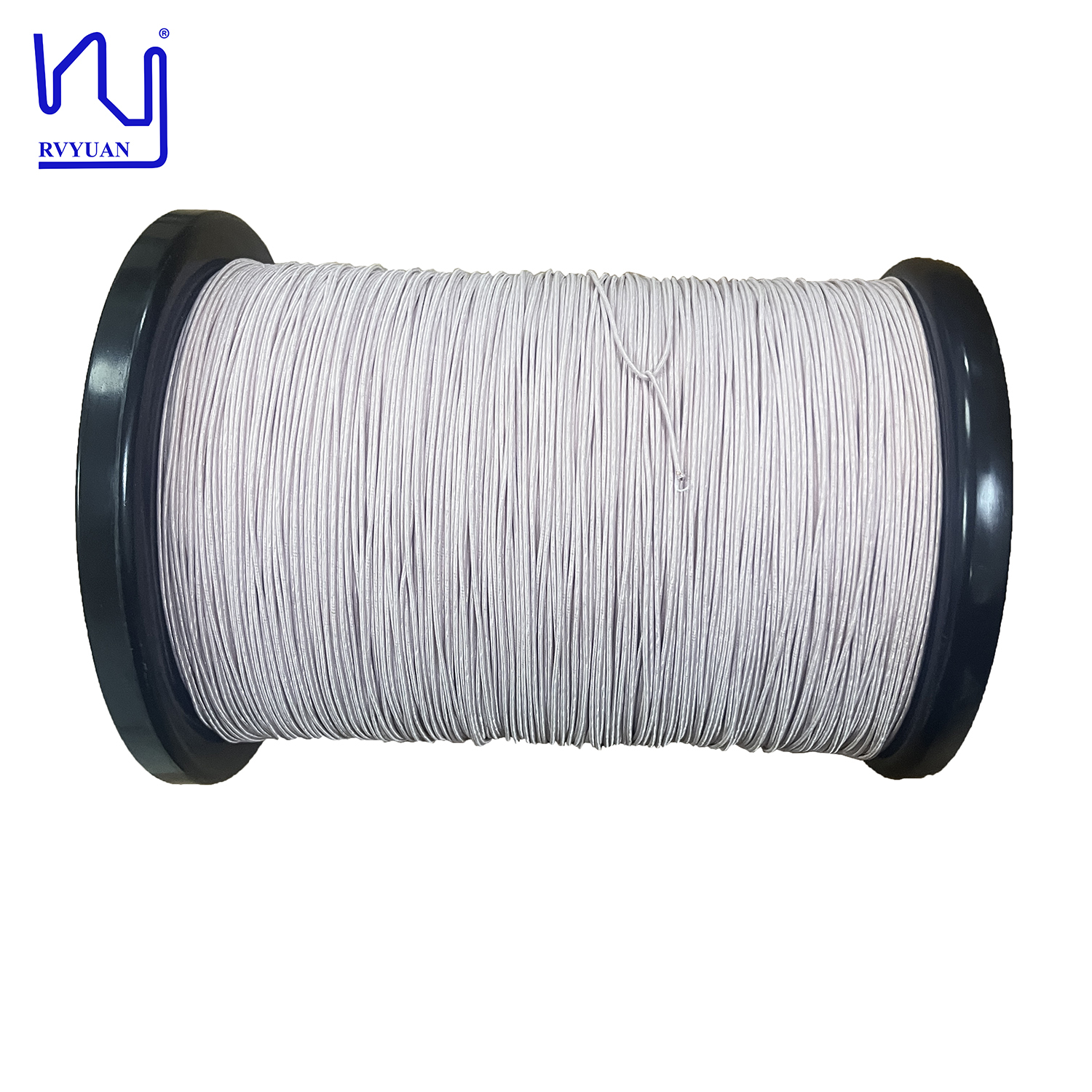

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
We can produce polyurethane-enameled copper wire with single strand diameters ranging from 0.03 mm to 0.5 mm and can fully customize it to your specific needs. In addition to this configuration, we can also produce single-strand conductors with up to 12,700 strands, depending on the appropriate strand size.
If you have specific design and customization requirements, please let us know and our technical team will be happy to assist you. The minimum order quantity for this type of conductor is typically 20 kg, but we also offer custom orders in smaller quantities to accommodate various project sizes.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire 0
Please send inquiries directly to request more information or quote!
