Customized silk covered litz wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer

Informasi Dasar
Tempat asal: CINA
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Spool dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: T/ t/ paypal
Menyediakan kemampuan: Memenuhi permintaan Anda
Informasi Detail
Diameter: 0.071mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
Untaian: 250 Tegangan kerusakan: 1300
Isolasi: Uew Nama Produk: Kawat Litz Tertutup Sutra Disesuaikan 0.025mm-0.5mm Kawat Litz Tembaga Litz Untuk Transformator
Kata kunci: Kawat Litz Tertutup Sutra Disesuaikan 0.025mm-0.5mm Kawat Litz Tembaga Litz Untuk Transformator
Menyoroti:

custom silk litz wire

,

stranded copper litz wire

,

transformer litz wire


Deskripsi Produk

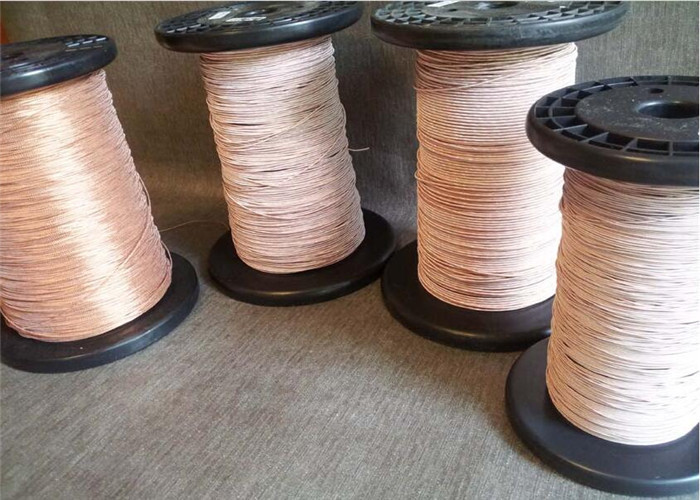

Customized Silk Covered Litz Wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer
Our company specializes in providing custom silk covered litz wire, with single wire sizes ranging from 0.025mm to 0.5mm. We offer a wide range of strand counts, from single-strand to 13,000 strands, ensuring that we can meet your specific needs. In addition to silk-covered litz wire, we also supply taped litz wire and flat taped litz wire. Our products are meticulously crafted to meet your system requirements, ensuring optimal performance and reliability. With a commitment to quality and customization, we work closely with our clients to deliver litz wire solutions that perfectly align with their applications. Trust us to provide the ideal litz wire tailored to your specifications.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.
