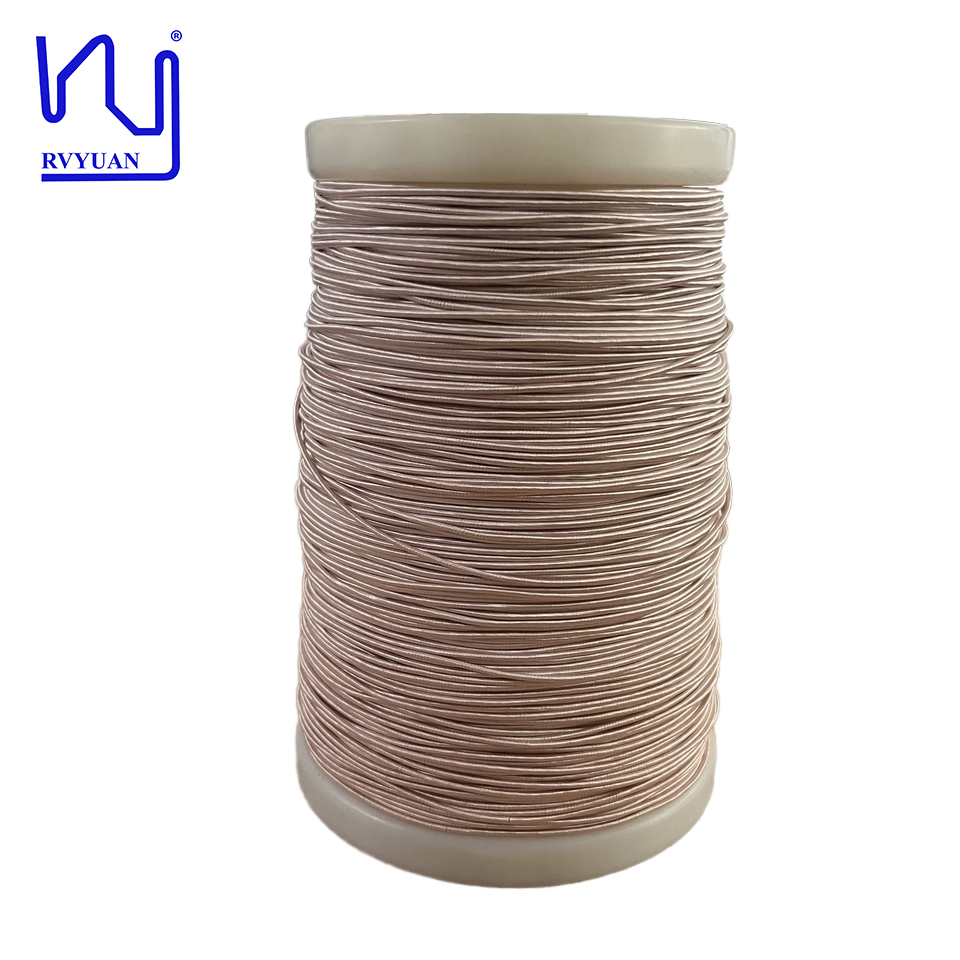

Custom 0.071mm Nylon Served Copper Litz Wire for Transformers

Informasi Dasar
Tempat asal: Cina
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Spool dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: T/ t/ paypal
Menyediakan kemampuan: Memenuhi permintaan Anda
Informasi Detail
Diameter: 0.071mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
Untaian: 250 Tegangan kerusakan: 1300
Isolasi: Uew Nama Produk: Kustom nilon 0,071mm disajikan kawat litz tembaga untuk transformator
Kata kunci: Kustom nilon 0,071mm disajikan kawat litz tembaga untuk transformator
Menyoroti:

custom nylon served litz wire

,

0.071mm copper litz wire

,

litz wire for transformers


Deskripsi Produk

Custom 0.071mm Nylon Served Copper Litz Wire for Transformers
With over 23 years of experience in litz wire production, we pride ourselves on our expertise and commitment to quality. Our extensive product line includes not only silk-covered litz wire, but also taped litz wire, taped flat litz wire, and stranded wire. This broad selection enables us to meet diverse application needs across a wide range of industries.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
Custom 0.071mm Nylon Served Copper Litz Wire for Transformers 0
We understand that every project is unique, so we're committed to providing customized solutions to meet your specific needs. Working closely with our customers, we ensure the final product meets their exact design specifications.
