2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire

Informasi Dasar
Tempat asal: Cina
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Spool dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: T/T/ Paypal
Menyediakan kemampuan: Memenuhi permintaan Anda
Informasi Detail
Diameter: 0.071mm Suhu: 155
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
Helai: 250 Tegangan kerusakan: 1300
Isolasi: UEW Nama Produk: 2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire
Kata kunci: 2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire
Menyoroti:

natural silk litz wire

,

0.071mm silk covered wire

,

250 natural silk litz


Deskripsi Produk

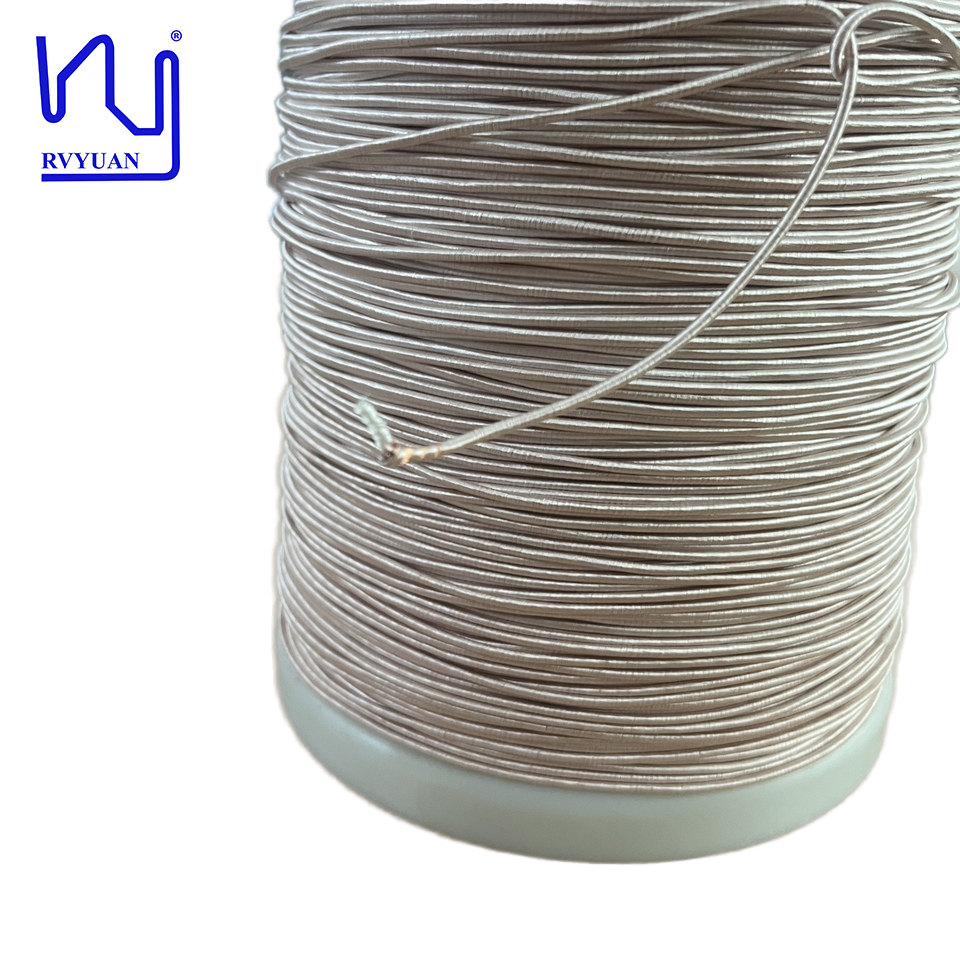

2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Product Description

We proudly introduce our premium Silk covered Litz Wire, a product meticulously crafted to meet the specific needs of our customers. This exceptional wire features a single 0.071mm enameled silver wire, finely twisted into 250 strands. Elegantly encased in natural silk, it not only looks great but also enhances performance. Our Silk covered Litz Wire is particularly well-suited for transformer winding and voice coil wire production, where precision and reliability are crucial.

Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire 0
