Rumah > Produk> Kawat Ustc Litz> 38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor

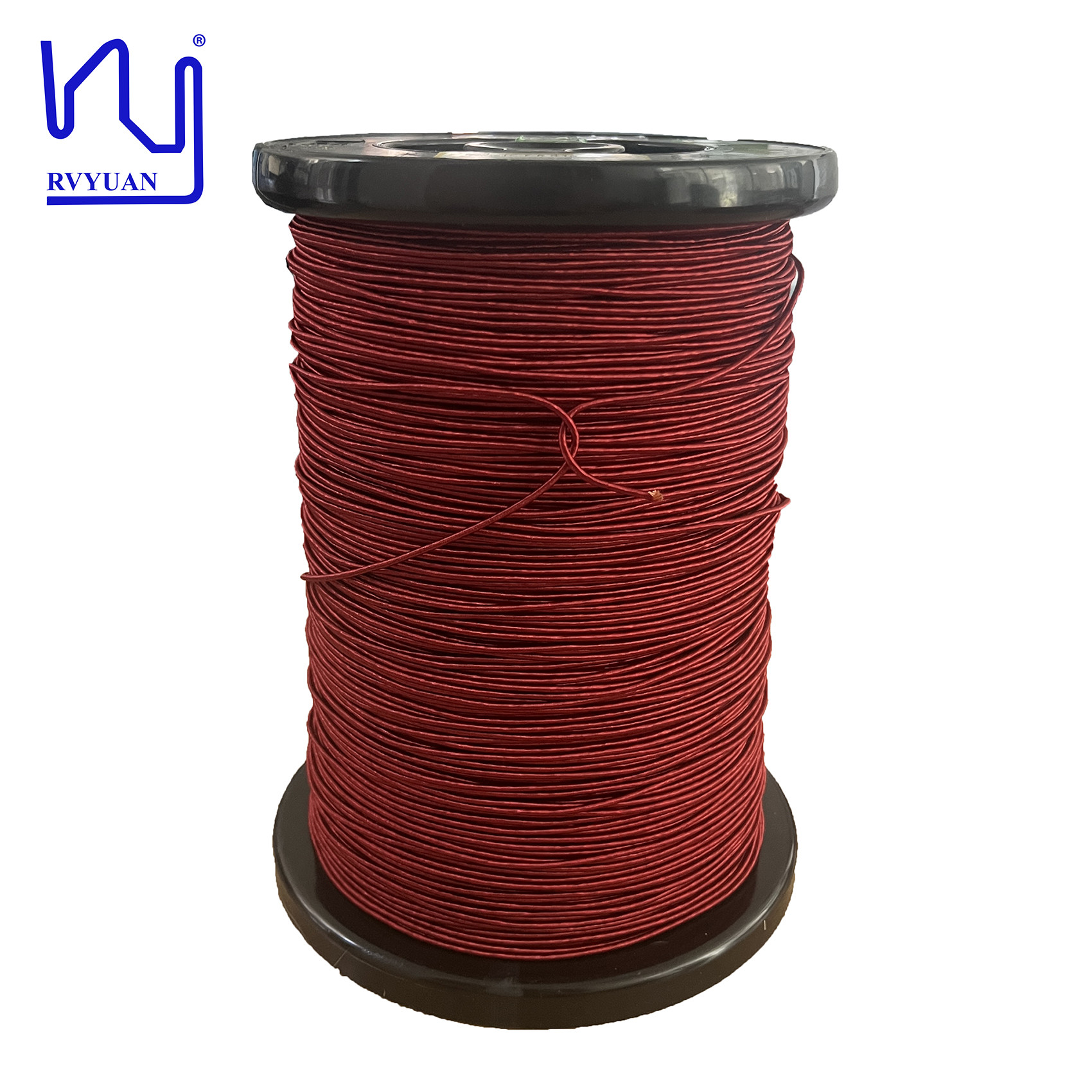

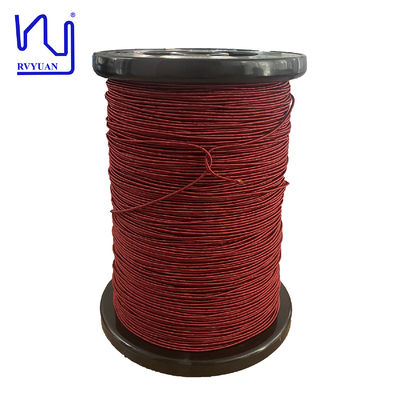

38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor

38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor
38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor
38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor
Informasi Dasar
Tempat asal: Cina
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Kumparan dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: Negosiasi
Menyediakan kemampuan: Penuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0.1mm Temperature: 155/180
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO AWG SIZE: 38
Conductor: Copper Strands: 200
Breakdown voltage: 1300 Insulation: UEW
Product name: High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Key word: High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire
Menyoroti:

Pure Copper Twisted Litz Wire

,

0.1mm Yarn Wrapped Litz Wire

,

Durable Twisted Litz Wire

Deskripsi Produk

High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire



What makes our silk covered litz wire unique is its customization options. We understand that different projects may require specific color schemes or aesthetic preferences. That’s why we offer a wide range of colored polyester yarns, allowing you to customize the wire to meet your unique needs. Whether you need a specific color to match your design or create a unique look for branding purposes, we have a high-performance wire that’s designed just for you.



Outgoing test of stranded wire Spec: 0.1x200 Model: 2USTC-F
Item Standard Test result
Outer conductor diameter(mm) 0.107-0.125 0.110-0.114
Conductor diameter(mm) 0.10±0.003 0.0980-0.10
Overall diameter (mm) Max.1.98 1.75-1.85
Pitch(mm) 29±5 √
Max resistance (Ω/m at20℃) Max. 0.01191 0.01088
Breakdown voltage Mini (V) 1100 3000



38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor 038 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor 1
