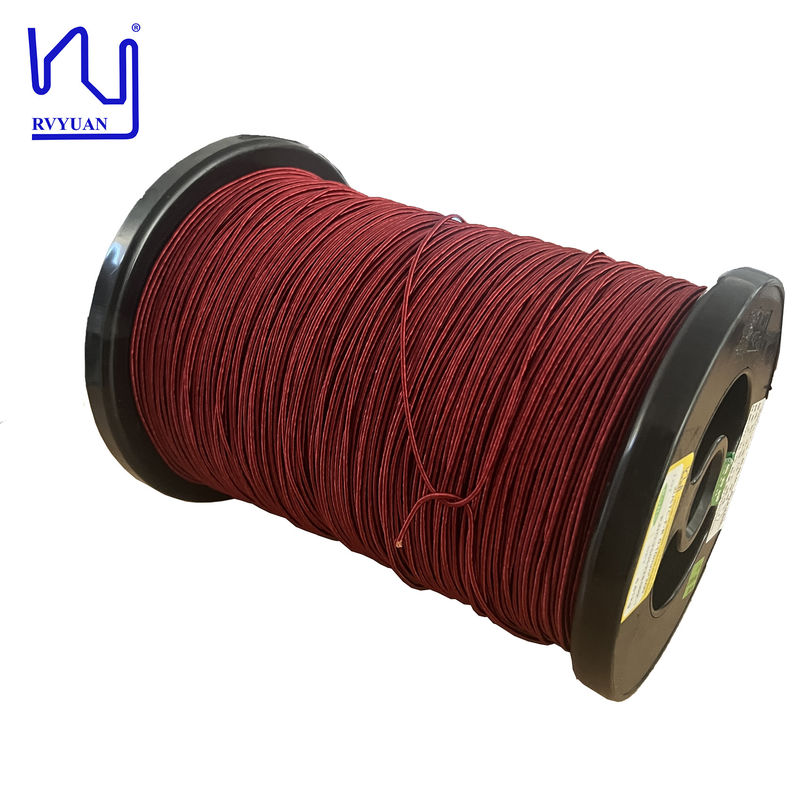

2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire

2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire
2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire
2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire
Informasi Dasar
Tempat asal: Cina
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Kumparan dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: Negosiasi
Menyediakan kemampuan: Penuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0.1mm Temperature: 155/180
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO AWG SIZE: 38
Conductor: Copper Strands: 200
Breakdown voltage: 1300 Insulation: UEW
Product name: 2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire Key word: 2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire
Menyoroti:

Red Polyester Covered Litz Wire

,

200 Strands Polyester Covered Litz Wire

,

Polyester Covered 0.1mm Litz Wire

Deskripsi Produk

2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire



This innovative wire features a unique bright red polyester outer covering that not only enhances aesthetics, but also offers exceptional durability and environmental resistance. Its inner core is carefully twisted with 200 strands of 0.1 mm enameled copper wire to ensure optimal conductivity and performance. Rated to 155 degrees Celsius, this wire is ideal for transformer applications because it can withstand the harsh environment of high frequency operation.



Outgoing test of stranded wire Spec: 0.1x200 Model: 2USTC-F
Item Standard Test result
Outer conductor diameter(mm) 0.107-0.125 0.110-0.114
Conductor diameter(mm) 0.10±0.003 0.0980-0.10
Overall diameter (mm) Max.1.98 1.75-1.85
Pitch(mm) 29±5 √
Max resistance (Ω/m at20℃) Max. 0.01191 0.01088
Breakdown voltage Mini (V) 1100 3000



2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire 02USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire 1
