Rumah > Produk> Kawat Ustc Litz> 0.10x200 Red Polyester Yarn Silk Covered Litz Wire

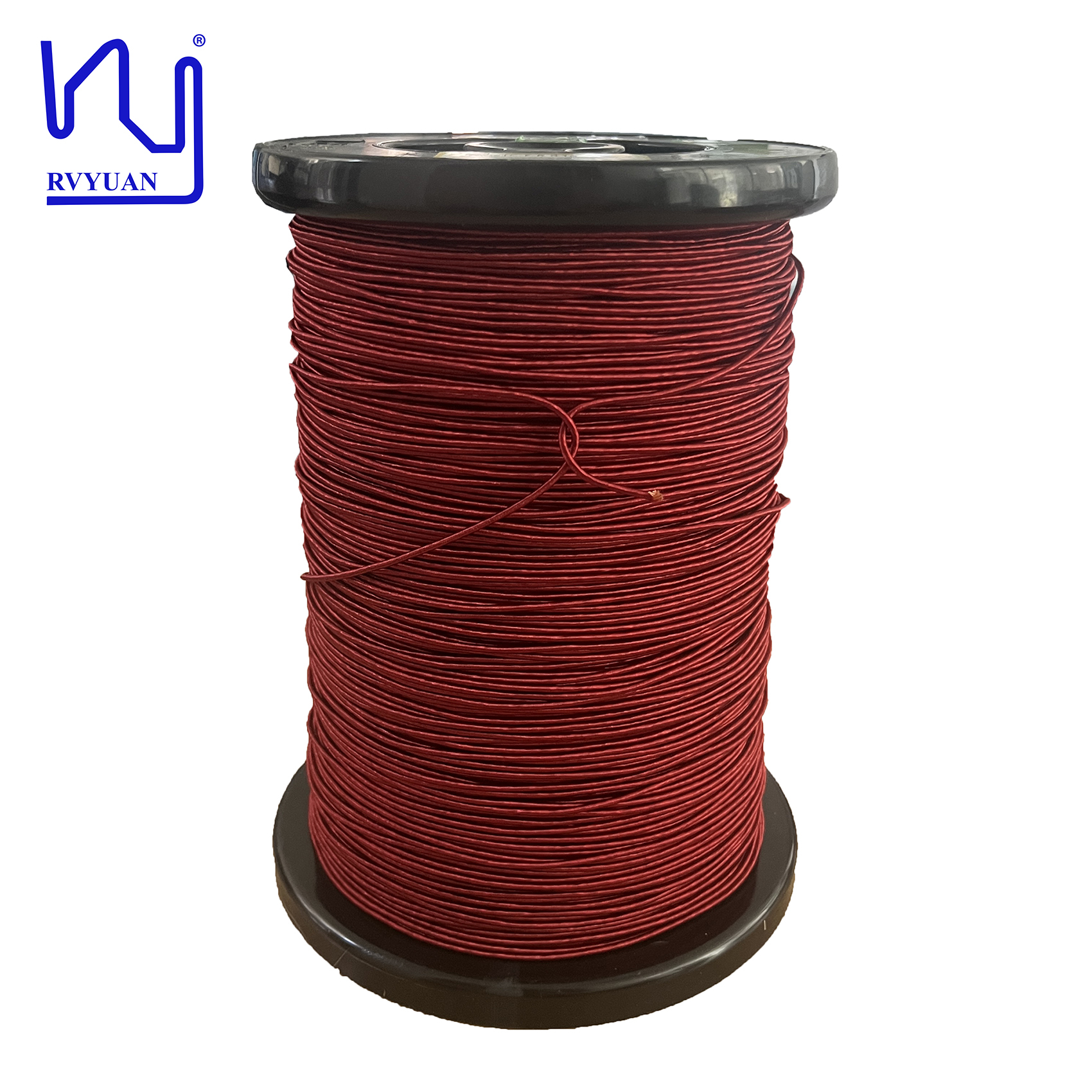

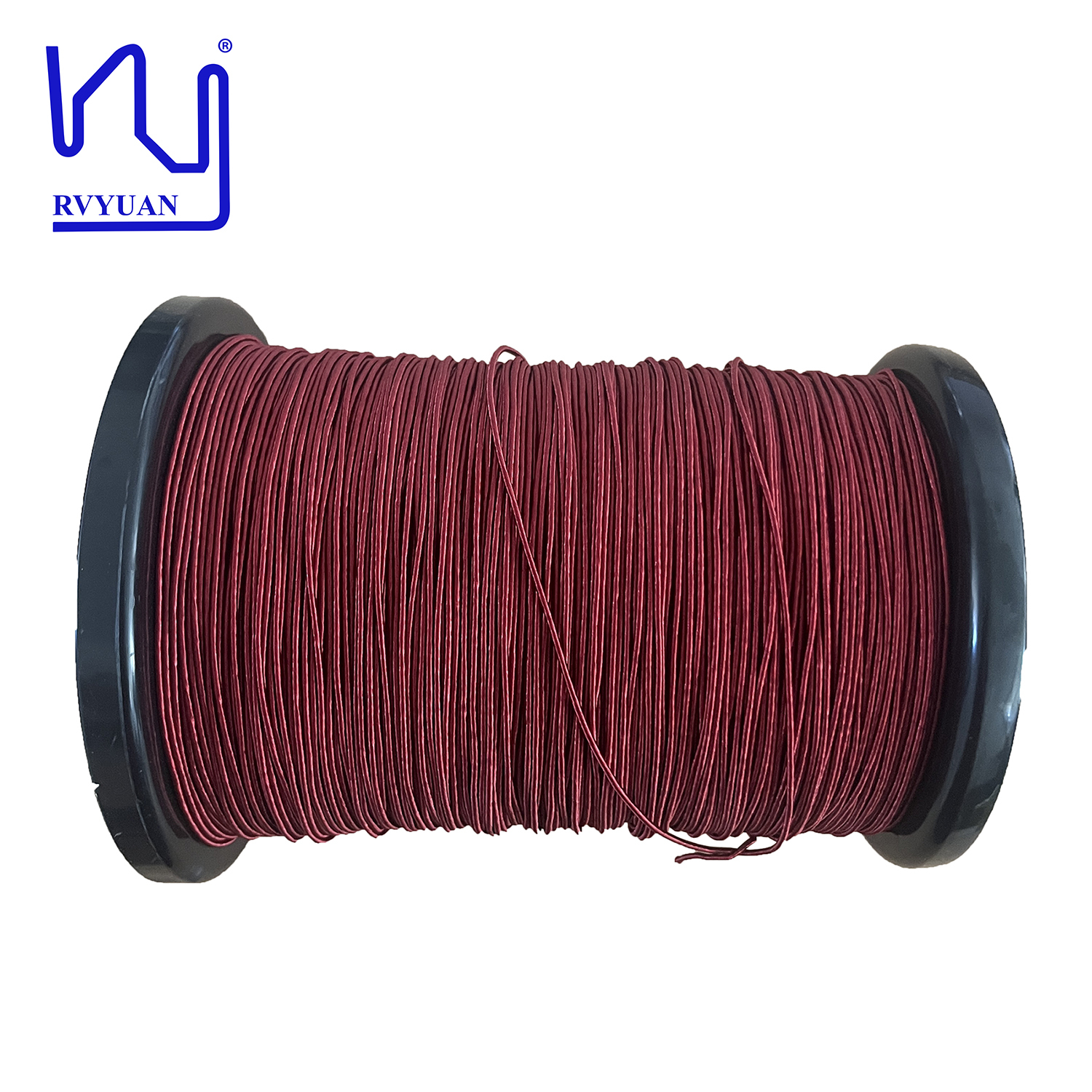

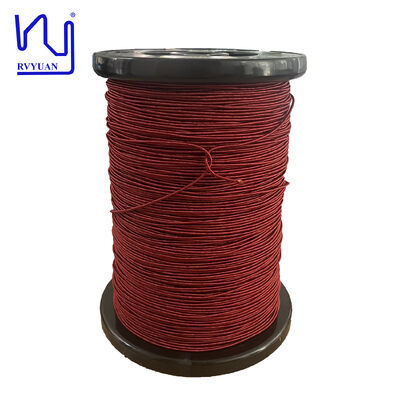

0.10x200 Red Polyester Yarn Silk Covered Litz Wire

0.10x200 Red Polyester Yarn Silk Covered Litz Wire
0.10x200 Red Polyester Yarn Silk Covered Litz Wire 0.10x200 Red Polyester Yarn Silk Covered Litz Wire 0.10x200 Red Polyester Yarn Silk Covered Litz Wire 0.10x200 Red Polyester Yarn Silk Covered Litz Wire 0.10x200 Red Polyester Yarn Silk Covered Litz Wire
Informasi Dasar
Tempat asal: Tian Jin, Cina
Nama merek: Ruiyuan
Sertifikasi: ROHS/UL/VDE/SGS/ISO9001:2008
Nomor model: 0,10x200 helai
Kuantitas min Order: 20
Harga terbaik Hubungi sekarang
Informasi Detail
Bahan Konduktor: Tembaga Diameter: Maks.1.98mm
Bahan Isolasi: Enamel Tegangan terukur: 1100V
Aplikasi: Transformator HF, in-/konverter HF, transceiver HF, Audio.. Tipe Konduktor: Terdampar
Membentuk: Bulat Ukuran kawat tunggal: 0,1mm(0 inci)
Suhu kerja: 155/180 Jenis: Terisolasi
Nama Produk: disajikan kawat litz Bahan pembungkus: poliester

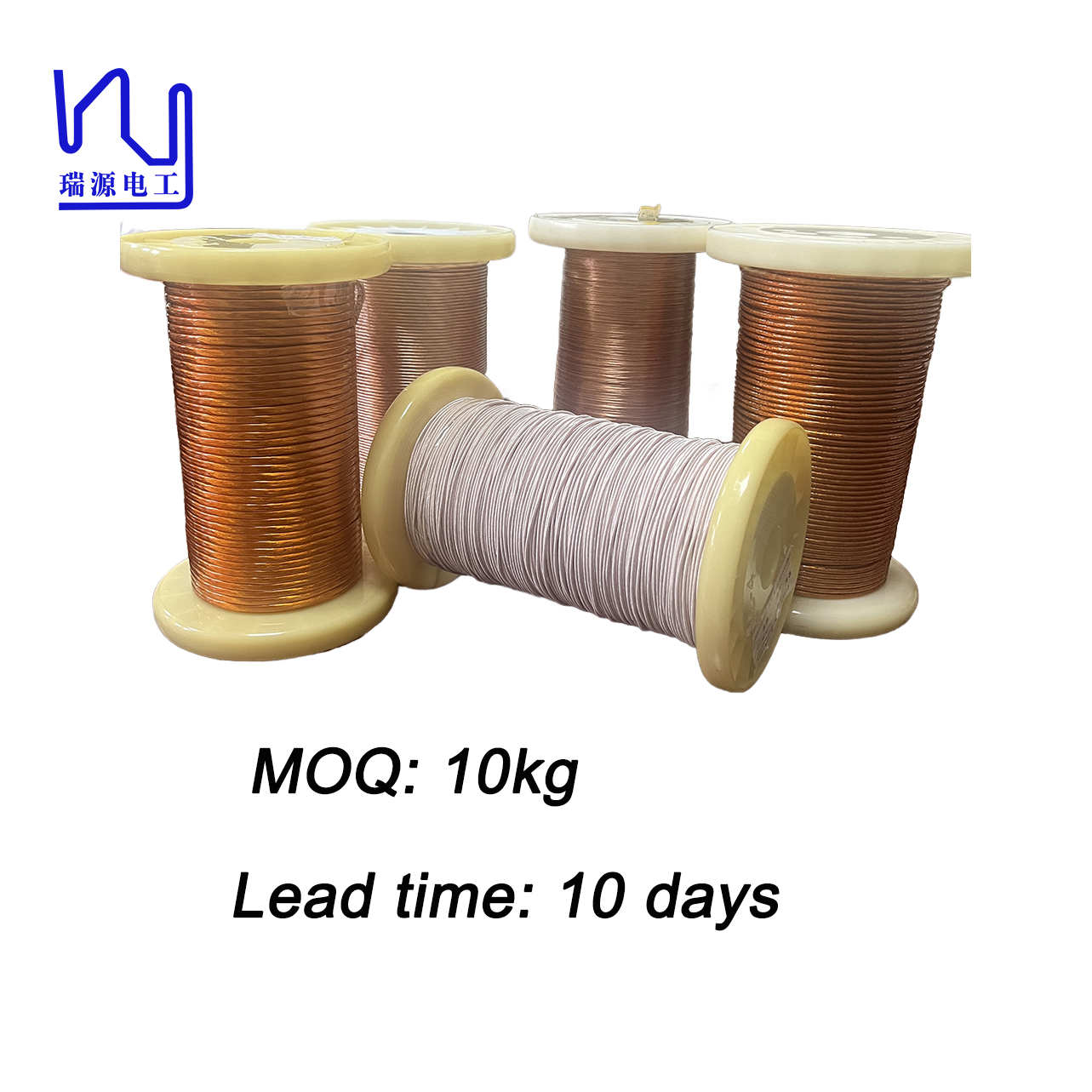

MOQ: 10kg Standar: JISC3202
Tegangan Kerusakan: menit. 1.10KV Od: 1,75-1,85mm
Kemasan: Karton/palet kayu/seperti yang ditentukan Waktu Pengiriman: 7-15 HARI
Pembayaran: Paypal\TT\Western Union\ Jaminan Perdagangan
Menyoroti:

0.10x200 polyester yarn covered litz wire

,

red silk covered litz wire

,

ustc litz wire 0.10x200

Deskripsi Produk

Product Overview: 0.10x200 Red Polyester Yarn Silk Covered Litz Wire The 2USTC-F 0.10x200 polyester filament served litz wire is engineered for high-frequency applications requiring dimensional stability and mechanical protection. Each strand is served with polyester yarn under optimized tension, delivering flexibility while preventing splicing and spring-up during cutting and post-processing. Technical Specifications Product Name 2USTC-F 0.10x200 Polyester Filament Served

Label:

self bonding kawat untai tipis,

kawat untai tipis berenamel,

kawat untai tipis 40 awg

Rincian kontak
Rebecca Li

Nomor telepon : +8613920472299

Ada apa : +8615516180251
