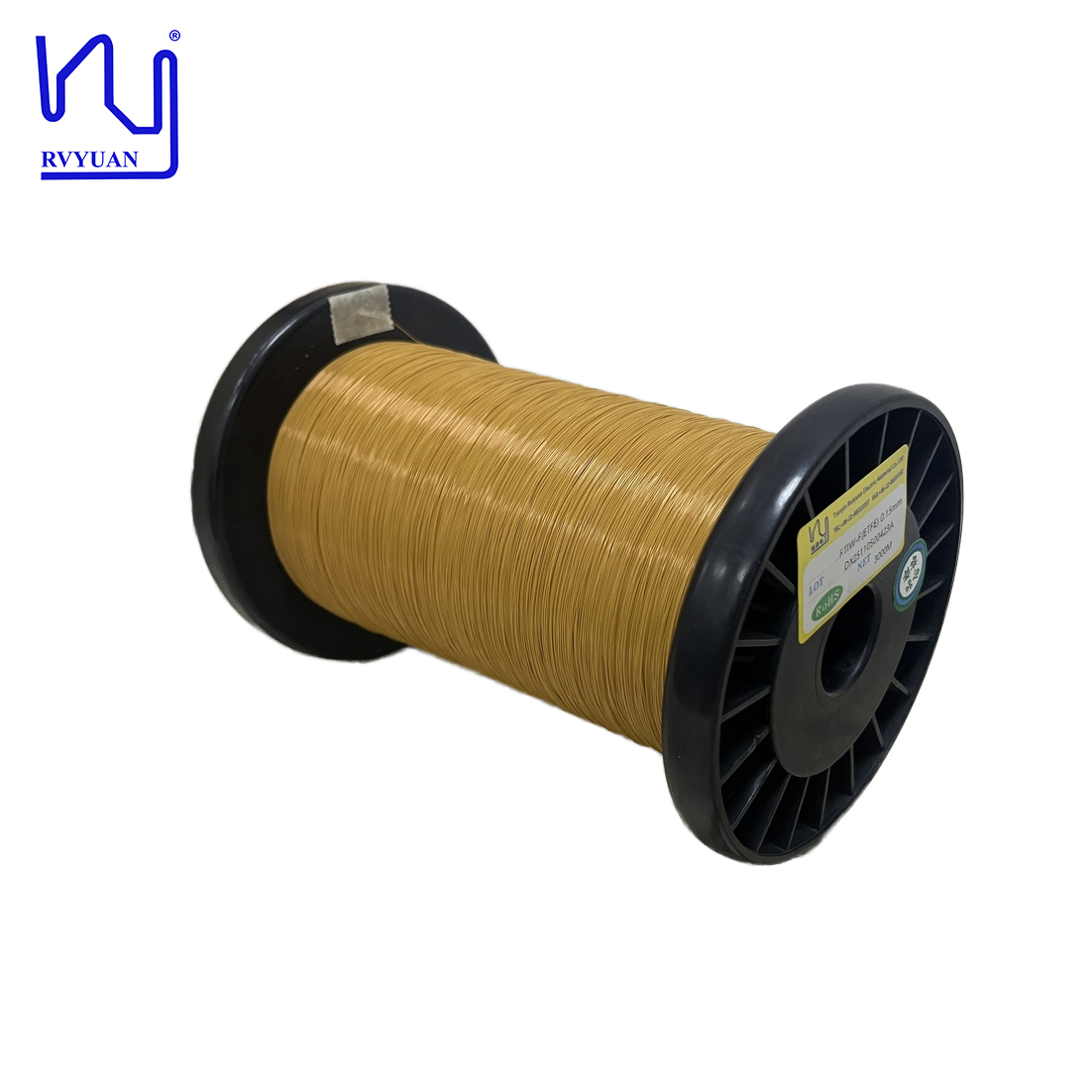

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer

Informasi Dasar

Tempat asal:	Tiongkok
Nama merek:	RVYUAN
Sertifikasi:	UL/ISO9001/ISO14001/RoHS/Reach
Nomor model:	0.15mm

Kuantitas min Order:	3000 meteran
Harga:	negotiable
Kemasan rincian:	karton
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	T/t/paypal
Menyediakan kemampuan:	1Ton/Bulan

Harga terbaik Hubungi sekarang

Informasi Detail

Nama Produk:	TIW-F 0.15mm Konduktor Tembaga Kawat Terisolasi Babat Untuk Transformator	Peringkat termal:	155
Diameter kawat tunggal:	0.15mm	Bahan konduktor:	Tembaga
Insulasi:	ETFE
Menyoroti:	0.15mm triple insulated wire , copper conductor transformer wire , TIW-F triple insulated wire

Deskripsi Produk

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer features excellent chemical and heat resistance. ETFE exhibits exceptional resistance to a wide range of chemicals, solvents, oils, and radiation, making it ideal for transformer manufacturing.

Excellent chemical and heat resistance properties
Ideal for transformer manufacturing applications
Small batch customization available (minimum 3,000 meters)
ETFE insulated litz wire options available
Custom size and strand configurations

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm(Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm(min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15%(min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm(max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm(min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault(max)	0 \| 0 \| 0
Resistance	1037Ω,km(max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV(min)	16.6 \| 17 \| 17.6
Solderability(±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1,000 meters. Our professional team provides technical support and custom specifications are available upon request.
