UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating

Informasi Dasar
Tempat asal: CINA
Nama merek: RVYUAN
Sertifikasi: UL/ISO9001/ISO14001/RoHS/Reach
Nomor model: 0.1mm
Kuantitas min Order: 1000 meteran
Harga: negotiable
Kemasan rincian: Karton
Waktu pengiriman: 7 hari
Syarat-syarat pembayaran: T/t/paypal
Menyediakan kemampuan: 1Ton/Bulan
Informasi Detail
Nama Produk: UL Safety 0.1mmx250 Strands Tiw Litz Wire Etfe Extruded Coating Peringkat termal: 155
Diameter kawat tunggal: 0.1mm Bahan konduktor: Tembaga
Jumlah untaian: 250 Insulasi: ETFE
Menyoroti:

UL safety Litz wire ETFE coating

,

TIW Litz wire 250 strands

,

ETFE extruded triple insulated wire


Deskripsi Produk

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating
The combination of these properties makes ETFE insulated litz wire particularly suitable for high-frequency transformer winding applications where reliability and performance are critical. Its lightweight and flexible design, coupled with its excellent electrical performance, makes it the first choice for engineers and designers seeking efficient high-frequency wiring solutions.
Product Specifications
Characteristics Technical Requests Sample 1 Sample 2 Sample 3 Conclusion
Appearance Smooth & Clean OK OK OK OK
Diameter of single wire 0.10±0.003mm 0.100 0.100 0.099 OK
Thickness of Enamel ≥ 0.004mm 0.006 0.007 0.008 OK
OD of single wire 0.105-0.109mm 0.106 0.107 0.107 OK
Twist Pitch S28±2 OK OK OK OK
Insulation Thickness Min.0.1mm 0.12 0.12 0.12 OK
OD of Litz Wire Max. 2.2mm 2.16 2.16 2.12 OK
DC Resistance Max.9.81 Ω/km 9.1 9.06 9.15 OK
Elongation ≥ 13 % 23.1 21.9 22.4 OK
Breakdown Voltage ≥ 5K V 8.72 9.12 8.76 OK
Pin Hole 0 hole/5m 0 0 0 OK

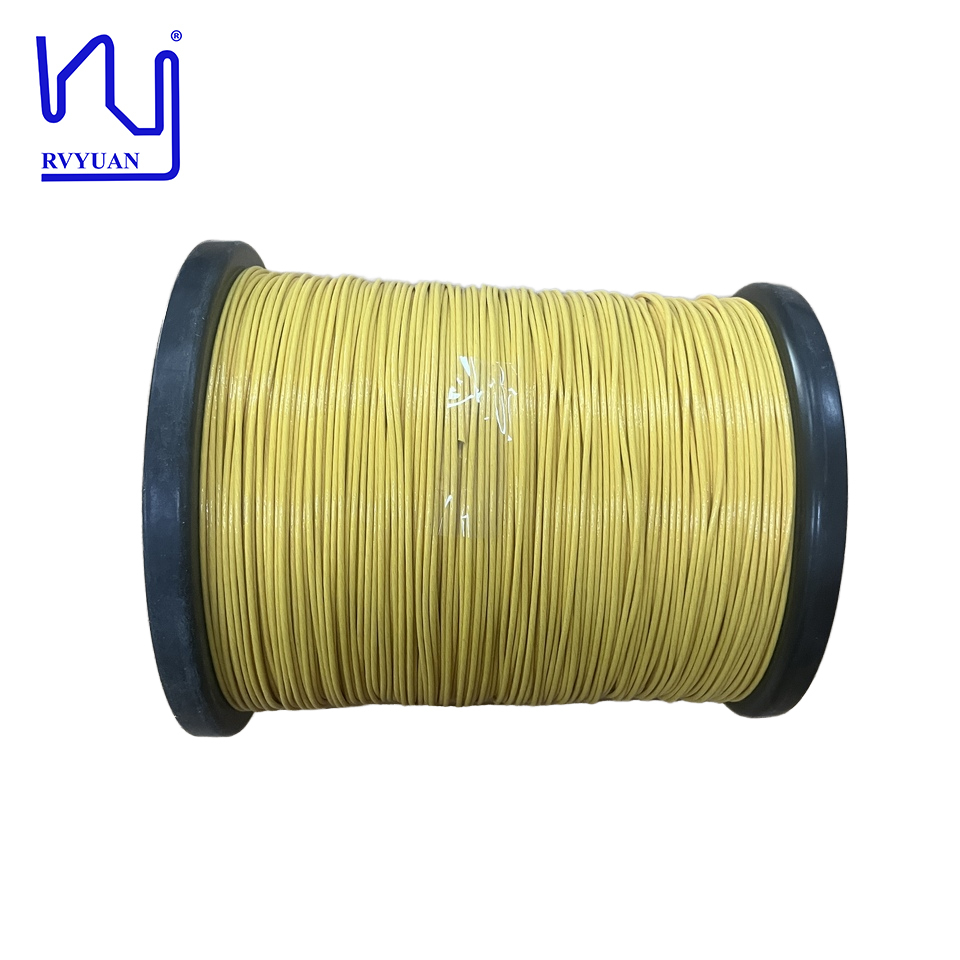

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating 0
Customization & Support
We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
