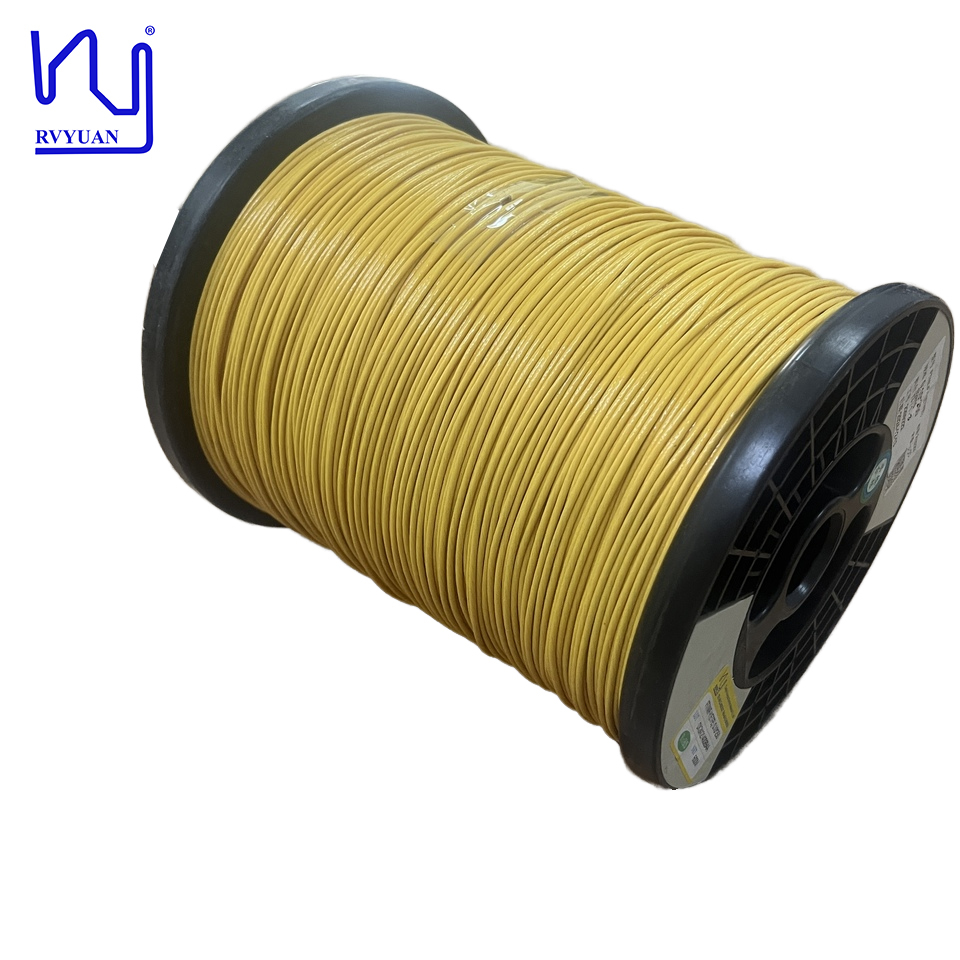

Triple insulated wire 155℃ 0.1mm*250 ETFE/PTFE Copper Litz Wire For Transformer

Triple insulated wire 155℃ 0.1mm*250 ETFE/PTFE Copper Litz Wire For Transformer
Triple insulated wire 155℃ 0.1mm*250 ETFE/PTFE Copper Litz Wire For Transformer
Triple insulated wire 155℃ 0.1mm*250 ETFE/PTFE Copper Litz Wire For Transformer
Informasi Dasar
Tempat asal: CINA
Nama merek: RVYUAN
Sertifikasi: UL/ISO9001/ISO14001/RoHS/Reach
Nomor model: 0.1mm
Kuantitas min Order: 1000 meteran
Harga: negotiable
Kemasan rincian: Karton
Waktu pengiriman: 7 hari
Syarat-syarat pembayaran: T/t/paypal
Menyediakan kemampuan: 1Ton/Bulan
Harga terbaik Hubungi sekarang
Informasi Detail
Nama Produk: Kawat terisolasi triple 155 ℃ 0.1mm*250 ETFE/PTFE Tembaga litz kawat untuk transformator Peringkat termal: 155
Diameter kawat tunggal: 0.1mm Bahan konduktor: Tembaga
Jumlah untaian: 250 Insulasi: ETFE
Menyoroti:

Triple insulated ETFE PTFE wire

,

155℃ high temperature Litz wire

,

0.1mm transformer copper wire

Deskripsi Produk

Triple insulated wire 155℃ 0.1mm*250 ETFE/PTFE Copper Litz Wire For Transformer
The conductors are insulated with ETFE (ethylene tetrafluoroethylene), a high-performance polymer known for its excellent heat and chemical resistance. ETFE is rated for temperatures up to 155°C, ensuring the conductors perform effectively in a variety of harsh conditions. The thinner walls of the winding wires allow for efficient use of space, making them particularly suitable for primary applications in multi-conductor configurations.
Technical Specifications
Characteristics Technical Requests Sample 1 Sample 2 Sample 3 Conclusion
Appearance Smooth & Clean OK OK OK OK
Diameter of single wire 0.10±0.003mm 0.100 0.100 0.099 OK
Thickness of Enamel ≥ 0.004mm 0.006 0.007 0.008 OK
OD of single wire 0.105-0.109mm 0.106 0.107 0.107 OK
Twist Pitch S28±2 OK OK OK OK
Insulation Thickness Min.0.1mm 0.12 0.12 0.12 OK
OD of Litz Wire Max. 2.2mm 2.16 2.16 2.12 OK
DC Resistance Max.9.81 Ω/km 9.1 9.06 9.15 OK
Elongation ≥ 13 % 23.1 21.9 22.4 OK
Breakdown Voltage ≥ 5K V 8.72 9.12 8.76 OK
Pin Hole 0 hole/5m 0 0 0 OK
Triple insulated wire 155℃ 0.1mm*250 ETFE/PTFE Copper Litz Wire For Transformer 0
We have a professional team to provide technical support. Custom specifications available upon request.
