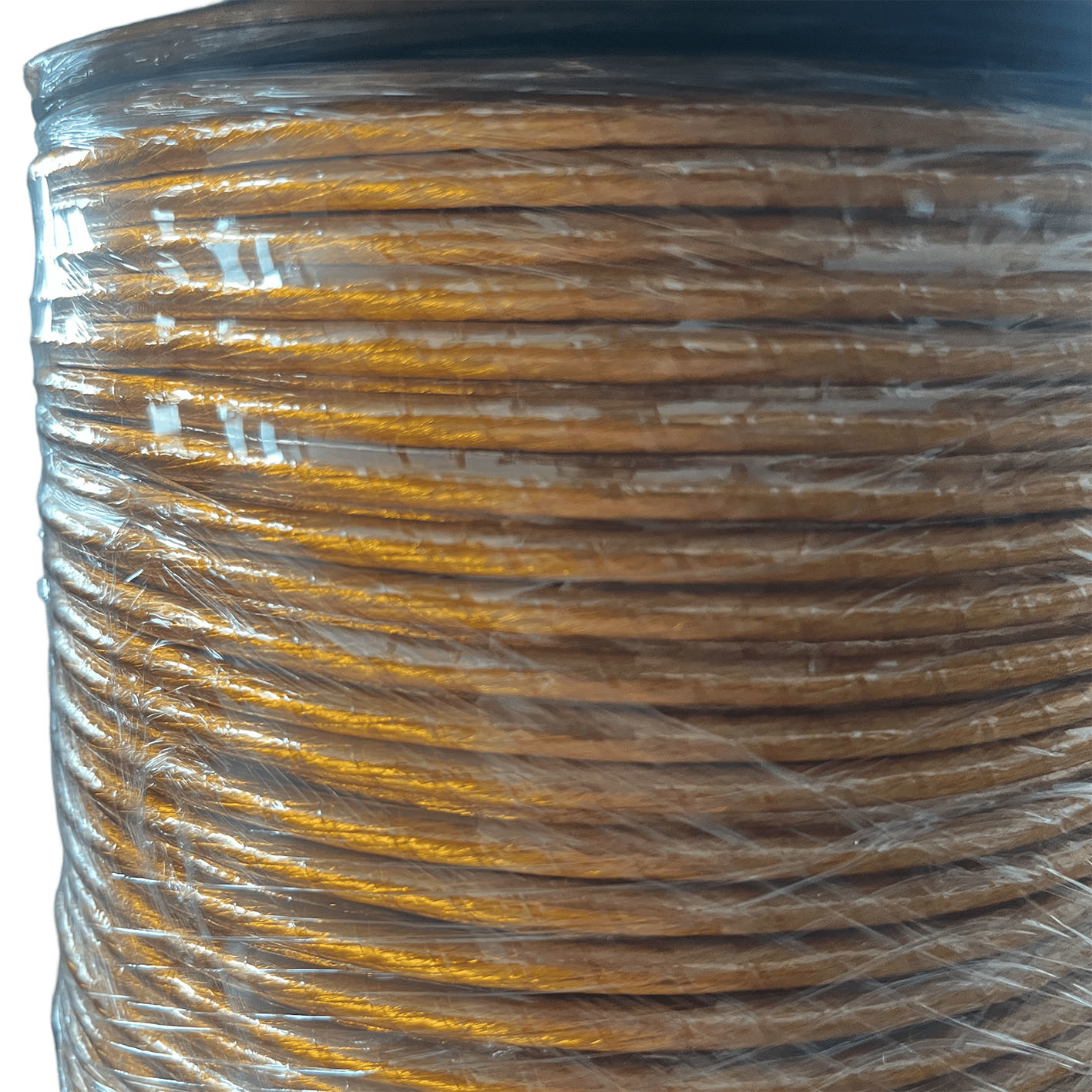

2UEW-H-PI 0.1mm*1500 Kapton taped litz wire For Transformer

2UEW-H-PI 0.1mm*1500 Kapton taped litz wire For Transformer
2UEW-H-PI 0.1mm*1500 Kapton taped litz wire For Transformer
2UEW-H-PI 0.1mm*1500 Kapton taped litz wire For Transformer
Informasi Dasar
Tempat asal: Cina
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 20kg
Harga: Bisa dinegosiasikan
Kemasan rincian: Kumparan dengan karton
Waktu pengiriman: 15 hari kerja
Syarat-syarat pembayaran: T/T/Paypal
Menyediakan kemampuan: Penuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0,1 mm Suhu: 180
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
helai: 180 Tegangan Kerusakan: Minimal 6000
Kata Kunci: 2UEW-H-PI 0.1mm*1500 Kapton ditempel kawat litz Untuk Transformer
Menyoroti:

0.1mm Kapton taped litz wire

,

1500 Kapton taped transformer wire

,

Copper litz wire for transformers

Deskripsi Produk

2UEW-H-PI 0.1mm*1500 Kapton Taped Litz Wire for Transformer
This custom-engineered PI taped litz wire is specifically designed for high-reliability and high-voltage transformer applications. The conductor consists of 1,500 individual strands of 0.1mm (38 AWG) solderable polyurethane enameled copper wire, precision twisted together to form a compact, flexible, and high-density bundle. The entire stranded core is wrapped with high-performance polyimide (PI) tape serving as the primary insulation layer.
Technical Specifications
Parameter Technical Requirement Sample 1 Sample 2
Single Wire Diameter (mm) 0.107-0.125 0.110-0.113 0.110-0.113
Conductor (mm) 0.10±0.003 0.098-0.10 0.098-0.10
O.D. (mm) ≤5.88 5.36-5.70 5.36-5.68
Resistance (Ω/m) ≤0.001587 0.001476 0.001484
Dielectric Strength (V) ≥6000 11500 12800
Pitch (mm) 65±10 65 65
No. of Strands 1500 60x5x5 60*5*5
Tape Overlap (%) ≥50 54 54
Winding NO crack ok ok
2UEW-H-PI 0.1mm*1500 Kapton taped litz wire For Transformer 0
All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.

Label:

disajikan kawat litz,

kawat litz persegi panjang,

kawat litz solder
