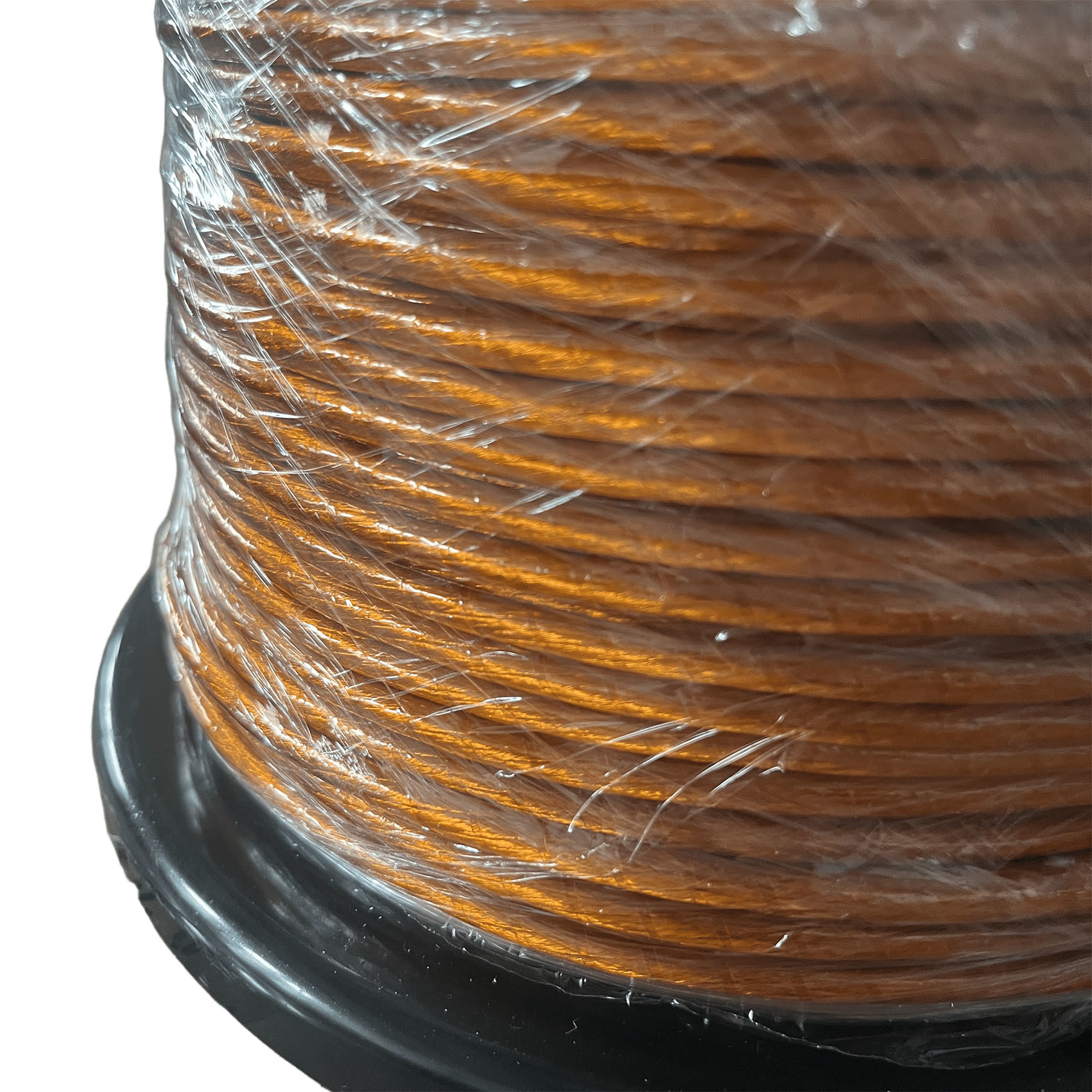

Taped Litz Wire UL Certificated 6000V Polyimide Film Wrapped Copper Litz Wire

Informasi Dasar

Tempat asal:	Cina
Nama merek:	RVYUAN
Sertifikasi:	ISO9001/ISO14001 /UL/SGS
Nomor model:	USTC

Kuantitas min Order:	20kg
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kumparan dengan karton
Waktu pengiriman:	15 hari kerja
Syarat-syarat pembayaran:	T/T/Paypal
Menyediakan kemampuan:	Penuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Diameter:	0,1 mm	Suhu:	180
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO	Konduktor:	Tembaga
helai:	180	Tegangan Kerusakan:	Minimal 6000
Kata Kunci:	Kawat Litz yang Ditempel Film Polimida 6000V Bersertifikat UL Dibungkus Kawat Litz Tembaga
Menyoroti:	UL certified taped Litz wire , 6000V polyimide Litz wire , copper Litz wire with polyimide film

Deskripsi Produk

Taped Litz Wire UL Certificated 6000V Polyimide Film Wrapped Copper Litz Wire

This UL-certified 6000V polyimide film wrapped copper litz wire delivers exceptional performance for demanding transformer applications.

Advantages for Transformer Winding

High Voltage Resistance: Kapton tape provides excellent dielectric strength, making this wire ideal for high-voltage transformers requiring reliable insulation above 6,000V.
Superior Thermal Stability: With a 180°C thermal rating, the PI tape maintains electrical and mechanical properties under extreme heat, ensuring long-term reliability.
Reduced High-Frequency Losses: Litz construction with 1,200 fine insulated strands minimizes skin effect and proximity effect losses, improving efficiency in high-frequency transformers.
Enhanced Mechanical Protection: Outer Kapton layer provides excellent resistance to abrasion, cut-through, and chemical exposure throughout the transformer's operational life.

Technical Specifications

Item	Technical Requirement	Sample 1
Single Wire Diameter (mm)	0.107-0.125	0.110-0.113
Conductor (mm)	0.10±0.003	0.098-0.10
O.D. (mm)	≤5.28	4.57-5.03
Resistance (Ω/m)	≤0.001984	0.0011833
Dielectric Strength (V)	≥6000	13100
Pitch (mm)	65±10	65
No. Of Strands	1200	48x5x5
Tape Overlap (%)	≥50	54
Winding	NO crack	ok

All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
