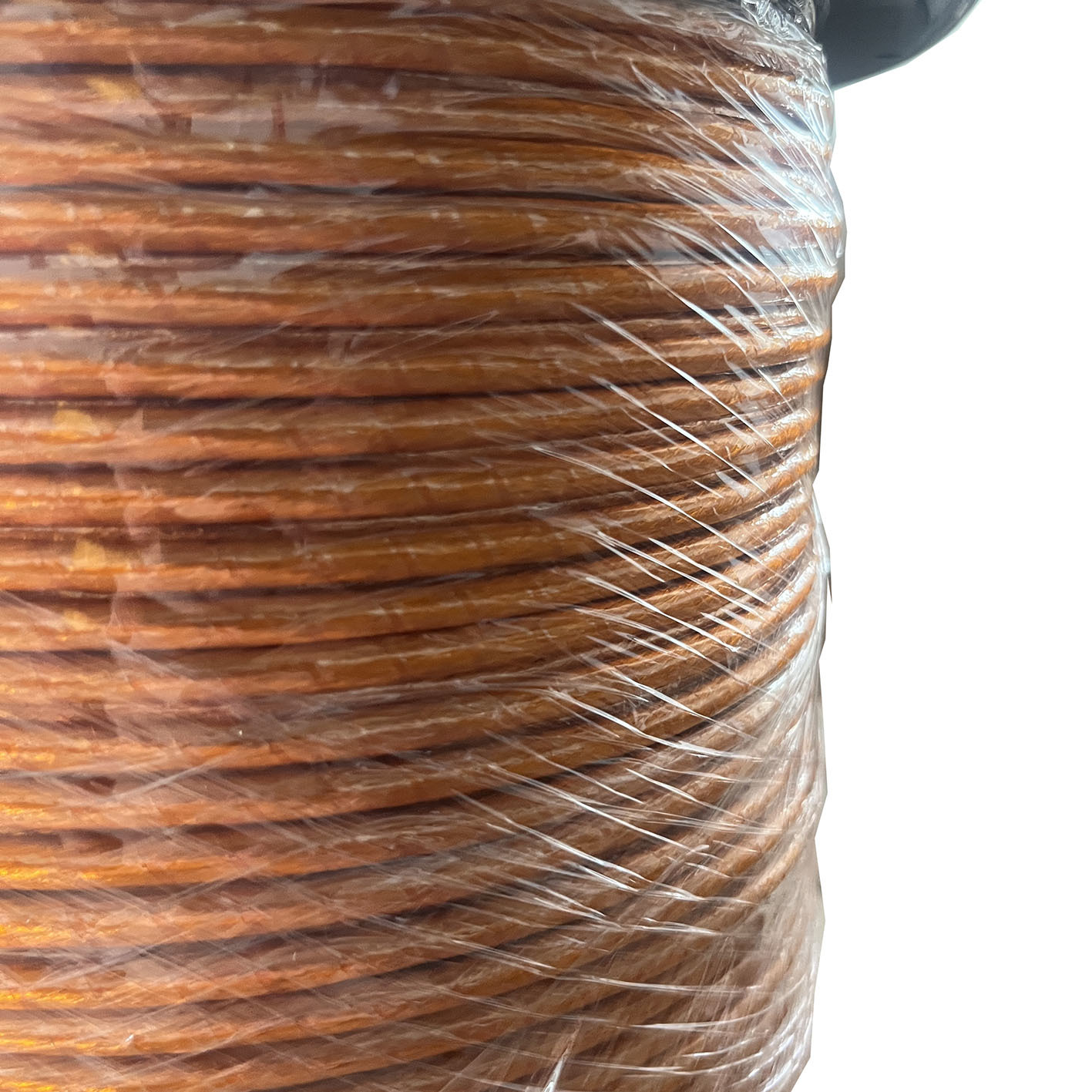

6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire

6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire
6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire
6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire
Informasi Dasar
Tempat asal: Cina
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 20kg
Harga: Bisa dinegosiasikan
Kemasan rincian: Kumparan dengan karton
Waktu pengiriman: 15 hari kerja
Syarat-syarat pembayaran: T/T/Paypal
Menyediakan kemampuan: Penuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0,1 mm Suhu: 180
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
helai: 180 Tegangan Kerusakan: Minimal 6000
Kata Kunci: Tegangan 6KV Menahan PI Direkam Kawat Litz Frekuensi Tinggi Kawat Untai Tembaga
Menyoroti:

6KV withstand PI taped Litz wire

,

high frequency copper stranded wire

,

PI taped copper Litz wire

Deskripsi Produk

6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire
This high-frequency Litz wire features excellent solderable enameled copper strands that simplify termination processes, saving valuable time and labor during transformer assembly. We accommodate projects of all sizes, including small-batch custom orders with competitive pricing tailored to your specific requirements.
Technical Specifications
Parameter Technical Requirement Sample 1 Measurement
Single Wire Diameter (mm) 0.107-0.125 0.110-0.113
Conductor (mm) 0.10±0.003 0.098-0.10
Outer Diameter (mm) ≤5.28 4.57-5.03
Resistance (Ω/m) ≤0.001984 0.0011833
Dielectric Strength (V) ≥6000 13100
Pitch (mm) 65±10 65
Number of Strands 1200 48x5x5
Tape Overlap (%) ≥50 54
Winding No crack OK
6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire 0
All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
