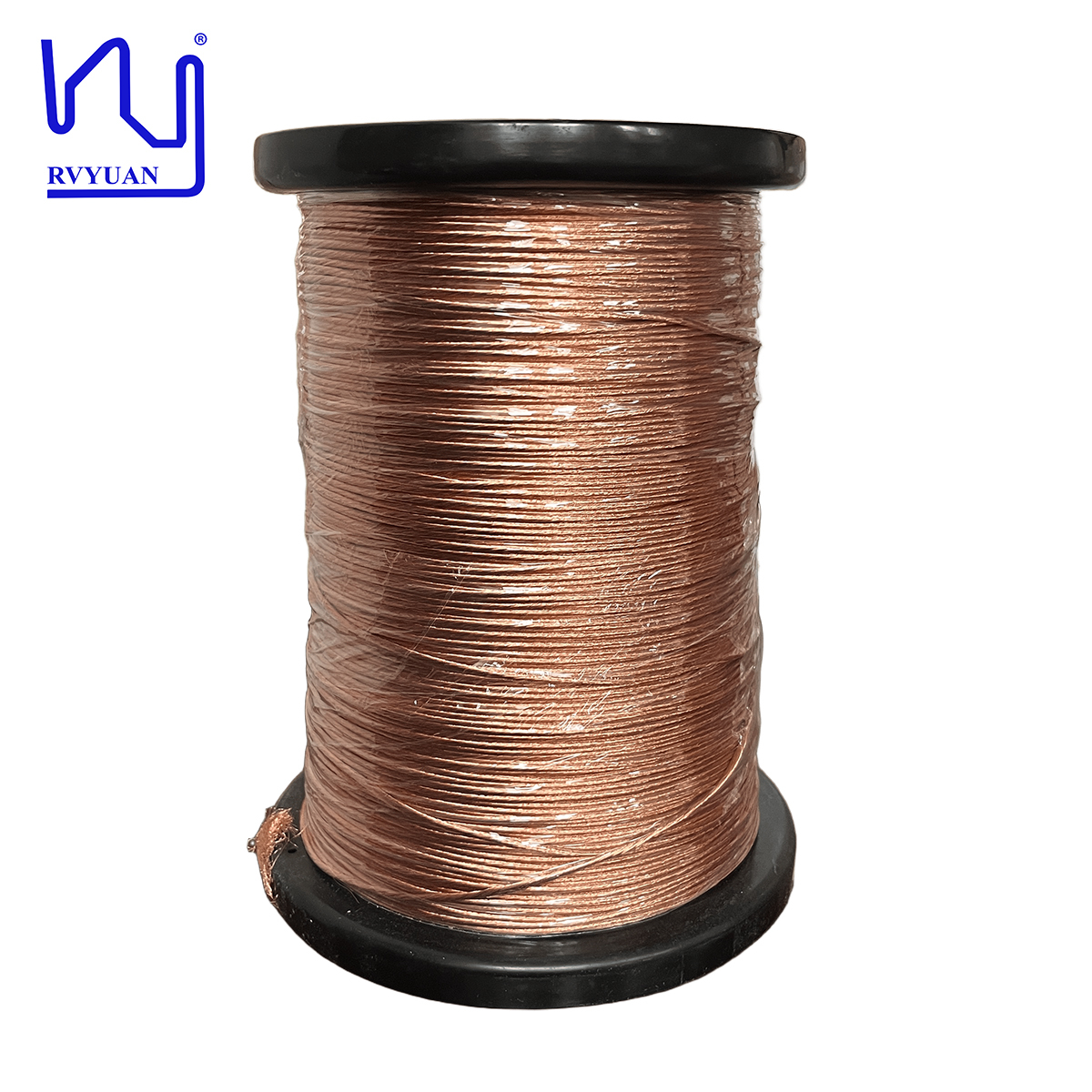

Multiple strands litz wires 0.1mm *180 enameled Copper Wires For Transformer

Multiple strands litz wires 0.1mm *180 enameled Copper Wires For Transformer
Multiple strands litz wires 0.1mm *180 enameled Copper Wires For Transformer
Multiple strands litz wires 0.1mm *180 enameled Copper Wires For Transformer
Informasi Dasar
Tempat asal: Cina
Nama merek: RVYUAN
Sertifikasi: ISO9001/ISO14001 /UL/SGS
Nomor model: USTC
Kuantitas min Order: 20kg
Harga: Bisa dinegosiasikan
Kemasan rincian: Kumparan dengan karton
Waktu pengiriman: 15 hari kerja
Syarat-syarat pembayaran: T/T/Paypal
Menyediakan kemampuan: Penuhi permintaan Anda
Harga terbaik Hubungi sekarang
Informasi Detail
Diameter: 0,1 mm Suhu: 180
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO Konduktor: Tembaga
helai: 180 Tegangan Kerusakan: Minimal 1100
Kata Kunci: Beberapa helai kabel litz 0,1 mm * 180 Kabel Tembaga berenamel Untuk Transformator
Menyoroti:

0.1mm enameled copper litz wire

,

multiple strands litz wire for transformer

,

180 strand enameled copper wire

Deskripsi Produk

Multiple Strands Litz Wires 0.1mm × 180 Enameled Copper Wires for Transformer
Our multiple strands litz wires with 0.1mm × 180 enameled copper conductors are engineered for high-frequency transformer applications. Whether you're developing compact switch mode power supplies, high-frequency transformers, or induction heating coils, this litz wire provides the ideal balance of performance, processability, and cost effectiveness.
Technical Specifications
Item Requirement Test Result
Surface No crack, smooth OK
Conductor Diameter (mm) 0.1 ± 0.003 0.101
Outer Diameter of Single Wire 0.110-0.125mm 0.112
Number of Strands 180 180
Maximum Outer Diameter 1.94mm 1.74
Pitch 23.5mm ± 2mm 23.0
Resistance ≤ 13.62 Ω/km (20℃) 12.69
Breakdown Voltage ≥ 1.1kV 3.2
Multiple strands litz wires 0.1mm *180 enameled Copper Wires For Transformer 0
All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
