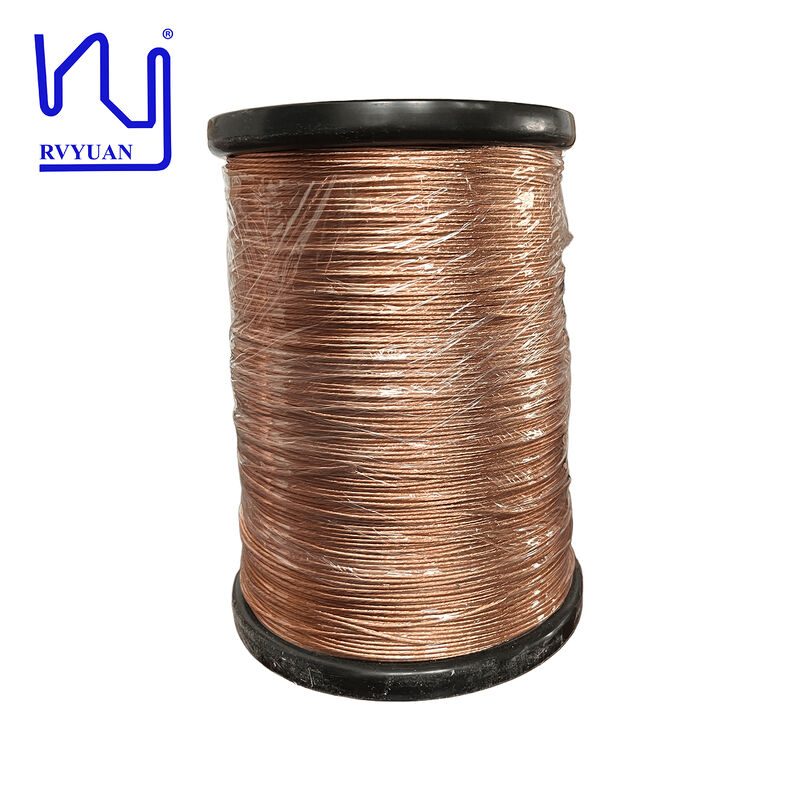

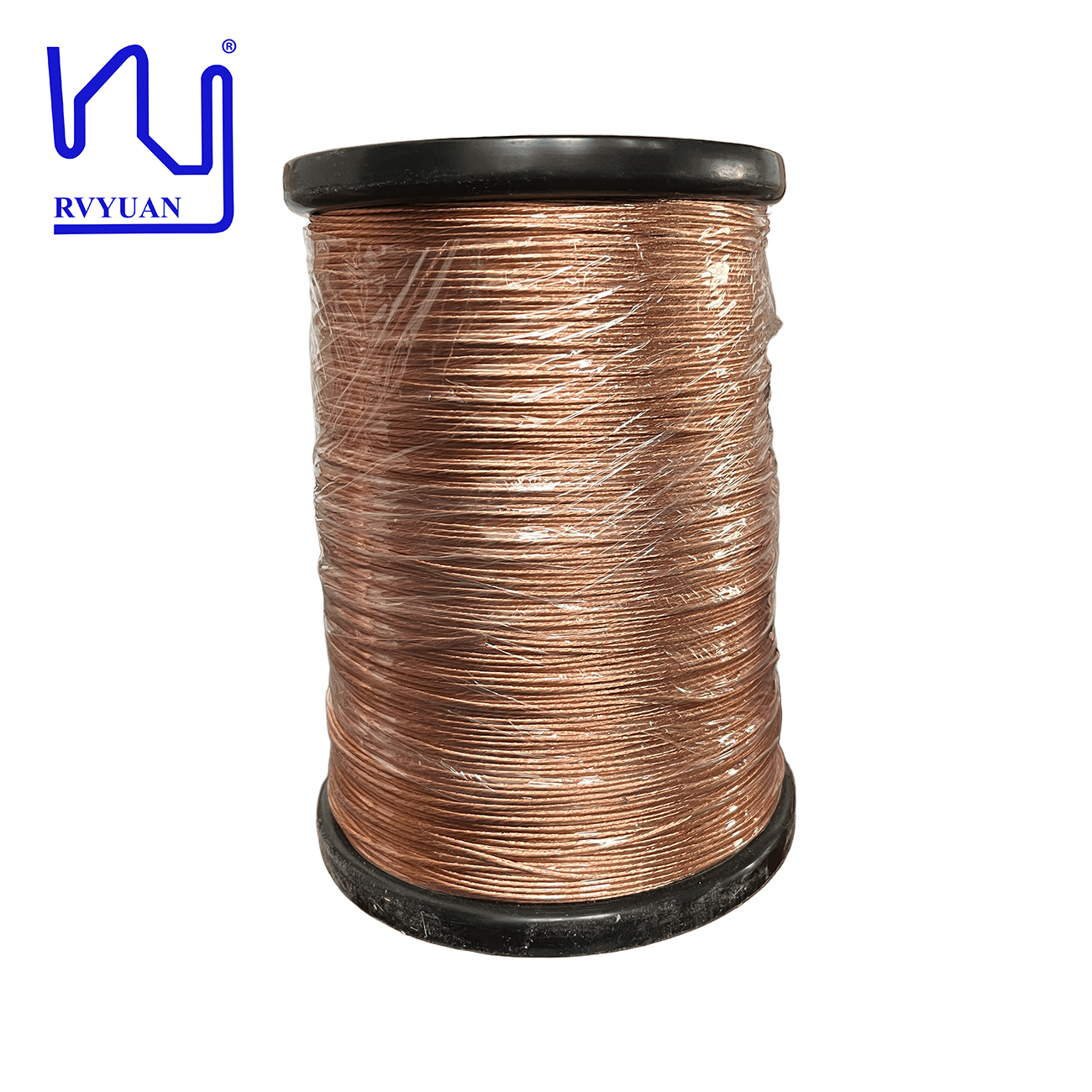

Stranded Litz Wires 0.1mm *180 Strands enameled Copper Wires For Transformer

Informasi Dasar

Tempat asal:	Cina
Nama merek:	RVYUAN
Sertifikasi:	ISO9001/ISO14001 /UL/SGS
Nomor model:	USTC

Kuantitas min Order:	20kg
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kumparan dengan karton
Waktu pengiriman:	15 hari kerja
Syarat-syarat pembayaran:	T/T/Paypal
Menyediakan kemampuan:	Penuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Diameter:	0,1 mm	Suhu:	180
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO	Konduktor:	Tembaga
helai:	180	Tegangan Kerusakan:	Minimal 1100
Kata Kunci:	Kabel Litz Terdampar 0.1mm *180 Helai Kabel Tembaga Enamel Untuk Transformator
Menyoroti:	0.1mm stranded litz wire , 180 strands enameled copper wire , transformer litz wire with warranty

Deskripsi Produk

Stranded Litz Wires 0.1mm × 180 Strands Enameled Copper Wires for Transformer

High-quality stranded litz wires featuring 180 strands of 0.1mm enameled copper wires, specifically designed for transformer applications requiring optimal performance and reliability.

Key Advantages

Solderable Design: No need to strip individual strands before soldering. The integrated coating enables quick, reliable soldering while reducing assembly time and preventing insulation damage.
Low MOQ for Custom Needs: We support small batch customization with a minimum order quantity of just 20 kg. Ideal for prototyping, small series production, or specialized transformer designs without requiring large inventories.

Technical Specifications

Item	Requirement	Test Result
Surface	No crack, smooth	OK
Conductor Diameter (mm)	0.1 ± 0.003	0.101
Outer Diameter of Single Wire	0.110-0.125mm	0.112
Number of Strands	180	180
Maximum Outer Diameter	1.94mm	1.74
Pitch	23.5mm ± 2mm	23.0
Resistance	≤ 13.62 Ω/km (20℃)	12.69
Breakdown Voltage	≥ 1.1kV	3.2

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
