Superthin Flat Wire AIW 0.15mm Rectangular Enameled Copper Wire

Informasi Dasar

Tempat asal:	Cina
Nama merek:	RVYUAN
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO
Nomor model:	Kelas 220

Kuantitas min Order:	Tipe berbeda dengan MOQ berbeda
Harga:	negotiable
Kemasan rincian:	Spul dengan karton
Waktu pengiriman:	2-15 hari kerja
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	Penuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Membentuk:	Persegi panjang	Dimensi Konduktor (Lebar):	2mm
Ketebalan Lapisan Isolasi Unilateral (Lebar):	1mm	Aplikasi:	Gulungan motor
Kelas Termal:	220	Kata kunci:	Kawat Datar Supertipis AIW 0,15mm Kawat Tembaga Enamel Persegi Panjang
Menyoroti:	Superthin flat enameled copper wire , 0.15mm rectangular copper wire , AIW enameled flat wire

Deskripsi Produk

Superthin Flat Wire AIW 0.15mm Rectangular Enameled Copper Wire

Applications

Drive Motors: The largest market for enameled flat copper wire, enabling tighter packing in motor stator slots, increasing power density and energy efficiency, and reducing overall motor size and weight.
Electric Power Steering (EPS) Motors: Flat enameled copper wire is used for compact designs and improved efficiency in electric steering systems.
Starter Motors: In traditional and hybrid vehicles, flat enameled copper wire optimizes starter motor performance.
Onboard Transformers and Coils: Used in onboard chargers, DC-DC converters, and sensors, facilitating high integration and miniaturization.

Technical Specifications

Item	Characteristics	Standard	Test Result
1	Appearance	Smooth, Equality	OK
2	Conductor diameter (mm) W T	2.00 ±0.060 0.15 ±0.009	2.002 0.153
3	Thickness of Insulation (mm) W T	0.010 0.030	0.020 0.032
4	Overall diameter (mm) W T	2.100 0.200	2.022 0.185
5	Pinhole (Normal state)	Max ≤ 3 个/m	0
6	Elongation (%)	Min ≥30%	42
7	Flexibility and Adherence	No crack	OK
8	Conductor Resistance (Ω/km, 20℃)	Max 64.03	57.96
9	Breakdown Voltage (AC)	Min 0.7 KV	1.5
10	Heat shock	No crack	OK

Conclusion: (PASS)

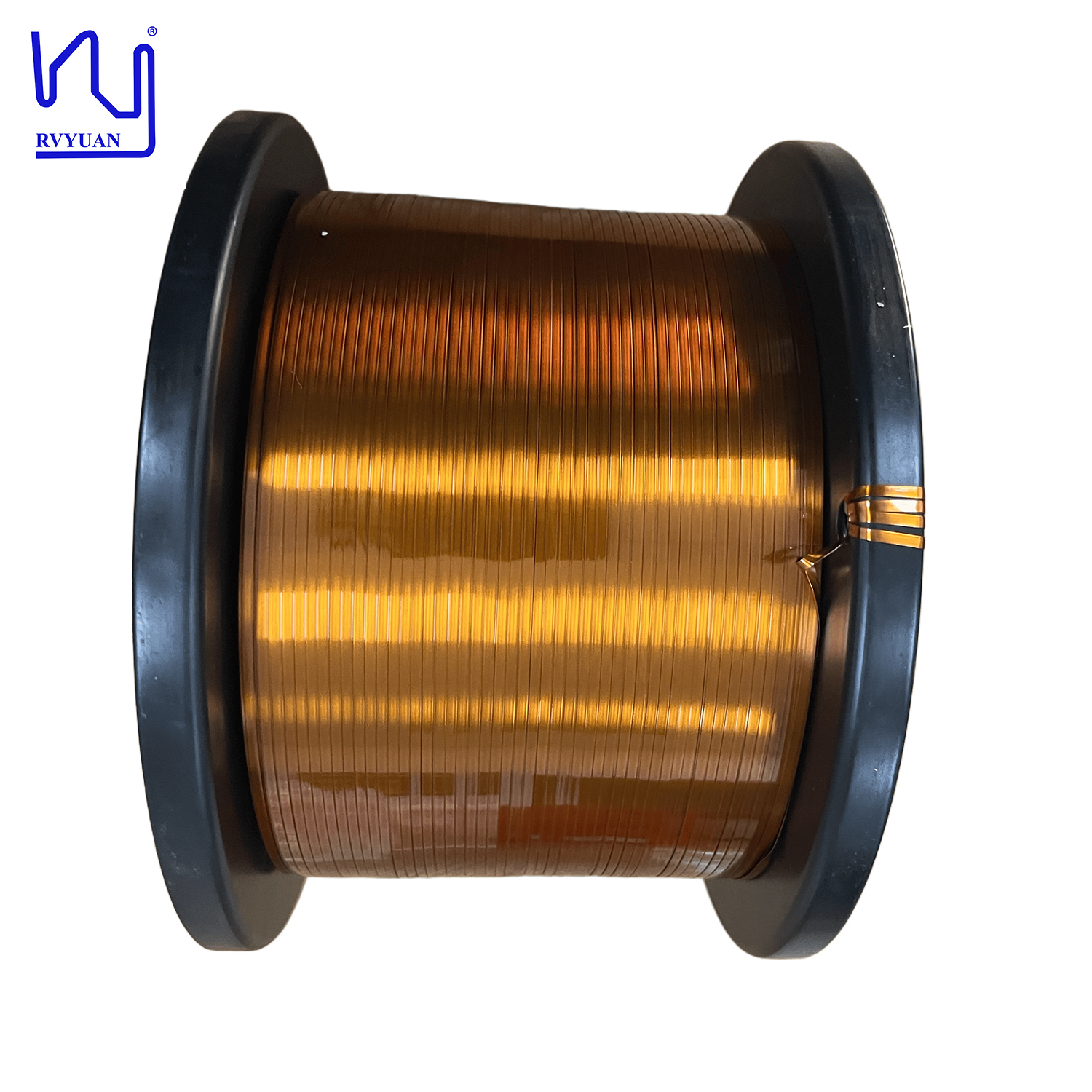

Product Image
