Enameled Copper Winding Wire AIW 0.15mm X 2.0mm Rectangular Wire

Informasi Dasar

Tempat asal:	Cina
Nama merek:	RVYUAN
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO
Nomor model:	Kelas 220

Kuantitas min Order:	Tipe berbeda dengan MOQ berbeda
Harga:	negotiable
Kemasan rincian:	Spul dengan karton
Waktu pengiriman:	2-15 hari kerja
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	Penuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Membentuk:	Persegi panjang	Dimensi Konduktor (Lebar):	2mm
Ketebalan Lapisan Isolasi Unilateral (Lebar):	1mm	Aplikasi:	Gulungan motor
Kelas Termal:	220	Kata kunci:	Kawat Berliku Tembaga Berenamel Kawat Persegi Panjang AIW 0.15mm X 2.0mm
Menyoroti:	enameled copper winding wire , rectangular copper wire 0.15mm , AIW enameled rectangular wire

Deskripsi Produk

Enameled Copper Winding Wire AIW 0.15mm X 2.0mm Rectangular Wire

High-performance enameled copper winding wire designed for demanding electrical applications, featuring rectangular cross-section dimensions of 0.15mm x 2.0mm.

Primary Applications

Drive Motors: The largest market application, enabling tighter packing in motor stator slots to increase power density and energy efficiency while reducing overall motor size and weight.
Air Conditioning Compressors: Flat enameled copper wire windings enhance motor efficiency and reduce energy consumption, significantly improving electric vehicle air conditioning performance.

Technical Specifications & Test Results

Item	Characteristics	Standard	Test Result
1	Appearance	Smooth, Equality	OK
2	Conductor Diameter (mm) W: 2.00 ±0.060 T: 0.15 ±0.009	W: 2.00 ±0.060 T: 0.15 ±0.009	W: 2.002 T: 0.153
3	Thickness of Insulation (mm) W: 0.010-0.020 T: 0.030-0.032	W: 0.010-0.020 T: 0.030-0.032	W: 0.010-0.020 T: 0.030-0.032
4	Overall Diameter (mm) W: 2.100 T: 0.200	W: 2.100 T: 0.200	W: 2.022 T: 0.185
5	Pinhole (Normal State)	Max ≤ 3 pcs/m	0
6	Elongation (%)	Min ≥ 30%	42
7	Flexibility and Adherence	No Crack	OK
8	Conductor Resistance (Ω/km, 20℃)	Max 64.03	57.96
9	Breakdown Voltage (AC)	Min 0.7 KV	1.5
10	Heat Shock	No Crack	OK

Conclusion: PASS

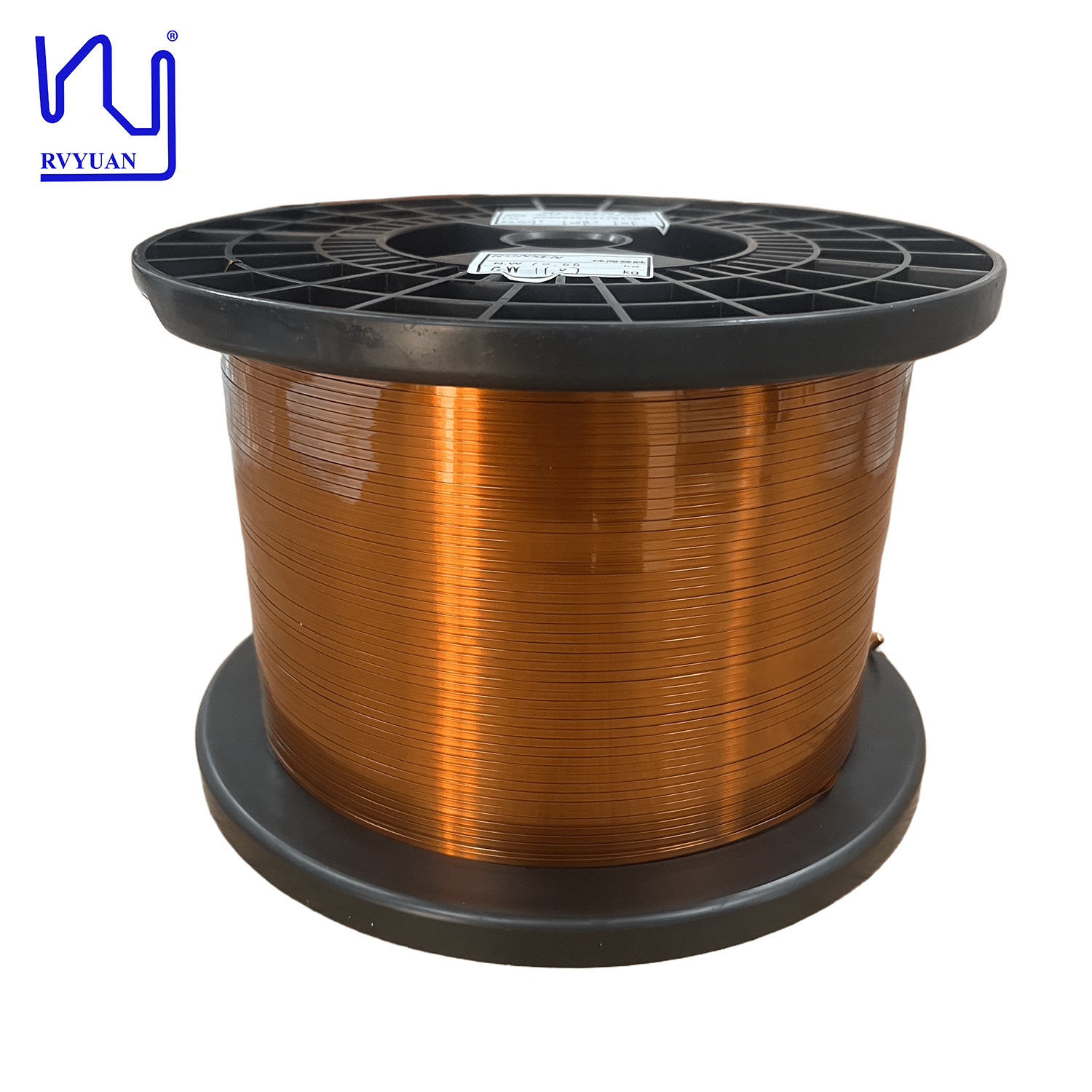

Product Image

Label:

Enameled Copper Winding Wire AIW 0.15mm X 2.0mm Rectangular Wire

enameled copper winding wire

rectangular copper wire 0.15mm

AIW enameled rectangular wire
