High Quality 0.05mm Soft Silver Plated Copper Wire

Informasi Dasar

Tempat asal:	Tiongkok
Nama merek:	Ruiyuan
Sertifikasi:	UL/ISO9001/ISO14001/RoHS/Reach
Nomor model:	SPC

Kuantitas min Order:	2 kg
Harga:	negotiable
Kemasan rincian:	karton
Waktu pengiriman:	2-15 hari
Syarat-syarat pembayaran:	Perundingan
Menyediakan kemampuan:	10Ton/minggu

Harga terbaik Hubungi sekarang

Informasi Detail

Nama Produk:	Kawat Tembaga Berlapis Perak Lembut 0,05mm Berkualitas Tinggi	Peringkat termal:	155
Bahan isolasi:	Email	Diameter:	0,05mm
Bahan konduktor:	Perak	Kata kunci:	Kawat Tembaga Berlapis Perak Lembut 0,05mm Berkualitas Tinggi
Menyoroti:	0.05mm silver plated copper wire , soft OCC wire , high conductivity silver wire

Deskripsi Produk

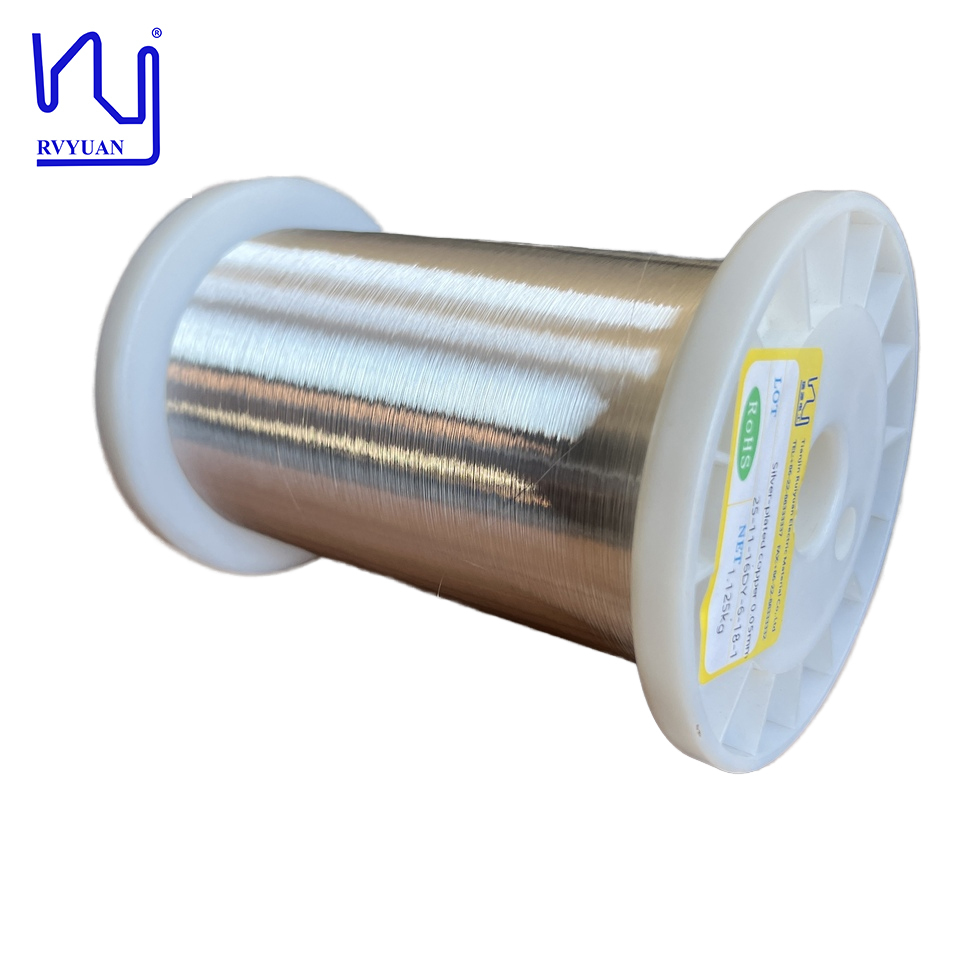

High Quality 0.05mm Soft Silver Plated Copper Wire

Silver-plated copper wire is a specialized conductor featuring a core of copper with a thin layer of silver coating. This particular wire has a diameter of 0.05mm, making it ideal for applications requiring fine, flexible conductors. The process of creating silver-plated wire involves coating copper conductors with silver, followed by additional processing techniques such as drawing, annealing, and stranding. These methods ensure that the wire meets specific performance requirements for various applications.

Standard Specifications for Monocrystalline Silver
Diameter (mm)	Tensile Strength (Mpa)		Elongation (%)		Conductivity (IACS%)		Purity (%)
Diameter (mm)	Hard state	Soft state	Hard state	Soft state	Hard state	Soft state	Purity (%)
3.0	≥320	≥180	≥0.5	≥25	≥104	≥105	≥99.995
2.05	≥330	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995
1.29	≥350	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995
0.102	≥360	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995

Label:

High Quality 0.05mm Soft Silver Plated Copper Wire

0.05mm silver plated copper wire

soft OCC wire

high conductivity silver wire

ohno continuous cast occ wire,

99.998% occ silver wire,

4n occ silver wire
