4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire

Informasi Dasar

Tempat asal:	Tiongkok
Nama merek:	Rvyuan
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO
Nomor model:	kabel litz yang ditempel

Kuantitas min Order:	20kg
Harga:	negotiable
Kemasan rincian:	Spool dengan karton
Waktu pengiriman:	2-15 hari kerja
Syarat-syarat pembayaran:	Perundingan
Menyediakan kemampuan:	Memenuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Nama:	Film PET 4KV 0.2mmx80 Konduktor Tembaga Ditempel Kawat Litz	Sertifikasi:	ISO9001/ISO14001/UL/SGS
Diameter:	0.2mm	Konduktor:	Tembaga
Isolasi:	Film PI	Suhu pengenal:	155
Kata kunci:	Film PET 4KV 0.2mmx80 Konduktor Tembaga Ditempel Kawat Litz	Jumlah untaian:	80
Menyoroti:	4KV PET Film Litz Wire , 0.2mm Copper Conductor Wire , Taped Litz Wire with PET

Deskripsi Produk

4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire

Product Description

4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire

What is PET film?

Polyester film, commonly known as PET film, is a plastic film made of polyethylene terephthalate. This versatile material is available in a variety of thicknesses, widths, and transparencyes, making it suitable for a wide range of applications. PET film possesses excellent physical, mechanical, optical, thermal, electrical, and chemical properties, making it popular in industries such as packaging, electronics, and insulation.

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω /m	Breakdown voltage V	Overlap%
Tech requirement	0.213-0.227	0.2±0.003	Max.2.84	≤0.007215	4000	Min. 50
Sample 1	0.220-0.223	0.198-0.2	2.46-2.73	0.006814	11700	53

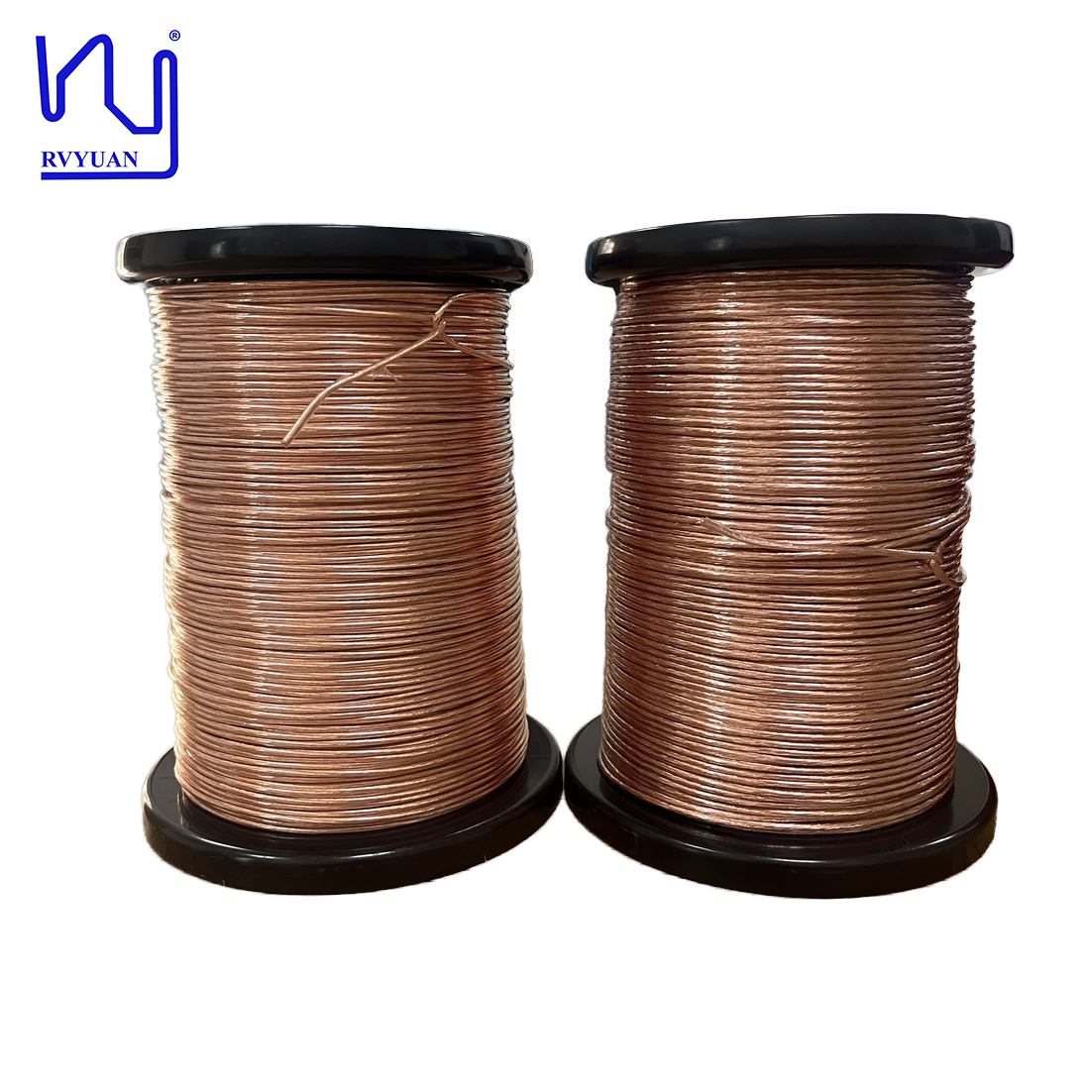

Product Images
