PET Taped Litz Wire 0.2mmx80 Copper Stranded Wire

Informasi Dasar

Tempat asal:	Tiongkok
Nama merek:	Rvyuan
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO
Nomor model:	kabel litz yang ditempel

Kuantitas min Order:	20kg
Harga:	negotiable
Kemasan rincian:	Spool dengan karton
Waktu pengiriman:	2-15 hari kerja
Syarat-syarat pembayaran:	Perundingan
Menyediakan kemampuan:	Memenuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Nama:	Kawat Litz Pita PET 0.2mmx80 Kawat Untai Tembaga	Sertifikasi:	ISO9001/ISO14001/UL/SGS
Diameter:	0.2mm	Konduktor:	Tembaga
Isolasi:	Film PI	Suhu pengenal:	155
Kata kunci:	Kawat Litz Pita PET 0.2mmx80 Kawat Untai Tembaga	Jumlah untaian:	80
Menyoroti:	PET taped Litz wire 0.2mmx80 , copper stranded wire with PET tape , 0.2mmx80 Litz wire for electronics

Deskripsi Produk

PET Taped Litz Wire 0.2mmx80 Copper Stranded Wire

Mylar Litz wire is a custom conductor designed for high-performance applications, particularly in transformers and inductors. This conductor is meticulously stranded from 80 strands of 0.2mm enameled copper wire, forming a Litz structure. An outer PET protective film enhances the conductor's durability and performance in various environments.

Technical Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω /m	Breakdown voltage V	Overlap%
Tech requirement	0.213-0.227	0.2±0.003	Max.2.84	≤0.007215	4000	Min. 50
Sample 1	0.220-0.223	0.198-0.2	2.46-2.73	0.006814	11700	53

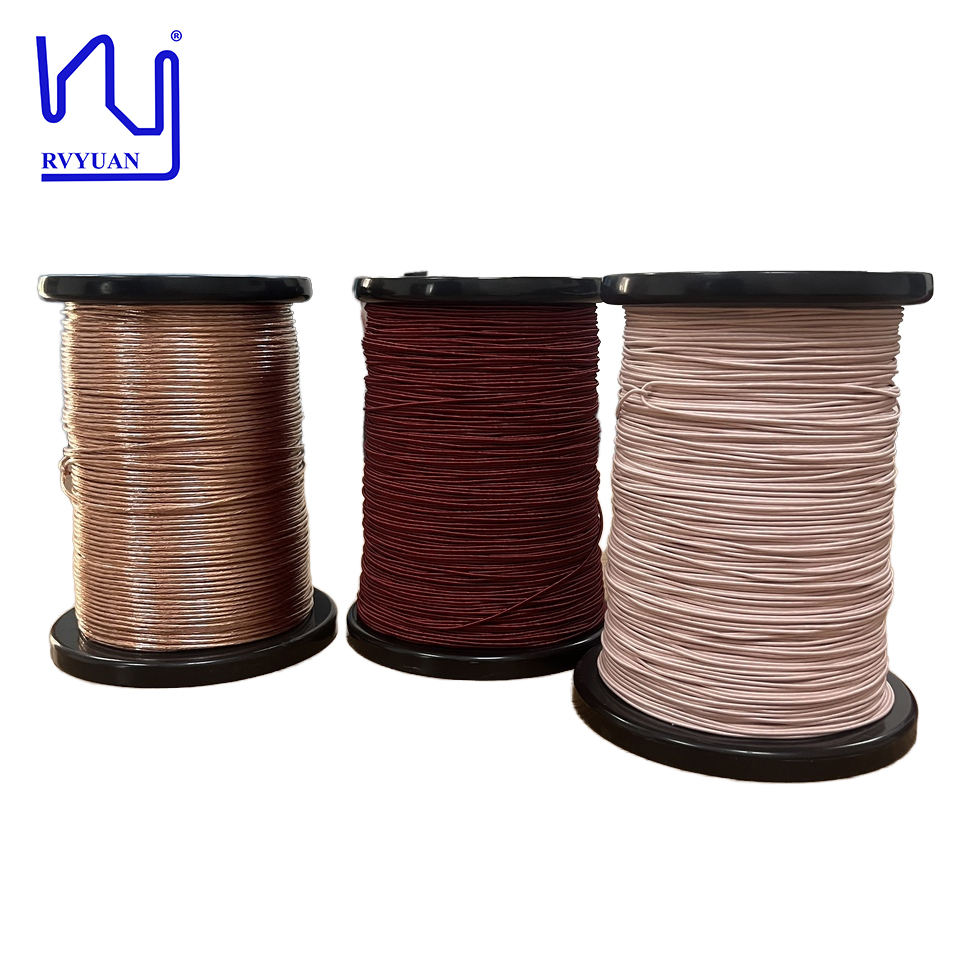

Product Image

Label:

PET Taped Litz Wire 0.2mmx80 Copper Stranded Wire

PET taped Litz wire 0.2mmx80

copper stranded wire with PET tape

0.2mmx80 Litz wire for electronics
