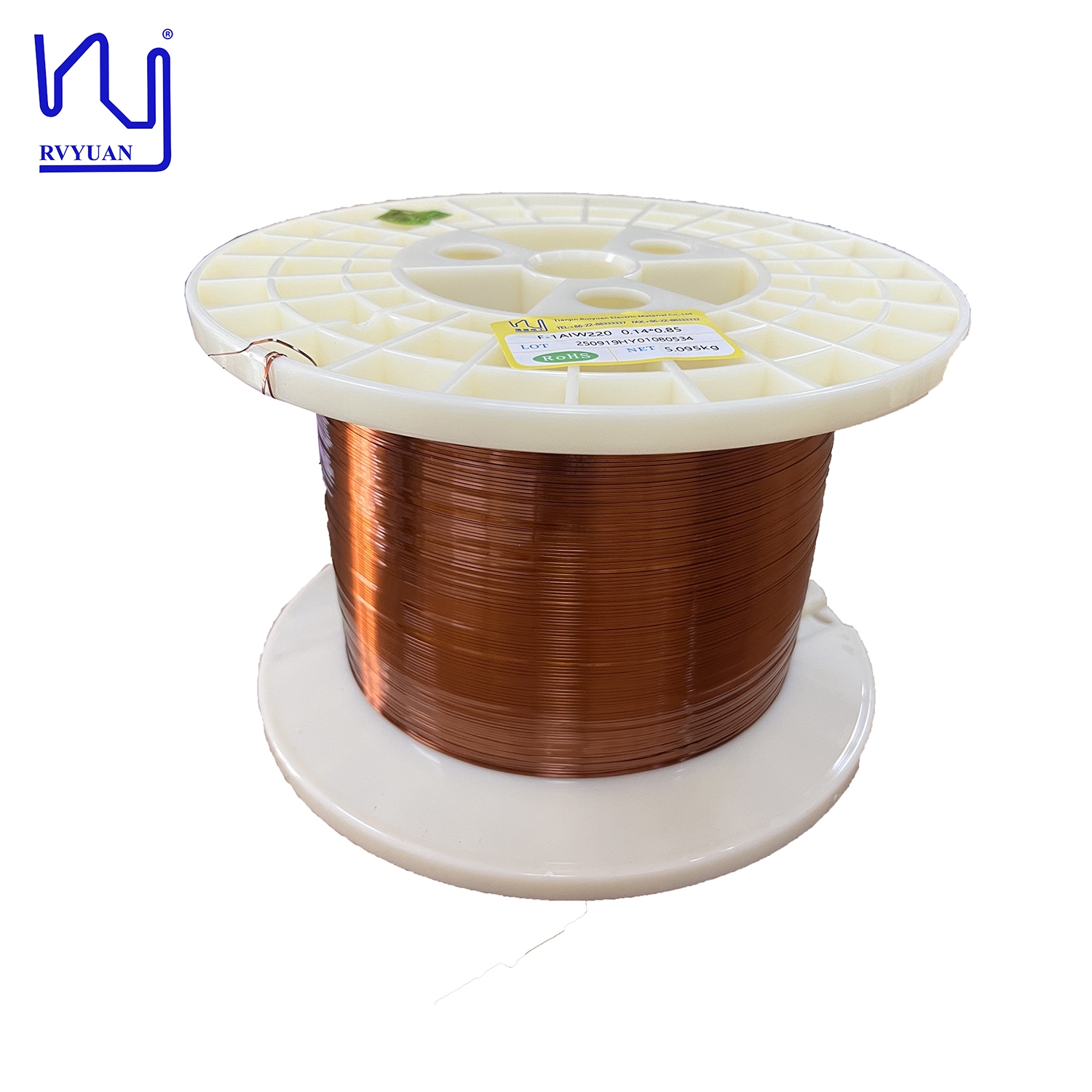

AIW Enameled Flat Copper Wire 2.0mm 3mm 4mm Rectangular Wire

Informasi Dasar

Tempat asal:	CINA
Nama merek:	RVYUAN
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO
Nomor model:	Kelas 220

Kuantitas min Order:	Jenis berbeda dengan MOQ berbeda
Harga:	negotiable
Kemasan rincian:	Spool dengan karton
Waktu pengiriman:	2-15 hari kerja
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	Memenuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Membentuk:	Persegi panjang	Dimensi Konduktor (Lebar):	2mm
Ketebalan Lapisan Isolasi Unilateral (Lebar):	1mm	Aplikasi:	belitan motor
Tingkat termal:	220	Kata kunci:	Kawat Tembaga Datar Berenamel AIW Kawat Persegi Panjang 2.0mm 3mm 4mm
Menyoroti:	enameled flat copper wire , rectangular copper wire 4mm , AIW enameled rectangular wire

Deskripsi Produk

AIW Enameled Flat Copper Wire 2.0mm 3mm 4mm Rectangular Wire

Insulation enamel is Polyamide Imide coating, with the capability to resist 220℃ temperature. We've successfully developed AIW enameled flat copper wire based on market needs of small size and light weight, degree of dependability, fire-resistance, mechanical and chemical characteristics and in consideration of production efficiency and the upgrading of market competitiveness. It not only has all the advantages of EI enameled flat copper wire, but also is with a better performance compared with the latter in temperature-resistance, grinding-resistance, and degree of stickiness.

Technical Specifications

TEST REPORT
Model		SFT-AIW					Date			2024-1-8
Size(mm):		0.100 × 2.000					Lot			/

Item		conductor dimension		Unilateral insulation laer thickness		Overall dimension		Dielectric breakdown voltage	Pinhole	Conductor resistance	Elongation	Apperance	Flexibility	Adherence	Thermal shock
Item		Thickness	Width	Thickness	Width	Thickness	Width	Dielectric breakdown voltage	Pinhole	Conductor resistance	Elongation	Apperance	Flexibility	Adherence	Thermal shock
Unit		mm	mm	mm	mm	mm	mm	kv	Pcs/m	Ω/km 20℃	%	No to be scratched No dirt	No crack	No crack	No crack
SPEC	Mid.	0.100	2.000	0.025	0.025
	Max	0.109	2.060	0.040	0.040	0.150	2.100		3	93.240
	Min	0.091	1.940	0.010	0.010			0.700			30
No. 1		0.104	1.992	0.020	0.013	0.144	2.018	2.680	0	85.634	46	No to be scratched No dirt	Good	Good	Good
No. 2								1.968
No. 3								2.250
No. 4								2.458
No. 5								1.976
Ave		0.104	1.992	0.020	0.013	0.144	2.018	2.266
Number of reading		1	1	1	1	1	1	5
Min. reading		0.104	1.992	0.020	0.013	0.144	2.018	1.968
Max. reading		0.104	1.992	0.020	0.013	0.144	2.018	2.680
Range		0.000	0.000	0.000	0.000	0.000	0.000	0.712
Result		OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK
