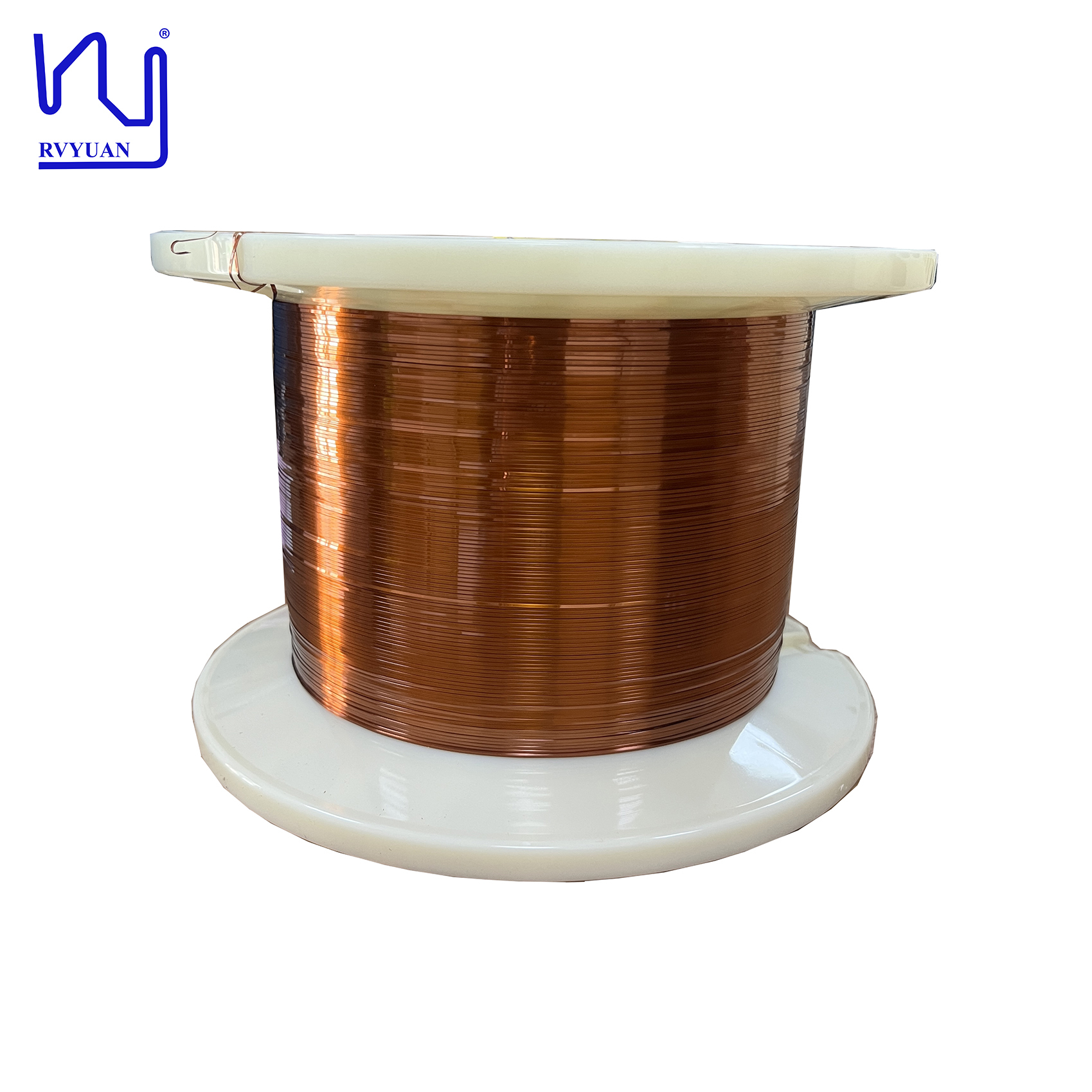

Size 0.35mm*0.8mm Enameled Copper Flat Wire

Informasi Dasar

Tempat asal:	CINA
Nama merek:	RVYUAN
Sertifikasi:	UL/ISO9001/ISO14001/RoHS/Reach
Nomor model:	AIW220

Kuantitas min Order:	10kg
Harga:	negotiable
Kemasan rincian:	KARTON
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	100kg/minggu

Harga terbaik Hubungi sekarang

Informasi Detail

Tipe Konduktor:	padat	Bahan:	Tembaga
Membentuk:	Persegi panjang	Lebar:	0.8mm
Jenis:	Terisolasi	Sertifikat:	ROHS/UL/SGS/ISO9001:2008
Nama Produk:	Ukuran Kawat Datar Tembaga Berenamel 0,35mm*0,8mm	Ketebalan:	0.35mm
Menyoroti:	0.35mm enameled copper flat wire , rectangular copper wire with enamel coating , flat enameled copper wire for electrical

Deskripsi Produk

Size 0.35mm*0.8mm Enameled Copper Flat Wire

Our enameled rectangular copper wire is versatile and designed to improve the efficiency of a wide range of energy devices. Trust our expertise and let our high-quality products elevate your projects to new heights. We are committed to providing exceptional quality and performance, so you can be confident that our enameled rectangular copper wire will meet or exceed your expectations in any electrical application.

Item	Conductor dimension		Insulation thickness		Overall dimension		Breakdown voltage	Conductor resistance
	Thickness	Width	Thickness	Width	Thickness	Width	kv	Ω/km 20℃
Unit	mm	mm	mm	mm	mm	mm
SPEC	Nominal	0.350	0.800	0.025	0.025
Max	0.359	0.860	0.040	0.040	0.400	0.900		72.710
Min	0.341	0.740	0.010	0.010			0.700
No. 1	0.347	0.814	0.010	0.015	0.367	0.843	1.005	63.154
No. 2							1.414
No. 3							1.336
No. 4							1.558
No. 5							1.652
Avg	0.347	0.814	0.010	0.015	0.367	0.843	1.393
No.of reading	1	1	1	1	1	1	5
Min. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.005
Max. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.652
Range	0.000	0.000	0.000	0.000	0.000	0.000	0.647
