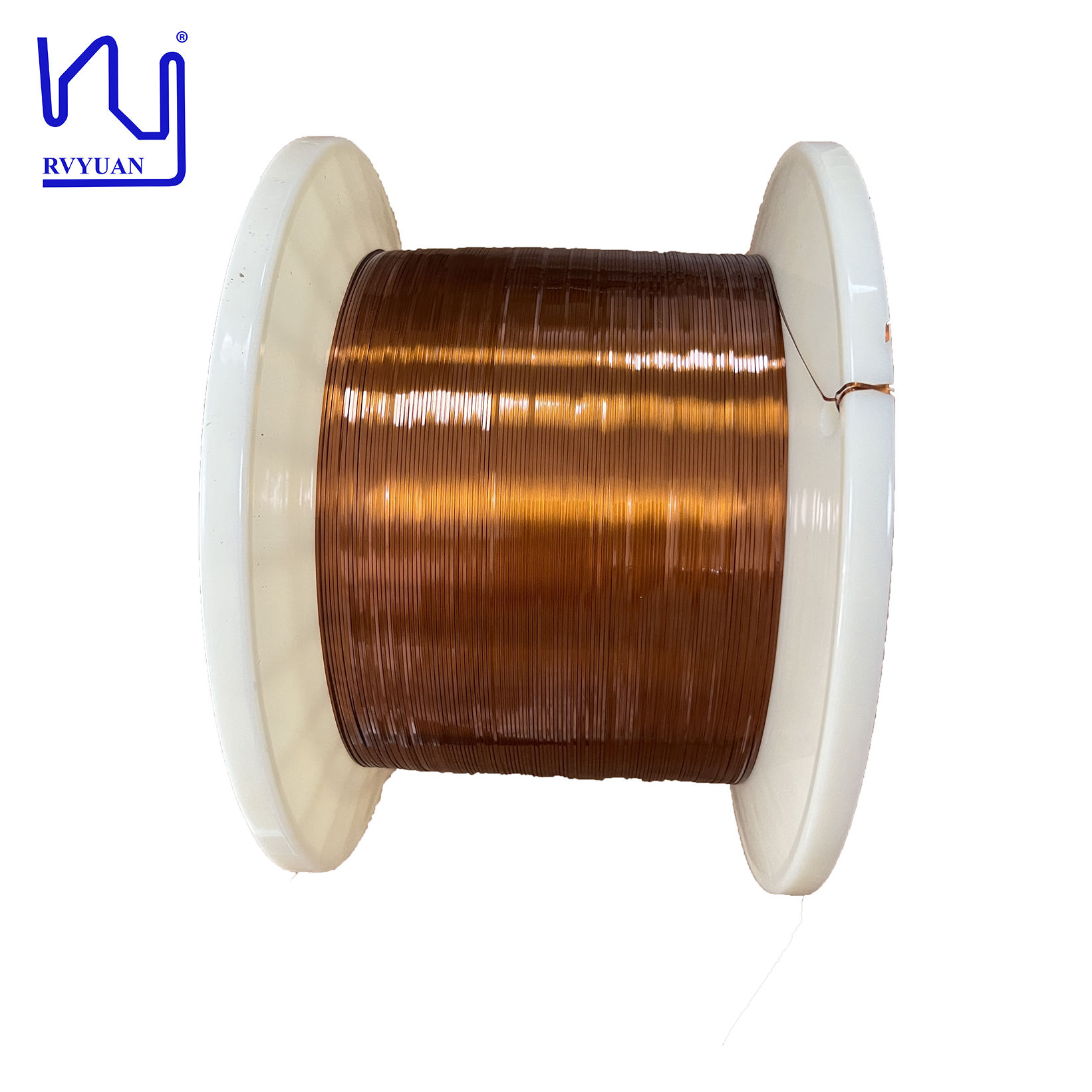

High Temperature Flat Copper Wire 0.8mmx0.35mm Enameled Flat Copper Wire

Informasi Dasar

Tempat asal:	CINA
Nama merek:	RVYUAN
Sertifikasi:	UL/ISO9001/ISO14001/RoHS/Reach
Nomor model:	AIW220

Kuantitas min Order:	10kg
Harga:	negotiable
Kemasan rincian:	KARTON
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	100kg/minggu

Harga terbaik Hubungi sekarang

Informasi Detail

Tipe Konduktor:	padat	Bahan:	Tembaga
Membentuk:	Persegi panjang	Lebar:	0.8mm
Jenis:	Terisolasi	Sertifikat:	ROHS/UL/SGS/ISO9001:2008
Nama Produk:	Kawat Tembaga Datar Suhu Tinggi 0.8mmx0.35mm Kawat Tembaga Datar Berenamel	Ketebalan:	0.35mm
Menyoroti:	0.8mmx0.35mm enameled flat copper wire , high temperature rectangular copper wire , flat copper wire with enamel coating

Deskripsi Produk

High Temperature Flat Copper Wire 0.8mmx0.35mm Enameled Flat Copper Wire

The enameled coating on our flat copper wires offers exceptional insulation properties. This coating provides excellent resistance to heat and current, ensuring long-lasting performance and reliability even under challenging conditions. Whether you're a professional engineer or a power electronics enthusiast, our flat enameled wires are a key component for reliable and efficient operation.

Technical Specifications

Item	Conductor Dimension		Insulation Thickness		Overall Dimension		Breakdown Voltage	Conductor Resistance
Unit	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	kV	Ω/km 20℃
SPEC	Nominal	0.350	0.800	0.025	0.025
Max	0.359	0.860	0.040	0.040	0.400	0.900		72.710
Min	0.341	0.740	0.010	0.010			0.700
No. 1	0.347	0.814	0.010	0.015	0.367	0.843	1.005	63.154
No. 2							1.414
No. 3							1.336
No. 4							1.558
No. 5							1.652
Avg	0.347	0.814	0.010	0.015	0.367	0.843	1.393
No.of reading	1	1	1	1	1	1	5
Min. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.005
Max. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.652
Range	0.000	0.000	0.000	0.000	0.000	0.000	0.647
