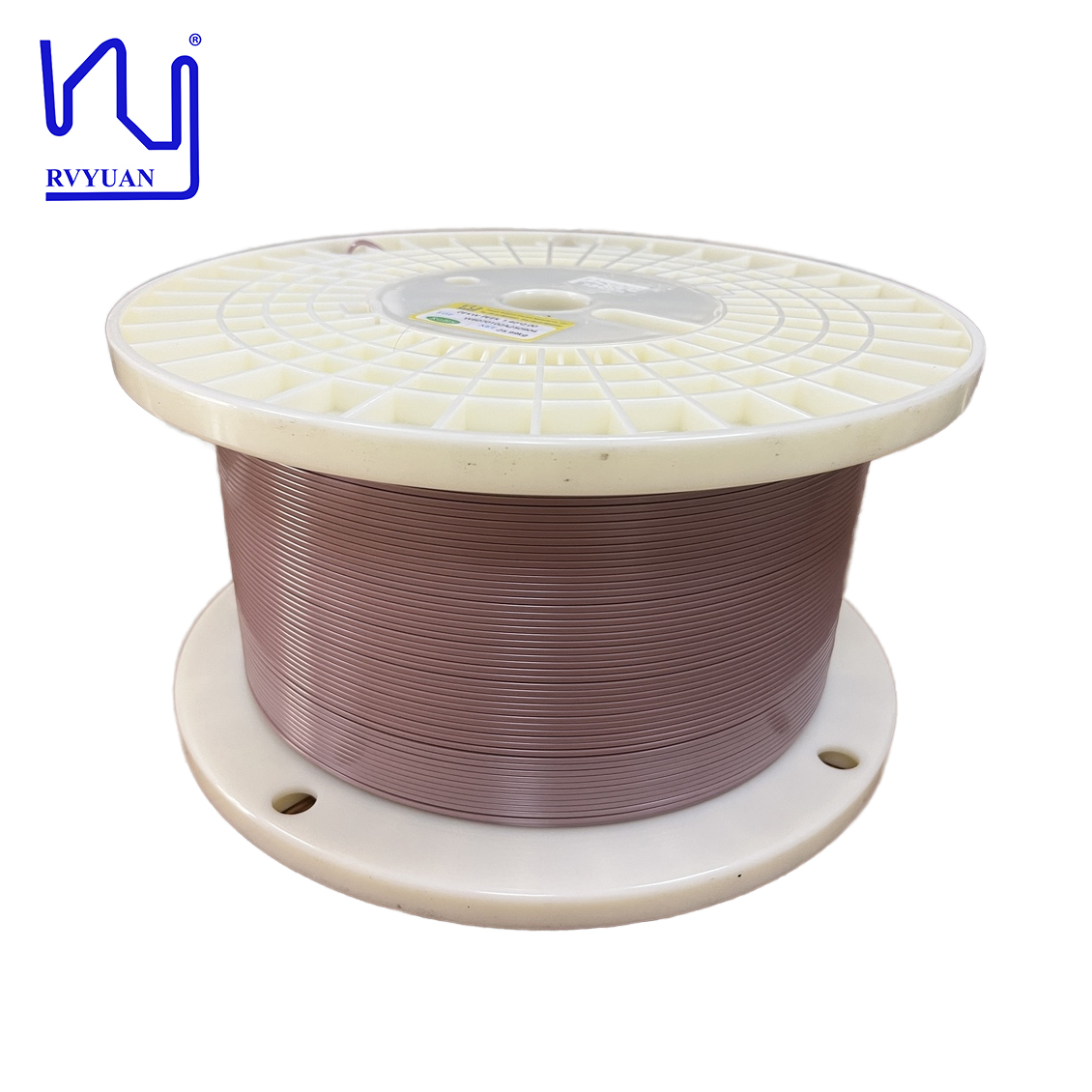

High Temperature PEEK wire 2.0mm 4.0mm 5.0mm Enameled Flat Copper Wire

Informasi Dasar
Tempat asal: CINA
Nama merek: Ruiyuan
Sertifikasi: UL/ISO9001/ISO14001/RoHS/Reach
Nomor model: MENGINTIP
Kuantitas min Order: 50kg
Harga: negotiable
Kemasan rincian: KARTON
Waktu pengiriman: 7 hari
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 100kg/minggu
Informasi Detail
Tipe Konduktor: padat Bahan: Tembaga
Membentuk: Persegi panjang Lebar: 2.0mm
Jenis: Terisolasi Sertifikat: ROHS/UL/SGS/ISO9001:2008
Nama Produk: Kawat MENGINTIP Suhu Tinggi 2.0mm 4.0mm 5.0mm Kawat Tembaga Datar Berenamel Ketebalan: 1.4mm
Menyoroti:

PEEK enameled flat copper wire

,

high temperature rectangular copper wire

,

2.0mm PEEK insulated copper wire


Deskripsi Produk

High Temperature PEEK Wire 2.0mm 4.0mm 5.0mm Enameled Flat Copper Wire

PEEK wire is a high-performance thermoplastic known for its excellent mechanical and thermal properties. PEEK is resistant to chemicals, has a high melting point, and maintains its strength and stability in extreme environments.

PEEK wire is often used in applications that require durability and resistance to harsh conditions, such as in aerospace, automotive, medical devices, and electronics. Its properties make it suitable for applications involving high temperatures, high pressures, and exposure to aggressive chemicals.

In addition to its mechanical strength, PEEK is also an excellent electrical insulator, making PEEK wire a good choice for electrical and electronic applications where insulation and heat resistance are critical.

Product Specifications
Ref. No. Item Specification Measurement Data (W607010 2A250904) Measurement Data (W607010 2B250904) Measure Equipment
1 Copper width 1.980-2.020mm 2.004 2.005 Mircometer
2 Copper thickness 1.380-1.420mm 1.400 1.399 Mircometer
3 Overall width 2.300-2.360 mm 2.324 2.321 Mircometer
4 Overall thickness 1.700-1.760 mm 1.732 1.731 Mircometer
5-8 Copper radius 0.350-0.450mm 0.375, 0.385, 0.399, 0.404 0.408, 0.412, 0.411, 0.407 Microscope
9-14 Insulation layer thickness 0.145-0.185mm 0.170, 0.162, 0.155, 0.167, 0.161 0.159, 0.155, 0.161, 0.165, 0.159 Microscope
15-18 Insulation layer thickness of radius 0.145-0.185mm 0.156, 0.159, 0.154, 0.160 0.158, 0.155, 0.159, 0.165 Microscope
19 Copper T1 OK Material certificate
20 Coating/Temperature grade 240℃ OK Material certificate
21 Elongation ≥40% 46 48 Tensile tester
22 Spring back angle / 5.186 5.098 Auto spring back test
23 Flexibility After winding with Ø 2.0mm and Ø3.0mm diameter round rods, there should be no cracking in the insulation layer. OK Visual
24 Adhesion ≤3.00mm 0.394 0.671 Tensile tester & Microscope
25 20℃ Conductor resistance ≤6.673 Ω/km 6.350 6.360 Conductor resistance tester
26 BDV ≥12000 V 22010 21170 Auto voltage tester
27 PDIV ≥1300 RMS (25℃,50V/S,50Hz,100Pc) 1425 1429 PDIV tester
28 Heat shock After baking at 240℃ for 30 minutes, the insulation layer should have no cracks. OK Oven
29 Defect inspection High voltage Pinhole: DC 3000V, 16uA
Parricle: Height>0.100mm need to be marked
Impurity:Length or width ≥ 0.4mm or area ≥0.16mm² need to be marked
0, 0, 0 0, 0, 2 On-line inspection system
30 Spool & Weight Sample phase: P-30,25±15kg
Mass production: PC-630B,160± 60kg
P-30 Visual
High Temperature PEEK wire 2.0mm 4.0mm 5.0mm Enameled Flat Copper Wire 0
