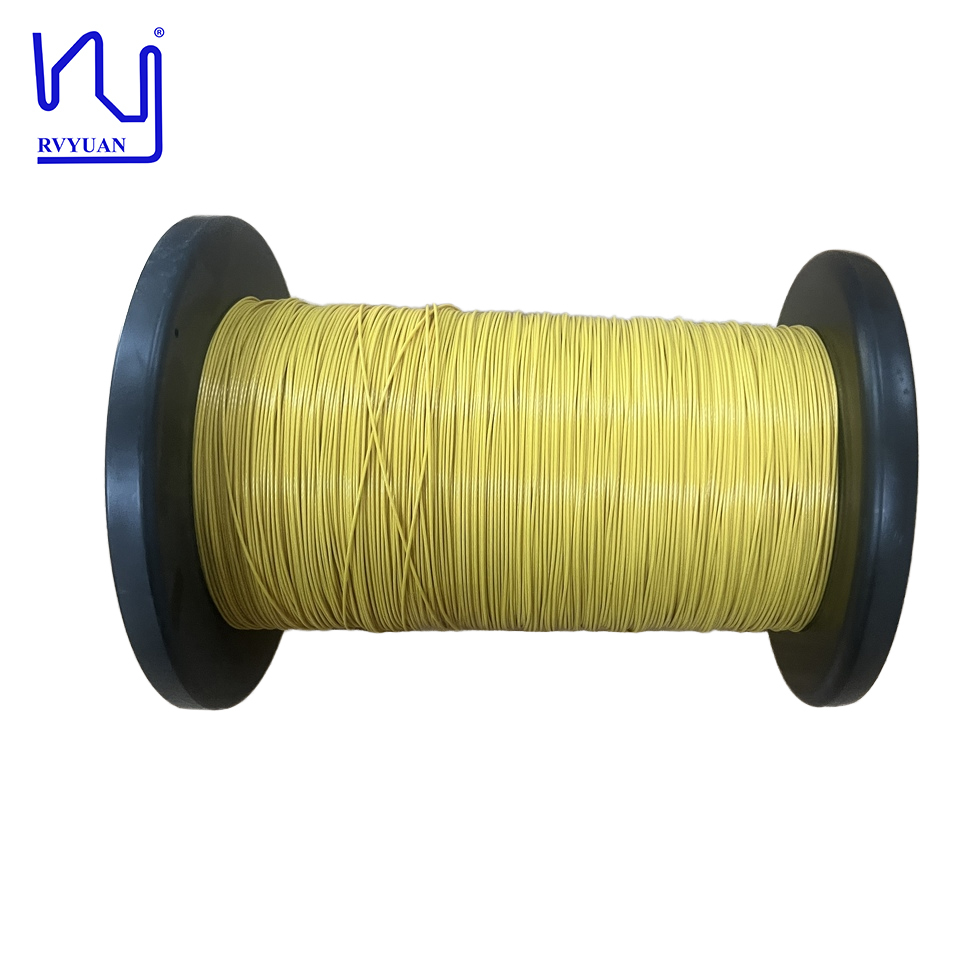

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

Informasi Dasar

Tempat asal:	CINA
Nama merek:	RVYUAN
Sertifikasi:	UL/ISO9001/ISO14001/RoHS/Reach
Nomor model:	0,27mm

Kuantitas min Order:	1000 meteran
Harga:	negotiable
Kemasan rincian:	Karton
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	T/t/paypal
Menyediakan kemampuan:	1Ton/Bulan

Harga terbaik Hubungi sekarang

Informasi Detail

Nama Produk:	Insulasi ETFE 0.21mm 0.24mm 0.27mm Tiw Tembaga Litz Tembaga Litz	Peringkat termal:	155
Diameter kawat tunggal:	0,27mm	Bahan konduktor:	Tembaga
Jumlah untaian:	7	Insulasi:	ETFE
Menyoroti:	ETFE insulated copper litz wire , TIW insulated litz wire , 0.27mm copper litz wire

Deskripsi Produk

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

Construction

Individual copper strands are insulated, often with a lacquer coating.
These strands are then twisted or bundled together to form the Litz structure.
An extruded, continuous layer of ETFE is applied to the outside of the twisted bundle for protection and enhanced insulation.

Specifications

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288 \| 0.287 \| 0.287
Min. insulation thickness	/Mm(min)	0.019 \| 0.018 \| 0.019
Pitch	S12±2	ok \| ok \| ok
Single wire Diameter	0.27±0.004MM	0.269 \| 0.269 \| 0.268
Overall dimension	1.06-1.2mm(Max)	1.078 \| 1.088 \| 1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82 \| 44.73 \| 44.81
Breakdown voltage	Min. 6KV(min)	15 \| 14.5 \| 14.9
Solder ability	450℃ 3Secs	OK \| OK \| OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
