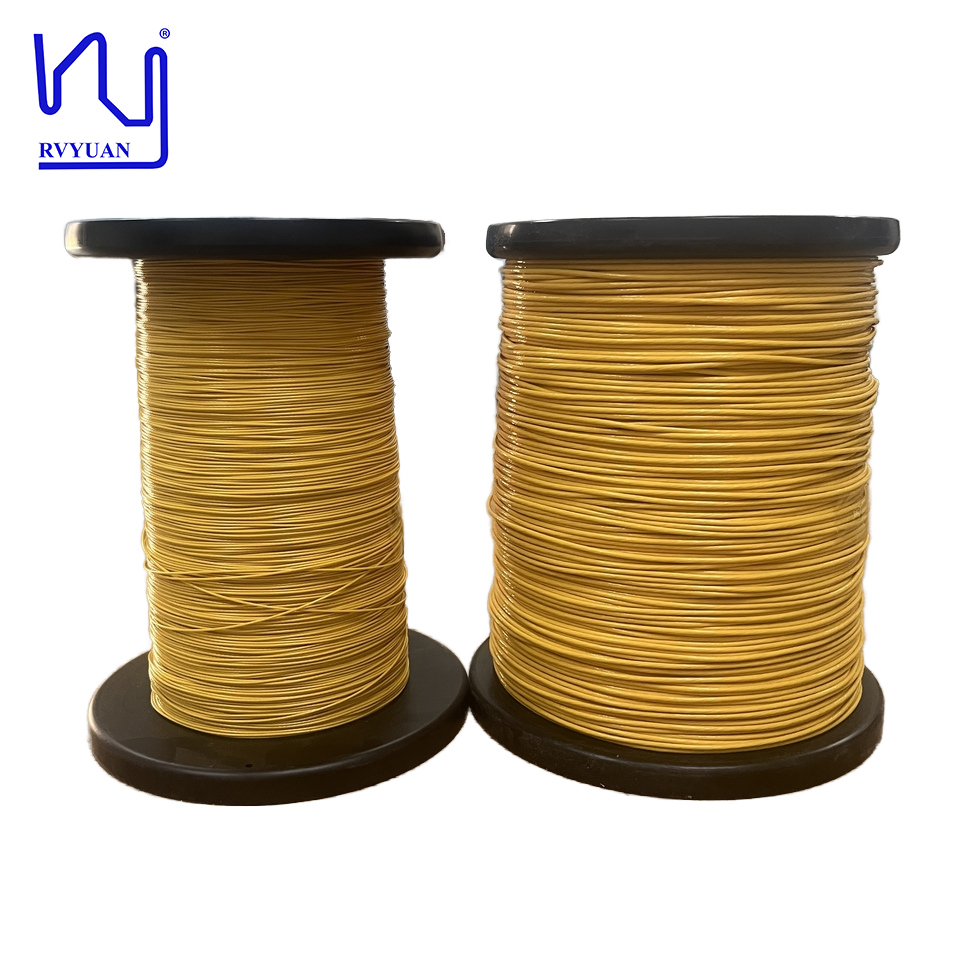

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire

Informasi Dasar

Tempat asal:	CINA
Nama merek:	RVYUAN
Sertifikasi:	UL/ISO9001/ISO14001/RoHS/Reach
Nomor model:	0,27mm

Kuantitas min Order:	1000 meteran
Harga:	negotiable
Kemasan rincian:	Karton
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	T/t/paypal
Menyediakan kemampuan:	1Ton/Bulan

Harga terbaik Hubungi sekarang

Informasi Detail

Nama Produk:	Kelas Kustom 155 7 Untai Etfe Insulation Insulation Tembaga Litz Kawat	Peringkat termal:	155
Diameter kawat tunggal:	0,27mm	Bahan konduktor:	Tembaga
Jumlah untaian:	7	Insulasi:	ETFE
Menyoroti:	Custom Class 155 Litz Wire , 7 Strands ETFE Insulation Wire , Extruded Copper Litz Wire

Deskripsi Produk

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire

Litz Wire:

A cable composed of multiple strands of insulated wire, twisted or braided together in a specific configuration to reduce AC resistance, particularly at high frequencies.

ETFE Insulation:

Ethylene Tetrafluoroethylene, a fluoropolymer known for its high dielectric strength, excellent thermal stability, resistance to chemicals and UV radiation, and low friction properties.

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288 \| 0.287 \| 0.287
Min. insulation thickness	/Mm(min)	0.019 \| 0.018 \| 0.019
Pitch	S12±2	ok \| ok \| ok
Single wire Diameter	0.27±0.004MM	0.269 \| 0.269 \| 0.268
Overall dimension	1.06-1.2mm(Max)	1.078 \| 1.088 \| 1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82 \| 44.73 \| 44.81
Breakdown voltage	Min. 6KV(min)	15 \| 14.5 \| 14.9
Solder ability	450℃ 3Secs	OK \| OK \| OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
