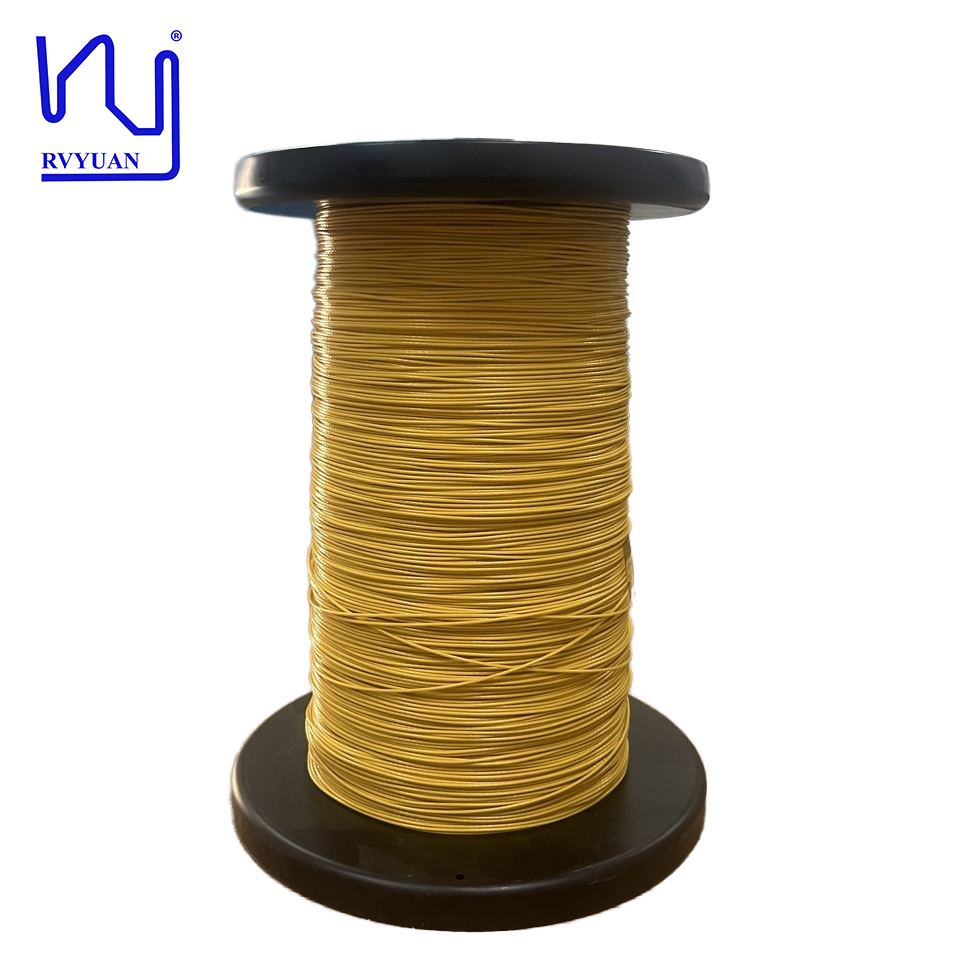

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer
FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer
FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer
Informasi Dasar
Tempat asal: CINA
Nama merek: RVYUAN
Sertifikasi: UL/ISO9001/ISO14001/RoHS/Reach
Nomor model: 0,27mm
Kuantitas min Order: 1000 meteran
Harga: negotiable
Kemasan rincian: Karton
Waktu pengiriman: 7 hari
Syarat-syarat pembayaran: T/t/paypal
Menyediakan kemampuan: 1Ton/Bulan
Harga terbaik Hubungi sekarang
Informasi Detail
Nama Produk: FTIW-F CLASS 155 0.27mmx7 ETFE ETFE Insulasi Litz Kawat untuk Transformator Frekuensi Tinggi Peringkat termal: 155
Diameter kawat tunggal: 0,27mm Bahan konduktor: Tembaga
Jumlah untaian: 7 Insulasi: ETFE
Menyoroti:

ETFE insulated Litz wire

,

high frequency transformer wire

,

0.27mmx7 extruded Litz wire

Deskripsi Produk

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer
ETFE insulation Litz wire is a high-performance cable featuring a bundle of individually insulated strands twisted together and coated with an extruded layer of Ethylene Tetrafluoroethylene (ETFE) insulation. This combination offers superior performance in demanding applications by minimizing skin-effect losses in high-frequency environments, enhanced electrical properties for high-voltage use, and excellent thermal, mechanical, and chemical resistance due to the strong ETFE fluoropolymer.
Technical Specifications
Characteristics Test Standard Test result
Outer diameter of single wire 0.295mm 0.288 0.287 0.287
Min. insulation thickness /Mm(min) 0.019 0.018 0.019
Pitch S12±2 ok ok ok
Single wire Diameter 0.27±0.004MM 0.269 0.269 0.268
Overall dimension 1.06-1.2mm(Max) 1.078 1.088 1.085
Conductor Resistance Max. 45.23Ω/KM(max) 44.82 44.73 44.81
Breakdown voltage Min. 6KV(min) 15 14.5 14.9
Solder ability 450℃ 3Secs OK OK OK
Conclusion Qualified
FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer 0
We have a professional team to provide technical support. Custom specifications available upon request.
