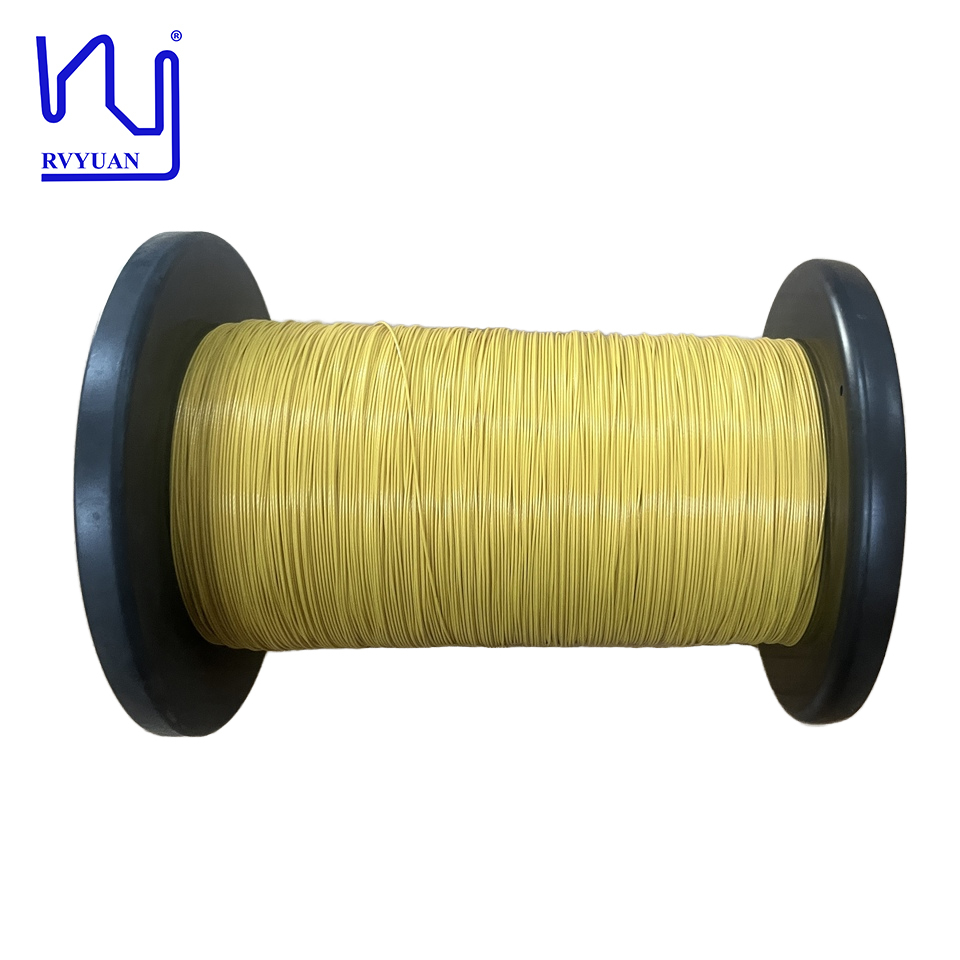

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire
Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire
Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire
Informasi Dasar
Tempat asal: CINA
Nama merek: RVYUAN
Sertifikasi: UL/ISO9001/ISO14001/RoHS/Reach
Nomor model: 0,24mm
Kuantitas min Order: 1000 meteran
Harga: negotiable
Kemasan rincian: Karton
Waktu pengiriman: 7 hari
Syarat-syarat pembayaran: T/t/paypal
Menyediakan kemampuan: 1Ton/Bulan
Harga terbaik Hubungi sekarang
Informasi Detail
Nama Produk: Kustom Litz ETFE ETFE Kustom 0.24mmx7 Strands Tiw untuk Transformer Peringkat termal: 155
Diameter kawat tunggal: 0,24mm Bahan konduktor: Tembaga
Jumlah untaian: 7 Insulasi: ETFE
Menyoroti:

ETFE insulated copper litz wire

,

0.24mm 7-strand litz wire

,

TIW stranded copper wire

Deskripsi Produk

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire
ETFE insulation offers numerous advantages, including exceptional toughness, high strength, and superior electrical properties. Its ability to withstand extreme temperatures (up to 155°C) ensures the wires operate effectively in a variety of harsh environments. ETFE is also renowned for its excellent resistance to chemicals and UV radiation, further enhancing its durability and longevity.
Characteristics Test Standard Test result
Min. insulation thickness Mm(min)0.11 0.120 0.127 0.120
Pitch 12±2 ok ok ok
Single wire Diameter 0.24±0.003MM 0.239 0.240 0.240
Overall dimension / 1.03 1.05 1.05
Conductor Resistance Max. 59.18Ω/KM 56.04 56.12 56.10
Breakdown voltage Min. 6KV(min) 15.2 14.4 14.8
Solder ability 400℃ 3Secs OK OK OK
Conclusion Qualified
Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire 0
We have a professional team to provide technical support. Custom specifications available upon request.
