Rumah > Produk> Kawat Tembaga Litz> ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications

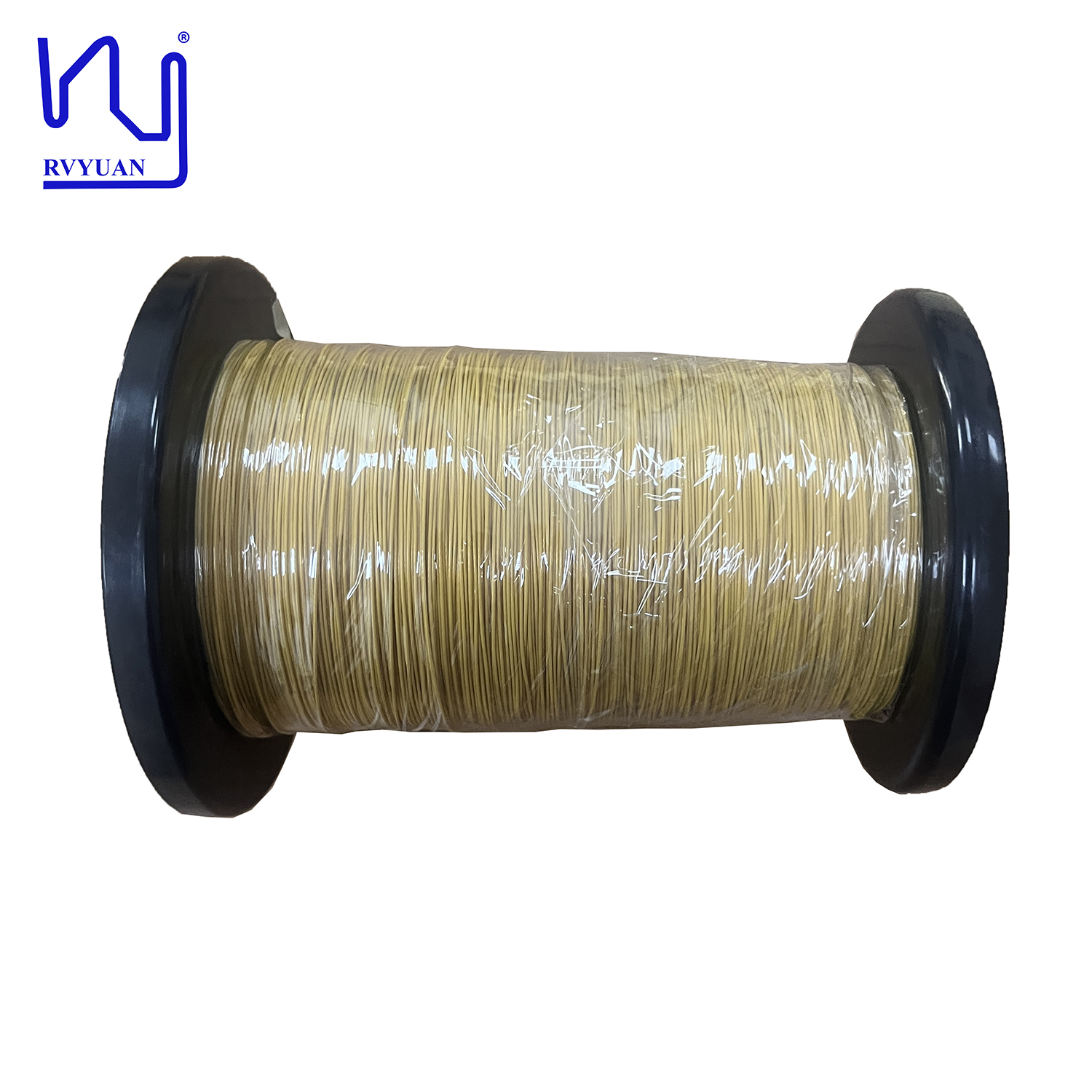

ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications

ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications
ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications
ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications
Informasi Dasar
Tempat asal: CINA
Nama merek: RVYUAN
Sertifikasi: UL/ISO9001/ISO14001/RoHS/Reach
Nomor model: 0,24mm
Kuantitas min Order: 1000 meteran
Harga: negotiable
Kemasan rincian: Karton
Waktu pengiriman: 7 hari
Syarat-syarat pembayaran: T/t/paypal
Menyediakan kemampuan: 1Ton/Bulan
Harga terbaik Hubungi sekarang
Informasi Detail
Nama Produk: Insulasi ETFE Litz Wire 0.24mmx7 Strands Tiw Untuk Aplikasi Frekuensi Tinggi Peringkat termal: 155
Diameter kawat tunggal: 0,24mm Bahan konduktor: Tembaga
Jumlah untaian: 7 Insulasi: ETFE
Menyoroti:

ETFE insulated Litz wire

,

high frequency Litz wire

,

0.24mmx7 strands TIW wire

Deskripsi Produk

ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications
Extruded ETFE litz wire is a high-performance cabling solution designed for demanding electrical applications, particularly those operating in high-frequency environments. This litz wire has a single strand diameter of 0.24 mm and is constructed from seven strands twisted together. This unique construction enhances flexibility and reduces skin-effect losses, making it ideal for high-frequency applications.
Technical Specifications
Characteristics Test Standard Test result
Min. insulation thickness Mm(min)0.11 0.120 0.127 0.120
Pitch 12±2 ok ok ok
Single wire Diameter 0.24±0.003MM 0.239 0.240 0.240
Overall dimension / 1.03 1.05 1.05
Conductor Resistance Max. 59.18Ω/KM 56.04 56.12 56.10
Breakdown voltage Min. 6KV(min) 15.2 14.4 14.8
Solder ability 400℃ 3Secs OK OK OK
Conclusion Qualified
ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications 0
We have a professional team to provide technical support. Custom specifications available upon request.

Label:

disajikan kawat litz,

kawat litz persegi panjang,

kawat litz solder
