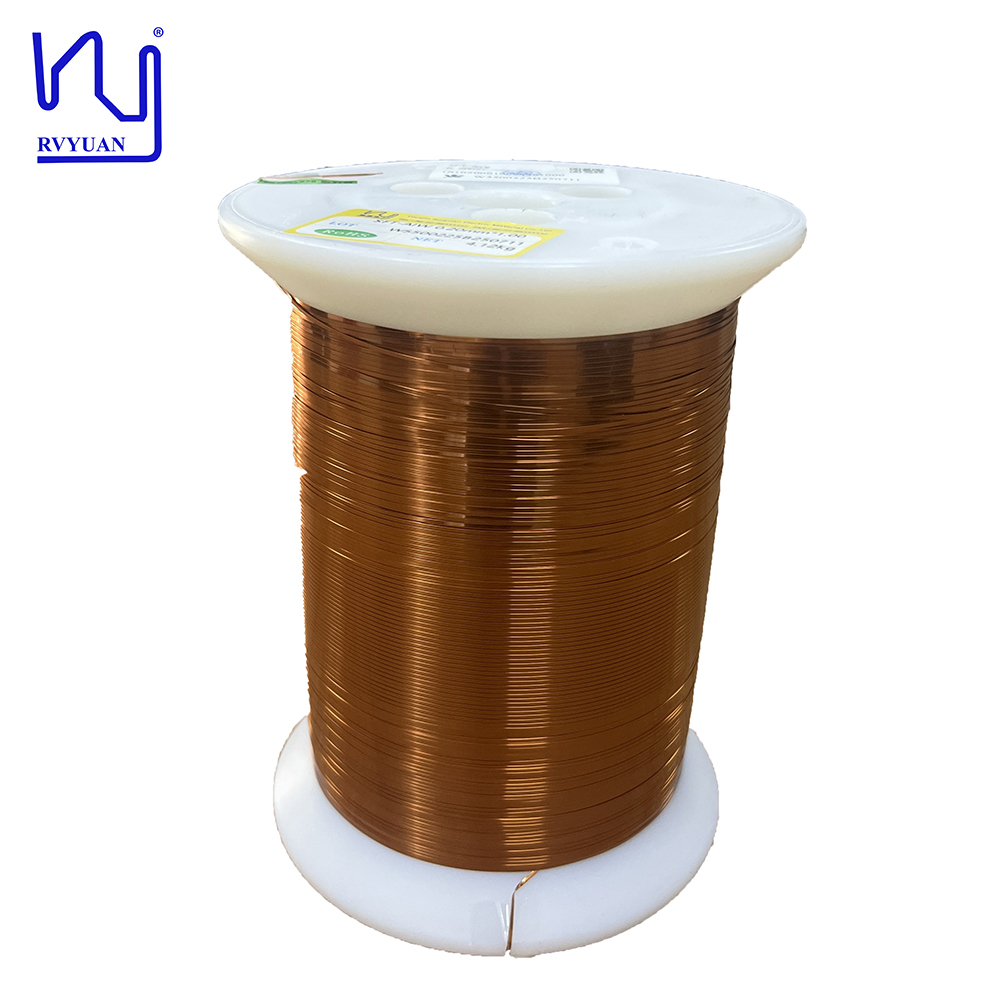

UL AIW220 0.2mmx1.0mm Enameled Flat Copper Wire for Motors

Informasi Dasar
Tempat asal: Cina
Nama merek: RVYUAN
Sertifikasi: IEC/NEMA/JIS/RoHS/ISO
Nomor model: Kelas 220
Kuantitas min Order: 10kg
Harga: negotiable
Kemasan rincian: Kumparan dengan karton
Waktu pengiriman: 2-15 hari kerja
Syarat-syarat pembayaran: T/T/PAYPAL
Menyediakan kemampuan: Penuhi permintaan Anda
Informasi Detail
Bentuk: Bentuk persegi panjang Dimensi Konduktor (Lebar): 1.0mm
Ketebalan Lapisan Isolasi Unilateral (Lebar): 0,2 mm Aplikasi: Motor, transformator
Kelas termal: 220 Kata kunci: Sertifikat UL AIW220 0.2mmx1.0mm Kawat Tembaga Datar Berenamel Super Tipis Untuk Elektronik
Peringkat termal: 220 Lapisan enamel: AIW
Menyoroti:

enameled flat copper wire

,

UL AIW220 motor wire

,

0.2mmx1.0mm rectangular copper wire


Deskripsi Produk

UL Certificate AIW220 0.2mmx1.0mm Super Thin Enameled Flat Copper Wire For Electronics
Product Specifications
Attribute Value
Shape Rectangular
Conductor Dimension (Width) 1.0mm
Unilateral Insulation Layer Thickness (Width) 0.2mm
Applications Motor, transformer
Thermal Grade 220
Thermal rating 220
Enamel coating AIW
Product Description
This custom-made ultra-fine enameled flat copper wire is designed to meet the evolving demands of modern technology. Engineered with precision and heat resistant up to 220 degrees Celsius, this wire provides exceptional performance for precision instruments and equipment.
Technical Specifications
Item Conductor dimension Insulation thickness Overall dimension Dielectric breakdown voltage Conductor resistance
T W T W T W kv Ω/km 20℃
Unit mm mm mm mm mm mm kv Ω/km 20℃
SPEC AVE 0.200 1.000 0.025 0.0025 / /
Max 0.209 1.060 0.040 0.004 0.250 1.100 96.380
Min 0.191 0.940 0.010 0.010 0.700
Result OK OK OK OK OK OK OK OK
UL AIW220 0.2mmx1.0mm Enameled Flat Copper Wire for Motors 0
