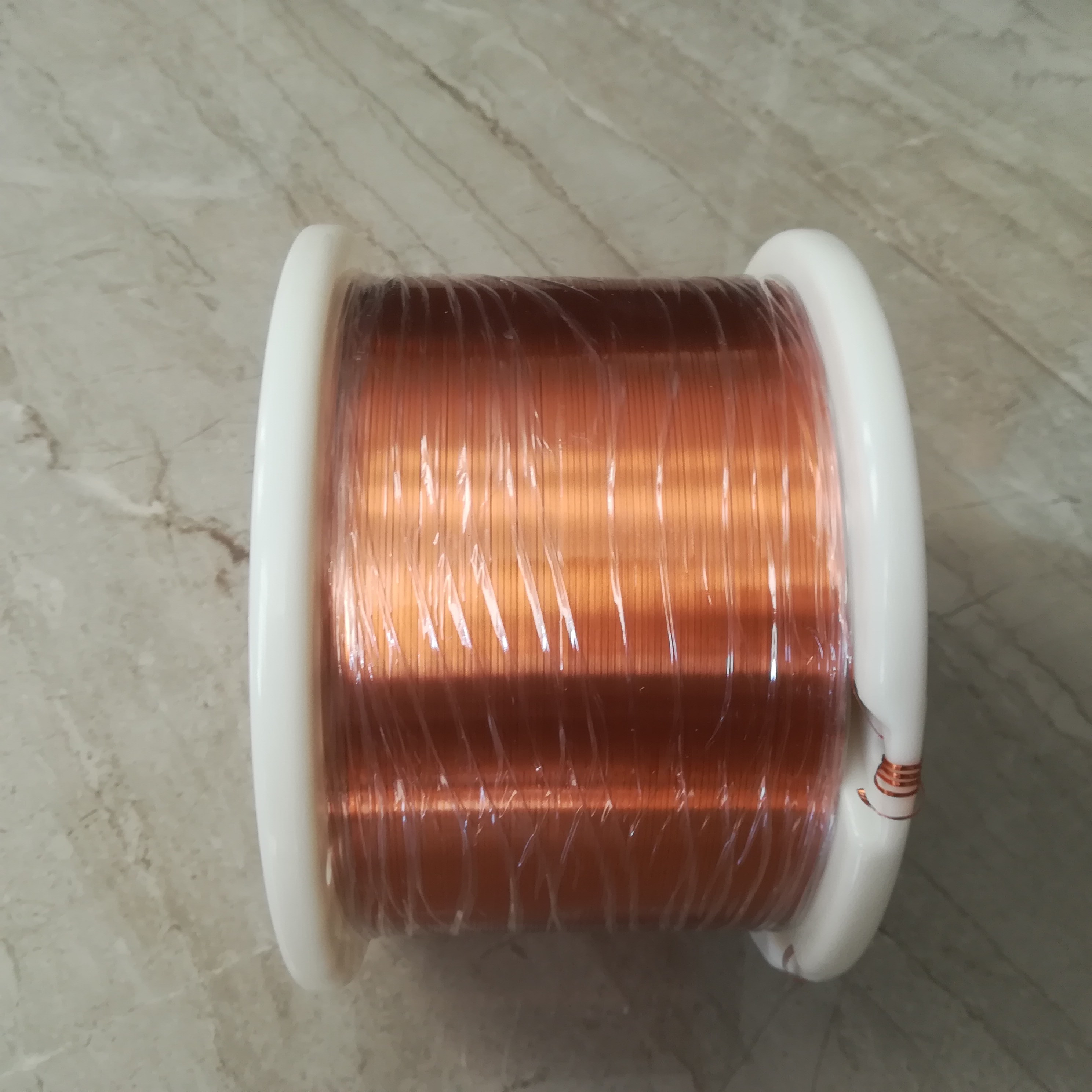

Rectangular AIW 220 9.0x0.7mm Enameled Flat Copper Wire For Motor Windings

Informasi Dasar

Tempat asal:	Cina
Nama merek:	RVYUAN
Sertifikasi:	IEC/NEMA/JIS/RoHS/ISO
Nomor model:	AIW220

Kuantitas min Order:	10kg
Harga:	negotiable
Kemasan rincian:	Kumparan dengan karton
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	T/T, PayPal
Menyediakan kemampuan:	Penuhi permintaan Anda

Harga terbaik Hubungi sekarang

Informasi Detail

Shape:	Rectangular	Width of conductor:	9.0mm
Unilateral Insulation Layer Thickness (Width):	0.025mm	Thickness of conductor:	0.7mm
Applications:	Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire for Vehicles	Thermal Grade:	220
Key word:	Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire for Vehicles
Menyoroti:	0.7mm Rectangular Copper Wire , AIW 220 Rectangular Copper Wire , Motor Windings Rectangular Copper Wire

Deskripsi Produk

Rectangular Wire AIW 220 9.0x0.7mm Enameled Flat Copper Wire for Motor Windings

we know that every project is unique, so we offer custom options to tailor our enameled rectangular copper wire to your specific needs. Our professional team is ready to assist you in selecting the right specifications to ensure that the product you receive not only meets your expectations, but even exceeds them. Experience the reliability and performance of Ruiyuan enameled rectangular copper wire now and take your project to new heights.

Conductor Dimension(mm)		Thickness of single insulation(mm)	Overall Dimension(mm)		Max. Conductor Resistance 20℃(Ω/km)	Breakdown voltage(kv)
Width	Thickness		Width	Thickness
9.000±0.08	0.700±0.03	0.025±0.015	Max. 9.10	Max.0.78	2.978	0.7 Min
